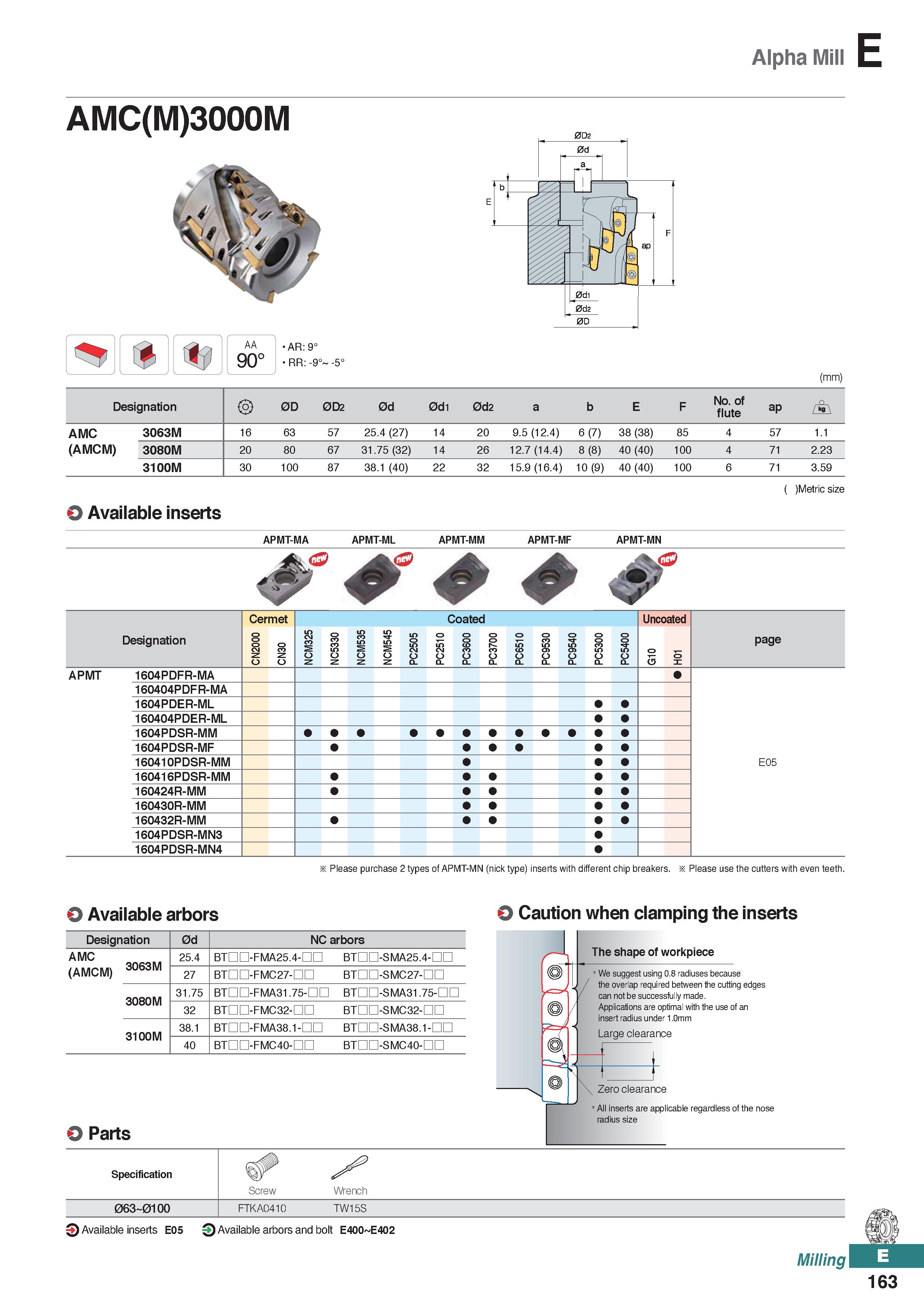

Alpha Mill E AMC(M)3000M AA 90° AR:9° RR: -9° -5° (mm) Designation 0D 0D2 0d 0d1 0d2 a b E F No. of flute ap pi\ AMC 3063M 16 63 57 25.4 (27) 14 20 9.5 (12.4) 6 (7) 38 (38) 85 4 57 1.1 (AMCM) 3080M 20 80 67 31.75 (32) 14 26 12.7 (14.4) 8 (8) 40 (40) 100 4 71 2.23 3100M 30 100 87 38.1 (40) 22 32 15.9 (16.4) 10 (9) 40 (40) 100 6 71 3.59 ( (Metric size O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 SfrSWON SCSN0N PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o 5 01 APMT 1604PDFR-MA 160404PDFR-MA 1604PDER-ML 160404PDER-ML 1604PDSR-MM 1604PDSR-MF 160410PDSR-MM E05 160416PDSR-MM 160424R-MM 160430R-MM 160432R-MM 1604PDSR-MN3 1604PDSR-MN4 Please purchase 2 types of APMT-MN (nick type) inserts with different chip breakers. Please use the cutters with even teeth. O Available arbors O Caution when clamping the inserts Designation 0d NC arbors AMC 3063M 25.4 BTDD-FMA25.4-nn BTHD-SMA25.4-HD (AMCM) 27 BTDD-FMC27-nn BTHD-SMC27-HD 3080M 31.75 BTDD-FMA31.75-nn BTHD-SMA31.75-DD 32 BTDD-FMC32-nn BTHD-SMC32-HD 3100M 38.1 BTDD-FMA38.1-nn BTHD-SMA38.1-HD 40 BTDD-FMC40-nn BTHD-SMC40-HD The shape of workpiece ’ We suggest using 0.8 radiuses because the overlap required between the cutting edges can not be successfully made. Applications are optimal with the use of an insert radius under 1.0mm Large clearance O Parts Zero clearance All inserts are applicable regardless of the nose radius size Specification Screw Wrench 063 01OO FTKA0410 TW15S Availableinserts E05 0Availablearborsandbolt E400 E402 Milling 163
