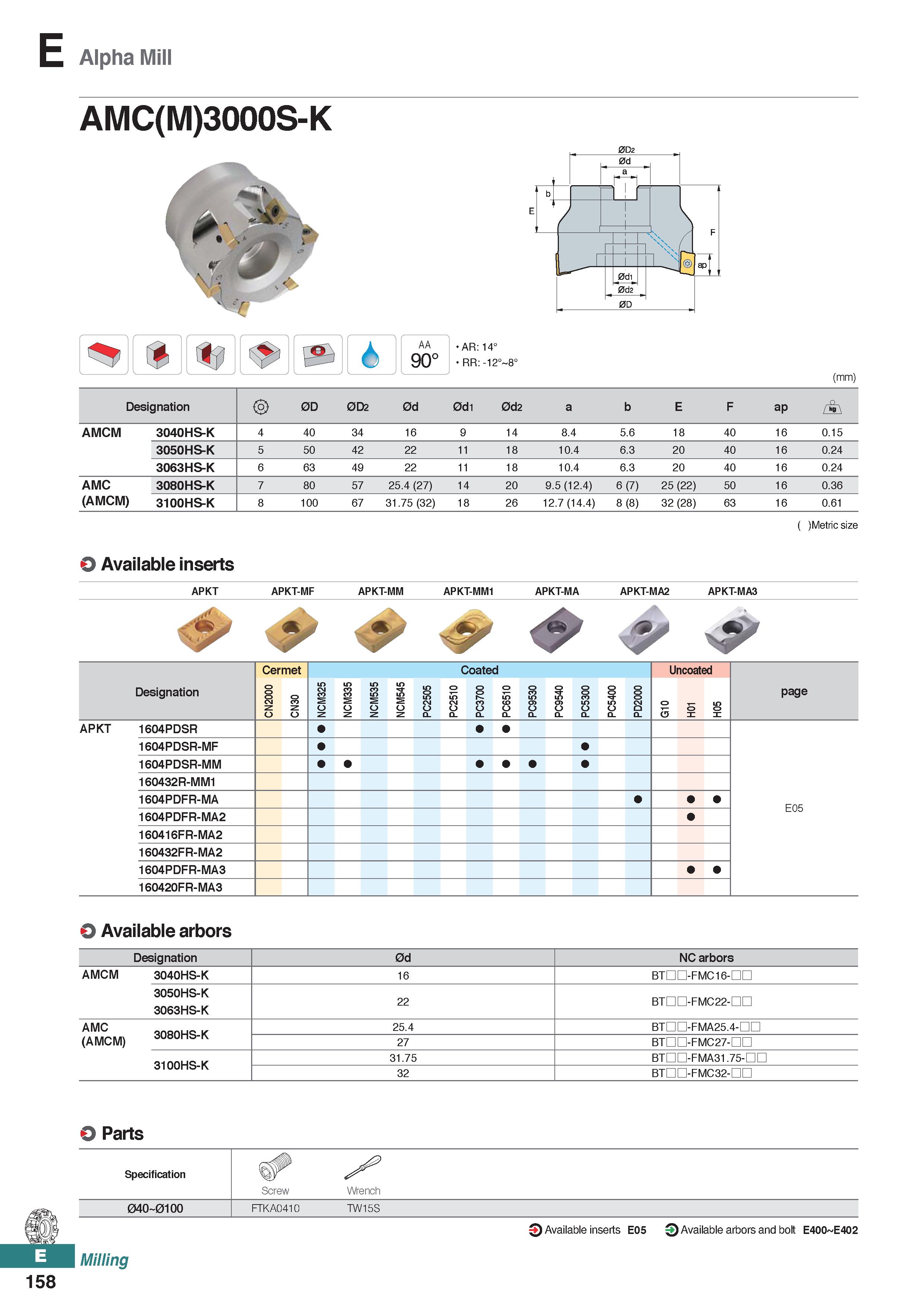

E Alpha Mill AMC(M)3000S-K AA 90° AR: 14° RR:-12°- (mm) Designation 2> 0D 0D2 0d 0d1 0d2 a b E F ap AMCM 3040HS-K 4 40 34 16 9 14 8.4 5.6 18 40 16 0.15 3050HS-K 5 50 42 22 11 18 10.4 6.3 20 40 16 0.24 3063HS-K 6 63 49 22 11 18 10.4 6.3 20 40 16 0.24 AMC 3080HS-K 7 80 57 25.4 (27) 14 20 9.5 (12.4) 6 (7) 25 (22) 50 16 0.36 (AMCM) 3100HS-K 8 100 67 31.75 (32) 18 26 12.7 (14.4) 8 (8) 32 (28) 63 16 0.61 ( (Metricsize O Available inserts APKT APKT-MF APKT-MM APKT-MM1 APKT-MA APKT-MA2 APKT-MA3 Cermet Coated Uncoated Designation 0 0 CO NN 5 2 3 s C N 5 3 3 s C z 5 3 5 M C z 5 5 M C N 5 0 5 2 C CL 0 51 2 C P O 175 36 CC PP 0 3 5 9 C CL 0 5 9 C P 0 0 3 5 C P 0 0 5 C CL 0 0 0 2 Q CL o m Oil page APKT 1604PDSR 1604PDSR-MF 1604PDSR-MM 160432R-MM1 1604PDFR-MA E05 1604PDFR-MA2 160416FR-MA2 160432FR-MA2 1604PDFR-MA3 160420FR-MA3 O Available arbors Designation 0d NC arbors AMCM 3040HS-K 16 BTDD-FMC16-nn 3050HS-K 3063HS-K 22 BTDD-FMC22-DC AMC 3080HS-K 25.4 BTDD-FMA25.4-nn (AMCM) 27 BTDD-FMC27-nn 3100HS-K 31.75 BTDD-FMA31.75-nn 32 BTDD-FMC32-nn O Parts Specification Screw Wrench 04O 01OO FTKA0410 TW15S Milling Availableinserts E05 0Availablearborsandbolt E400 E402 158
