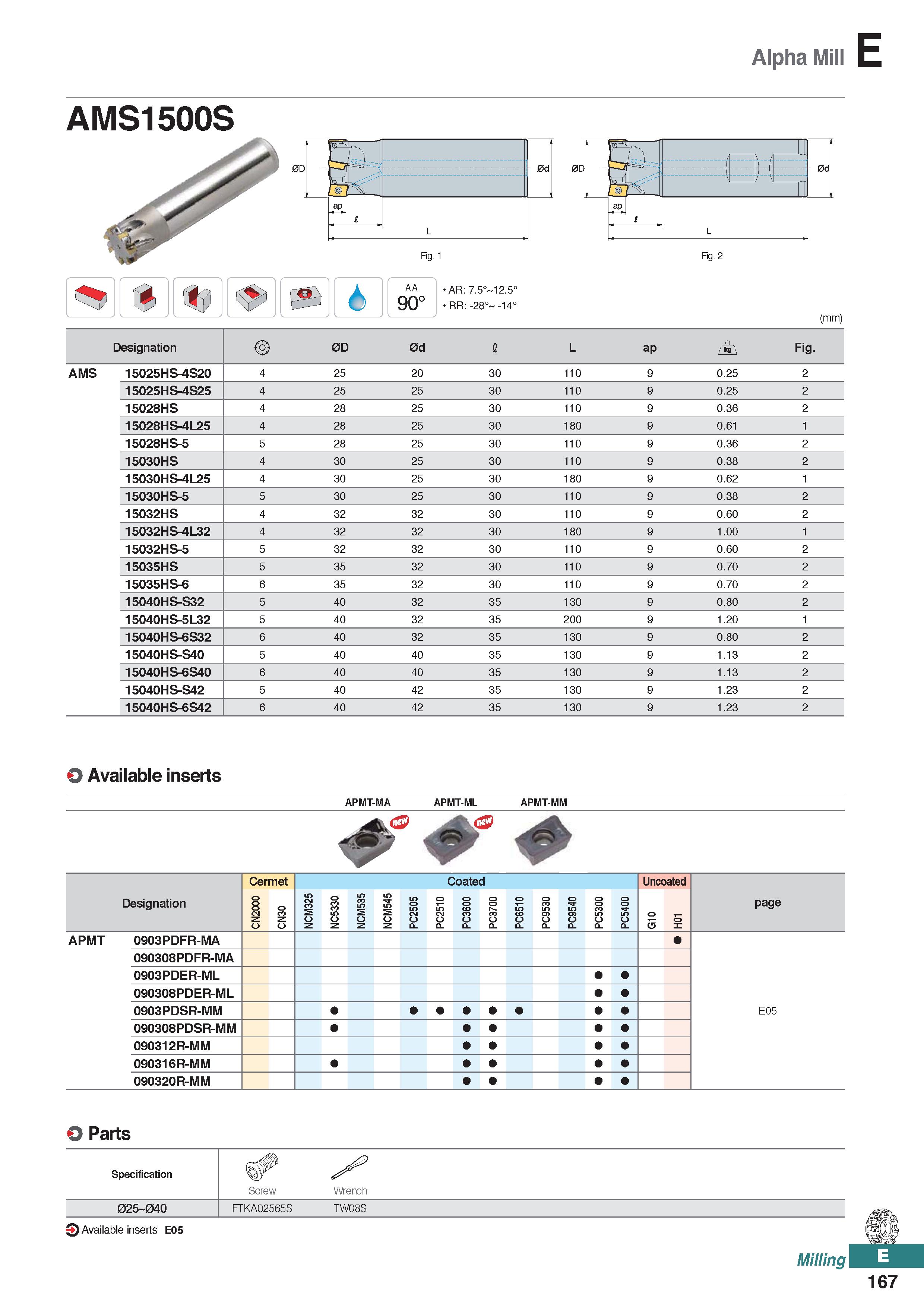

625 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.E167

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. E167 0625 Lab2u

Alpha Mill E AMS1500S - 0d ap I L Fig. 1 6 AA 90° AR: 7.5° 12.5° RR: -28° -14° Fig. 2 0d (mm) Designation 0D 0d 1 L ap / \ Fig. AMS 15025HS-4S20 4 25 20 30 110 9 0.25 2 15025HS-4S25 4 25 25 30 110 9 0.25 2 15028HS 4 28 25 30 110 9 0.36 2 15028HS-4L25 4 28 25 30 180 9 0.61 1 15028HS-5 5 28 25 30 110 9 0.36 2 15030HS 4 30 25 30 110 9 0.38 2 15030HS-4L25 4 30 25 30 180 9 0.62 1 15030HS-5 5 30 25 30 110 9 0.38 2 15032HS 4 32 32 30 110 9 0.60 2 15032HS-4L32 4 32 32 30 180 9 1.00 1 15032HS-5 5 32 32 30 110 9 0.60 2 15035HS 5 35 32 30 110 9 0.70 2 15035HS-6 6 35 32 30 110 9 0.70 2 15040HS-S32 5 40 32 35 130 9 0.80 2 15040HS-5L32 5 40 32 35 200 9 1.20 1 15040HS-6S32 6 40 32 35 130 9 0.80 2 15040HS-S40 5 40 40 35 130 9 1.13 2 15040HS-6S40 6 40 40 35 130 9 1.13 2 15040HS-S42 5 40 42 35 130 9 1.23 2 15040HS-6S42 6 40 42 35 130 9 1.23 2 O Available inserts APMT-MA APMT-ML APMT-MM W Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 O 5 01 X APMT 0903PDFR-MA 090308PDFR-MA 0903PDER-ML 090308PDER-ML 0903PDSR-MM E05 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM O Parts Specification Screw Wrench 025 04O FTKA02565S TW08S 9 Available inserts E05 Milling 167
