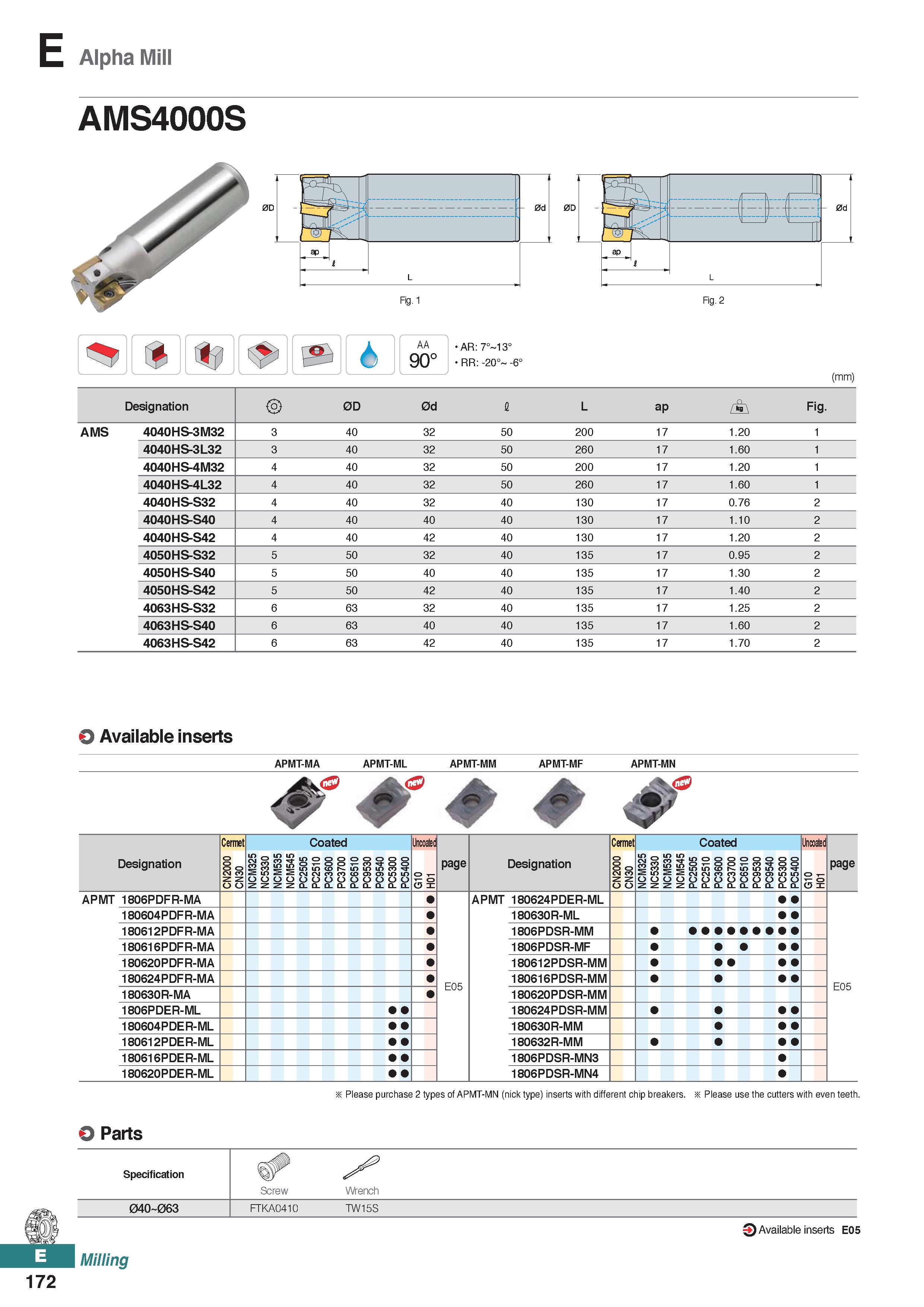

E Alpha Mill AMS4000S 6 AA 90° AR: 7° 13° RR: -20° -6° (mm) Designation 0D 0d 1 L ap Fig. AMS 4040HS-3M32 3 40 32 50 200 17 1.20 1 4040HS-3L32 3 40 32 50 260 17 1.60 1 4040HS-4M32 4 40 32 50 200 17 1.20 1 4040HS-4L32 4 40 32 50 260 17 1.60 1 4040HS-S32 4 40 32 40 130 17 0.76 2 4040HS-S40 4 40 40 40 130 17 1.10 2 4040HS-S42 4 40 42 40 130 17 1.20 2 4050HS-S32 5 50 32 40 135 17 0.95 2 4050HS-S40 5 50 40 40 135 17 1.30 2 4050HS-S42 5 50 42 40 135 17 1.40 2 4063HS-S32 6 63 32 40 135 17 1.25 2 4063HS-S40 6 63 40 40 135 17 1.60 2 4063HS-S42 6 63 42 40 135 17 1.70 2 Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Cermet Coated Uncoatec Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o 5 S page Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 0 0 7 3 C CL. PC6510 PC9530 PC9540 PC5300 PC5400 o 5 S page APMT 1806PDFR-MA APMT 180624PDER-ML 180604PDFR-MA 180630R-ML 180612PDFR-MA 1806PDSR-MM 180616PDFR-MA 1806PDSR-MF 180620PDFR-MA 180612PDSR-MM 180624PDFR-MA E05 180616PDSR-MM E05 180630R-MA 180620PDSR-MM 1806PDER-ML 180624PDSR-MM 180604PDER-ML 180630R-MM 180612PDER-ML 180632R-MM 180616PDER-ML 1806PDSR-MN3 180620PDER-ML 1806PDSR-MN4 Please purchase 2 types of APMT-MN (nick type) inserts with different chip breakers. Please use the cutters with even teeth. Parts Specification Screw Wrench 04O 063 FTKA0410 TW15S 9 Available inserts E05 Milling 172
