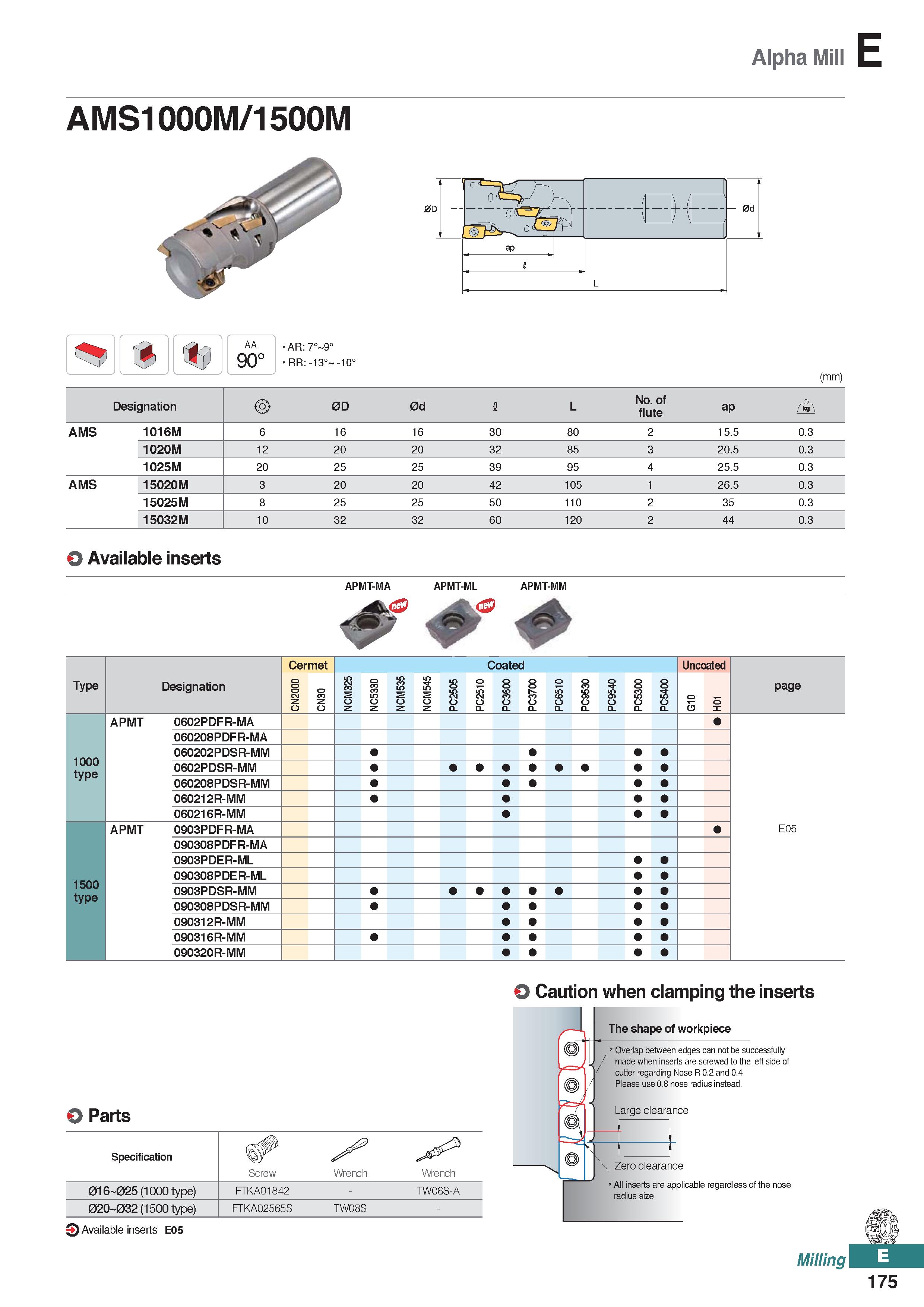

Alpha Mill E AMS1000M/1500M AA 90° AR:7° 9° RR:-13° -10° (mm) Designation 0D 0d 1 L No. of flute ap A AMS 1016M 6 16 16 30 80 2 15.5 0.3 1020M 12 20 20 32 85 3 20.5 0.3 1025M 20 25 25 39 95 4 25.5 0.3 AMS 15020M 3 20 20 42 105 1 26.5 0.3 15025M 8 25 25 50 110 2 35 0.3 15032M 10 32 32 60 120 2 44 0.3 O Available inserts APMT-MA APMT-ML APMT-MM Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o G1 01 I page 1000 type APMT 0602PDFR-MA E05 060208PDFR-MA 060202PDSR-MM 0602PDSR-MM 060208PDSR-MM 060212R-MM 060216R-MM 1500 type APMT 0903PDFR-MA 090308PDFR-MA 0903PDER-ML 090308PDER-ML 0903PDSR-MM 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM O Parts O Caution when clamping the inserts Specification Screw Wrench Wrench 016 025 (1000 type) FTKA01842 - TW06S-A 02O 032 (1500 type) FIKA02565S TW08S - 9 Available inserts E05 The shape of workpiece Overlap between edges can not be successfully made when inserts are screwed to the left side of cutter regarding Nose R 0.2 and 0.4 Please use 0.8 nose radius instead. Large clearance Zero clearance ’ All inserts are applicable regardless of the nose radius size Milling 175
