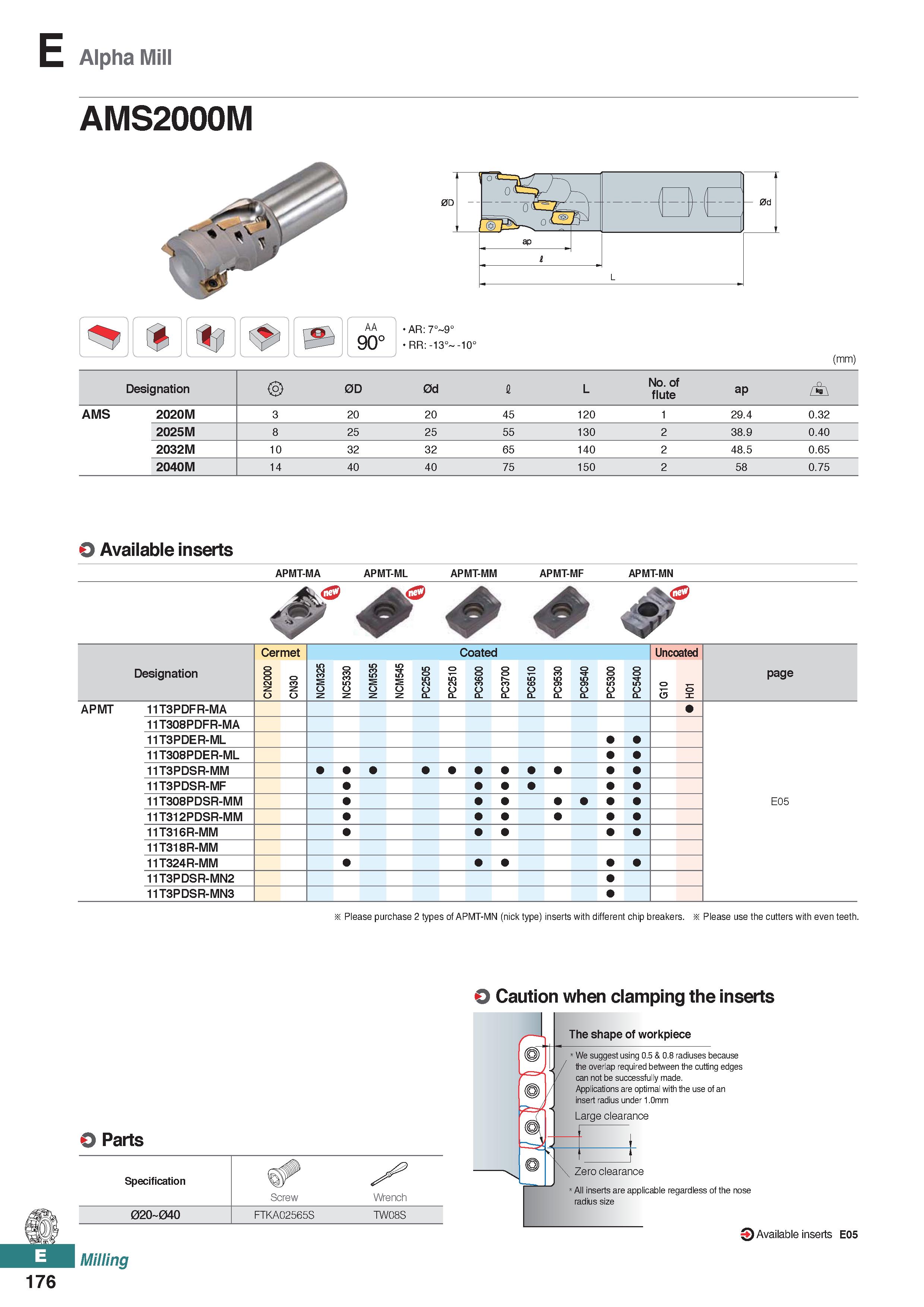

634 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.E176

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. E176 0634 Lab2u

E Alpha Mill AMS2000M % 1 (mm) Designation 2> 0D 0d 1 L No. of flute ap /i\ AMS 2020M 3 20 20 45 120 1 29.4 0.32 2025M 8 25 25 55 130 2 38.9 0.40 2032M 10 32 32 65 140 2 48.5 0.65 2040M 14 40 40 75 150 2 58 0.75 O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN 0 & W Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 O G1 01 X APMT 11T3PDFR-MA 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM E05 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM 11T3PDSR-MN2 11T3PDSR-MN3 Pleasepurchase2typesof APMT-MN (nicktype) inserts with different chip breakers. Please usethecutterswitheventeeth. O Caution when clamping the inserts The shape of workpiece O Parts Specification Screw Wrench 02O 04O FTKA02565S TW08S Milling We suggest using 0.5 & 0.8 radiuses because the overlap required between the cutting edges can not be successfully made. Applications are optimal with the use of an insert radius under 1.0mm Large clearance Zero clearance All inserts are applicable regardless of the nose radius size Available inserts E05 176
