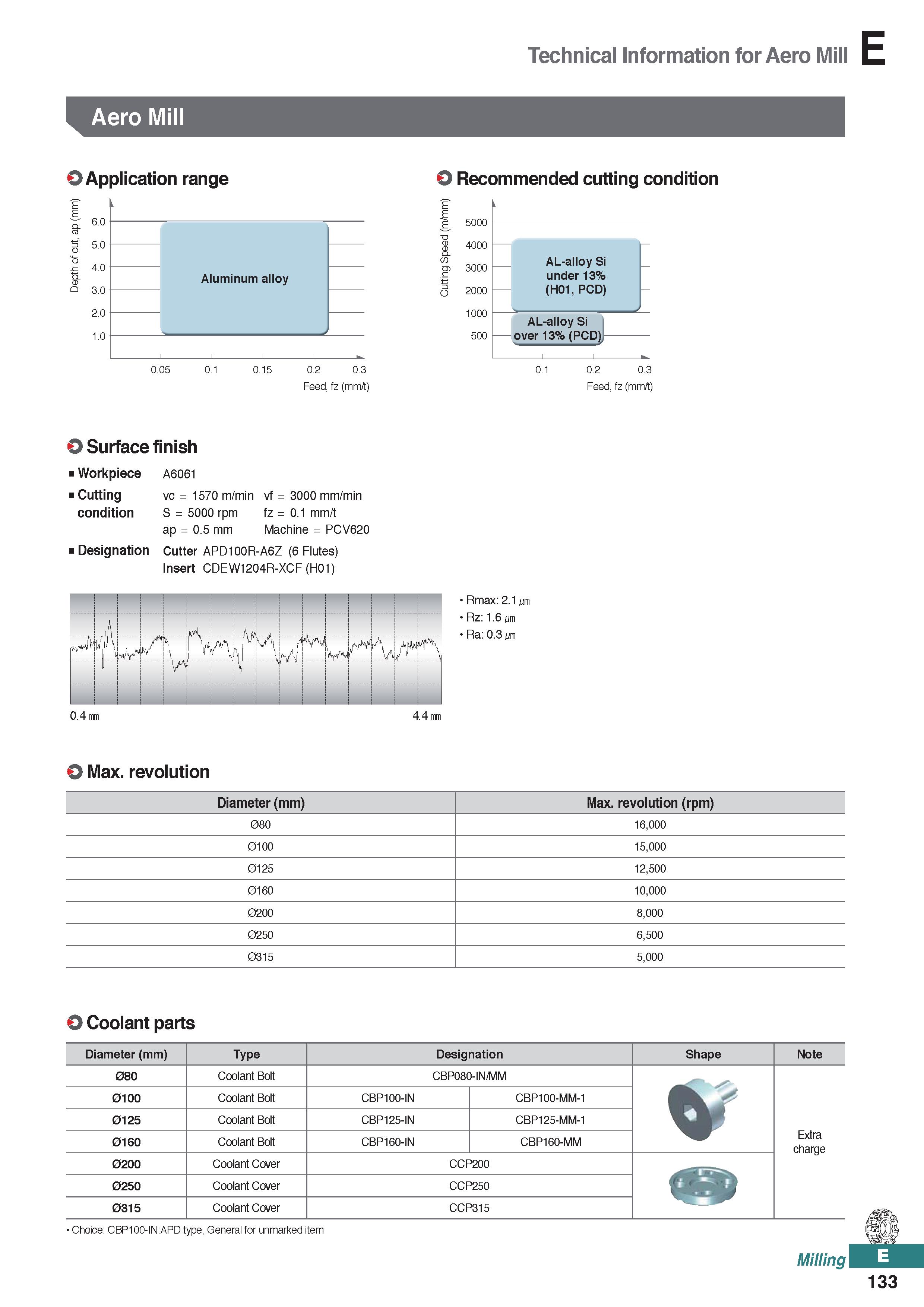

Technical Information for Aero Mill Aero Mill O Application range 6.0 5.0 4.0 3.0 2.0 1.0 Aluminum alloy 0.05 0.1 0.15 0.2 0.3 Feed, fz (mm/t) O Recommended cutting condition pe S 5000 4000 3000 2000 1000 500 AL-alloy Si under 13% (H01, PCD) AL-alloy Si over 13% (PCD) 0.1 0.2 0.3 Feed, fz (mm/t) O Surface finish Workpiece A6061 Cutting vc = 1570 m/min vf = 3000 mm/min condition S = 5000 rpm fz = 0.1 mm/t ap = 0.5 mm Machine = PCV620 Designation Cutter APD100R-A6Z (6 Flutes) Insert CDEW1204R-XCF (H01) Rmax: 2.1 y Rz: 1.6 y Ra: 0.3 y O Max. revolution Diameter (mm) Max. revolution (rpm) 080 16,000 0100 15,000 0125 12,500 0160 10,000 0200 8,000 0250 6,500 0315 5,000 0 Coolant parts Diameter (mm) Type Designation Shape Note 080 Coolant Bolt CBP080-IN/MM - 0100 Coolant Bolt CBP100-IN CBP100-MM-1 0125 Coolant Bolt CBP125-IN CBP125-MM-1 w Extra charge 0160 Coolant Bolt CBP160-IN CBP160-MM 0200 Coolant Cover CCP200 0250 Coolant Cover CCP250 d B 0315 Coolant Cover CCP315 Choice: CBP100-IN:APD type, General for unmarked item Milling 133
