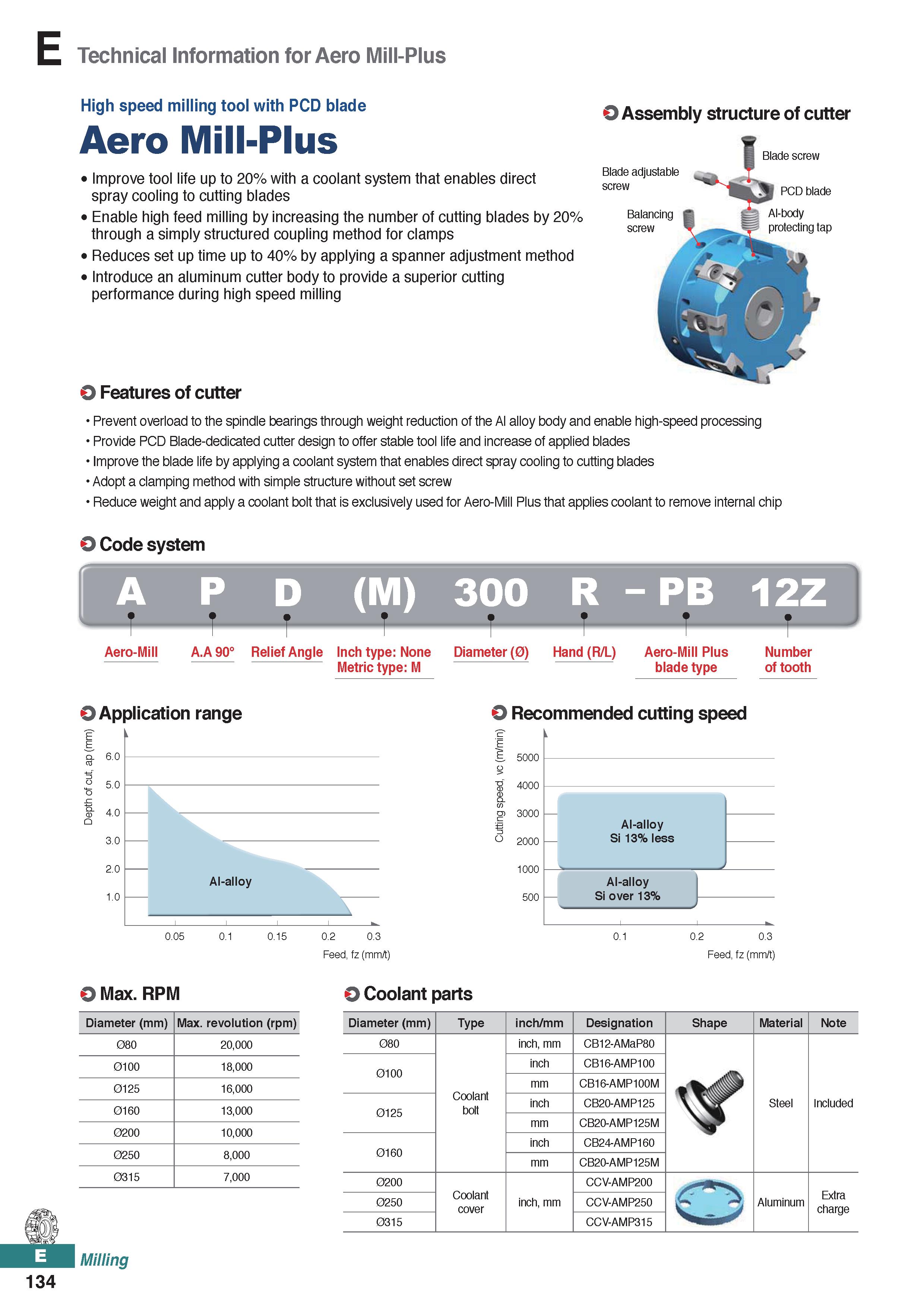

Technical Information for Aero Mill-Plus High speed milling tool with PCD blade Aero Mill-Plus Improve tool life up to 20% with a coolant system that enables direct spray cooling to cutting blades Enable high feed milling by increasing the number of cutting blades by 20% through a simply structured coupling method for clamps Reduces set up time up to 40% by applying a spanner adjustment method Introduce an aluminum cutter body to provide a superior cutting performance during high speed milling 9 Features of cutter Prevent overload to the spindle bearings through weight reduction of the Al alloy body and enable high-speed processing Provide PCD Blade-dedicated cutter design to offer stable tool life and increase of applied blades Improve the blade life by applying a coolant system that enables direct spray cooling to cutting blades Adopt a clamping method with simple structure without set screw Reduce weight and apply a coolant bolt that is exclusively used for Aero-Mill Plus that applies coolant to remove internal chip 9 Code system Aero-Mill A.A 90° Relief Angle Inch type: None Diameter (0) Hand (R/L) Aero-Mill Plus Number Metric type: M blade type of tooth 9 Assembly structure of cutter Blade adjustable screw Blade screw PCD blade j, Al-body protecting tap 9 Application range Feed, fz (mm/t) 9 Recommended cutting speed 5000 4000 g 3000 ° 2000 1000 500 0.2 0.3 Feed, fz (mm/t) 9 Max. RPM Diameter (mm) Max. revolution (rpm) 080 20,000 0100 18,000 0125 16,000 0160 13,000 0200 10,000 0250 8,000 0315 7,000 Milling 134 9 Coolant parts Diameter (mm) Type inch/mm Designation Shape Material Note 080 Coolant bolt inch, mm CB12-AMaP80 VT Steel Included 0100 inch CB16-AMP100 mm CB16-AMP100M 0125 inch CB20-AMP125 mm CB20-AMP125M 0160 inch CB24-AMP160 mm CB20-AMP125M 0200 Coolant cover inch, mm CCV-AMP200 if '- W Aluminum Extra charge 0250 CCV-AMP250 0315 CCV-AMP315
