590 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.E132

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. E132 0590 Lab2u

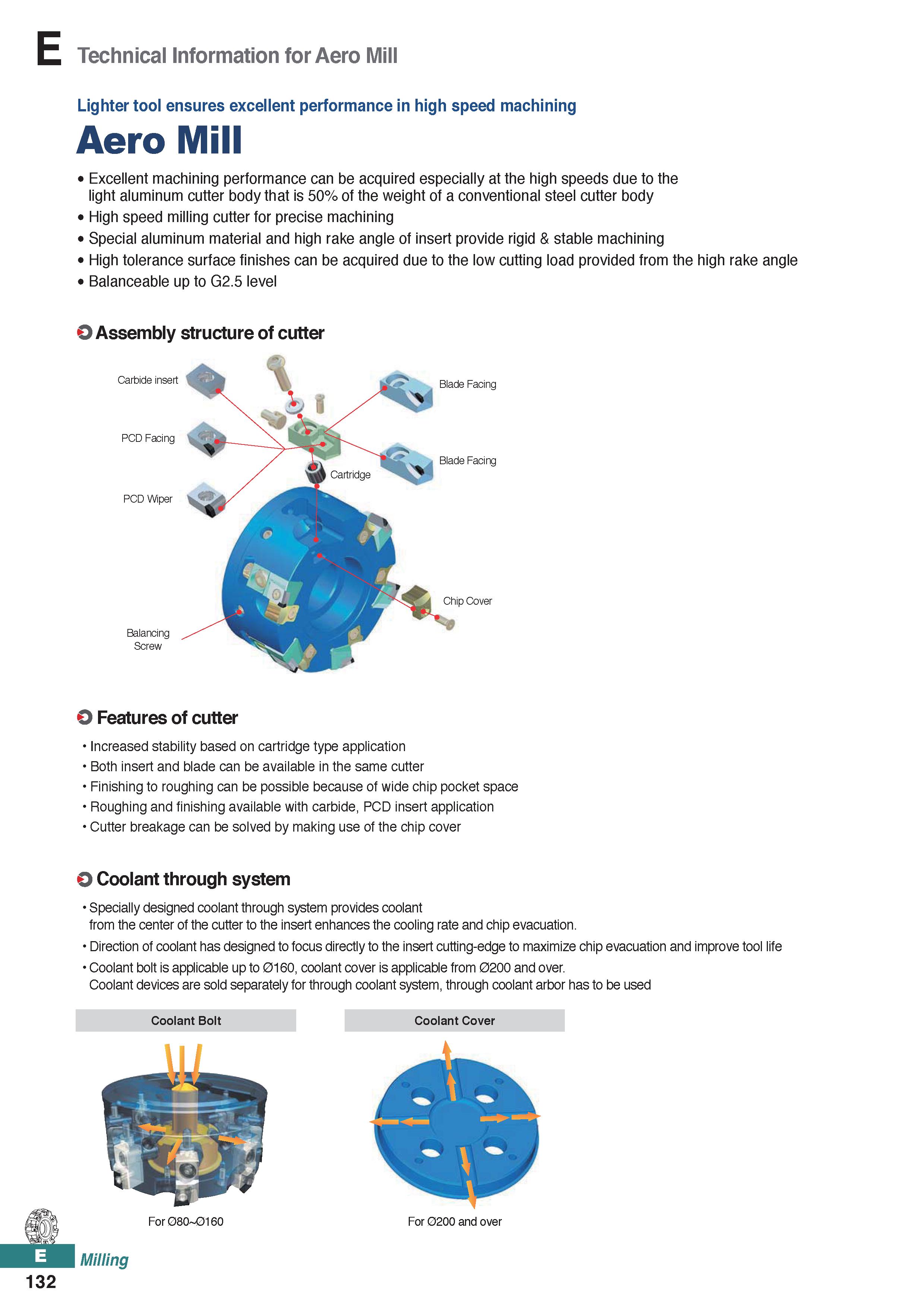

E Technical Information for Aero Mill Lighter tool ensures excellent performance in high speed machining Aero Mill Excellent machining performance can be acquired especially at the high speeds due to the light aluminum cutter body that is 50% of the weight of a conventional steel cutter body High speed milling cutter for precise machining Special aluminum material and high rake angle of insert provide rigid & stable machining High tolerance surface finishes can be acquired due to the low cutting load provided from the high rake angle Balanceable up to G2.5 level 9 Assembly structure of cutter O Features of cutter Increased stability based on cartridge type application Both insert and blade can be available in the same cutter Finishing to roughing can be possible because of wide chip pocket space Roughing and finishing available with carbide, PCD insert application Cutter breakage can be solved by making use of the chip cover O Coolant through system Specially designed coolant through system provides coolant from the center of the cutter to the insert enhances the cooling rate and chip evacuation. Direction of coolant has designed to focus directly to the insert cutting-edge to maximize chip evacuation and improve tool life Coolant bolt is applicable up to 0160, coolant cover is applicable from 0200 and over. Coolant devices are sold separately for through coolant system, through coolant arbor has to be used Coolant Bolt Coolant Cover For 080 0160 For 0200 and over Milling 132
