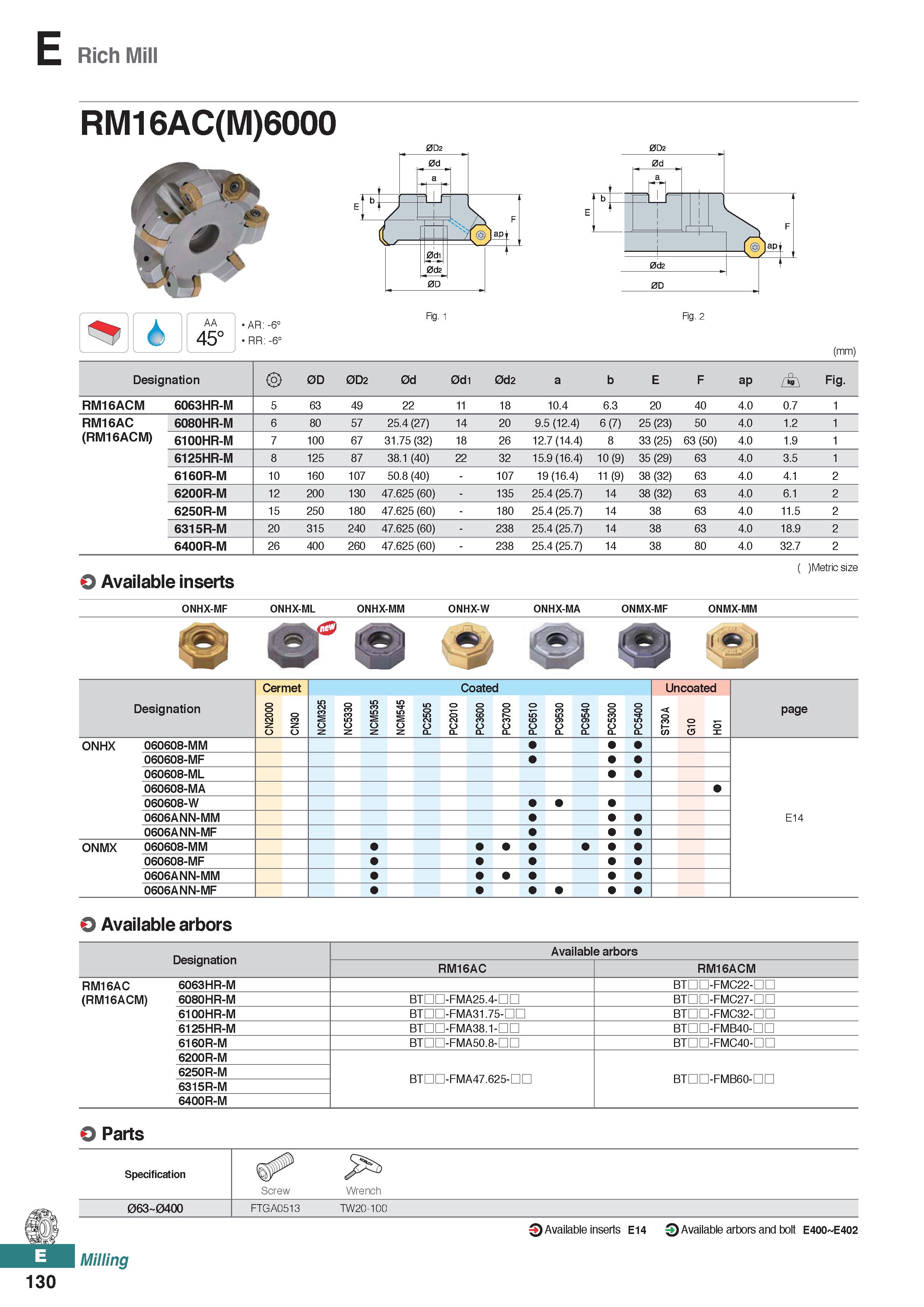

E Rich Mill RM16AC(M)6000 Fig. 1 Fig. 2 (mm) Designation 0D 0D2 0d 0d1 0d2 a b E F ap Fig. RM16ACM 6063HR-M 5 63 49 22 11 18 10.4 6.3 20 40 4.0 0.7 1 RM16AC 6080HR-M 6 80 57 25.4 (27) 14 20 9.5 (12.4) 6 (7) 25 (23) 50 4.0 1.2 1 (RM16ACM) 6100HR-M 7 100 67 31.75 (32) 18 26 12.7 (14.4) 8 33 (25) 63 (50) 4.0 1.9 1 6125HR-M 8 125 87 38.1 (40) 22 32 15.9 (16.4) 10 (9) 35 (29) 63 4.0 3.5 1 6160R-M 10 160 107 50.8 (40) - 107 19 (16.4) 11 (9) 38 (32) 63 4.0 4.1 2 6200R-M 12 200 130 47.625 (60) - 135 25.4 (25.7) 14 38 (32) 63 4.0 6.1 2 6250R-M 15 250 180 47.625 (60) - 180 25.4 (25.7) 14 38 63 4.0 11.5 2 6315R-M 20 315 240 47.625 (60) - 238 25.4 (25.7) 14 38 63 4.0 18.9 2 6400R-M 26 400 260 47.625 (60) - 238 25.4 (25.7) 14 38 80 4.0 32.7 2 O Available inserts ( )Metric size ONHX-MF ONHX-ML ONHX-MM ONHX-W ONHX-MA ONMX-MF ONMX-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 0 3 3 5 C N NCM535 NCM545 PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 ONHX 060608-MM 060608-MF 060608-ML 060608-MA 060608-W 0606ANN-MM E14 0606ANN-MF ONMX 060608-MM 060608-MF 0606ANN-MM 0606ANN-MF Available arbors Designation Available arbors RM16AC RM16ACM RM16AC 6063HR-M BTDD-FMC22-nn (RM16ACM) 6080HR-M BTHD-FMA25.4-DD BTDD-FMC27-nn 6100HR-M BTHD-FMA31.75-HD BTDD-FMC32-nn 6125HR-M BTHD-FMA38.1-DD BTDD-FMB40-nn 6160R-M BTHD-FMA50.8-DD BTDD-FMC40-nn 6200R-M BTDD-FMA47.625-nn BTDD-FMB60-DC 6250R-M 6315R-M 6400R-M O Parts Specification Screw Wrench 063 04OO FTGA0513 TW20-100 Milling Q Available inserts E14 O Available arbors and bolt E400 E402 130
