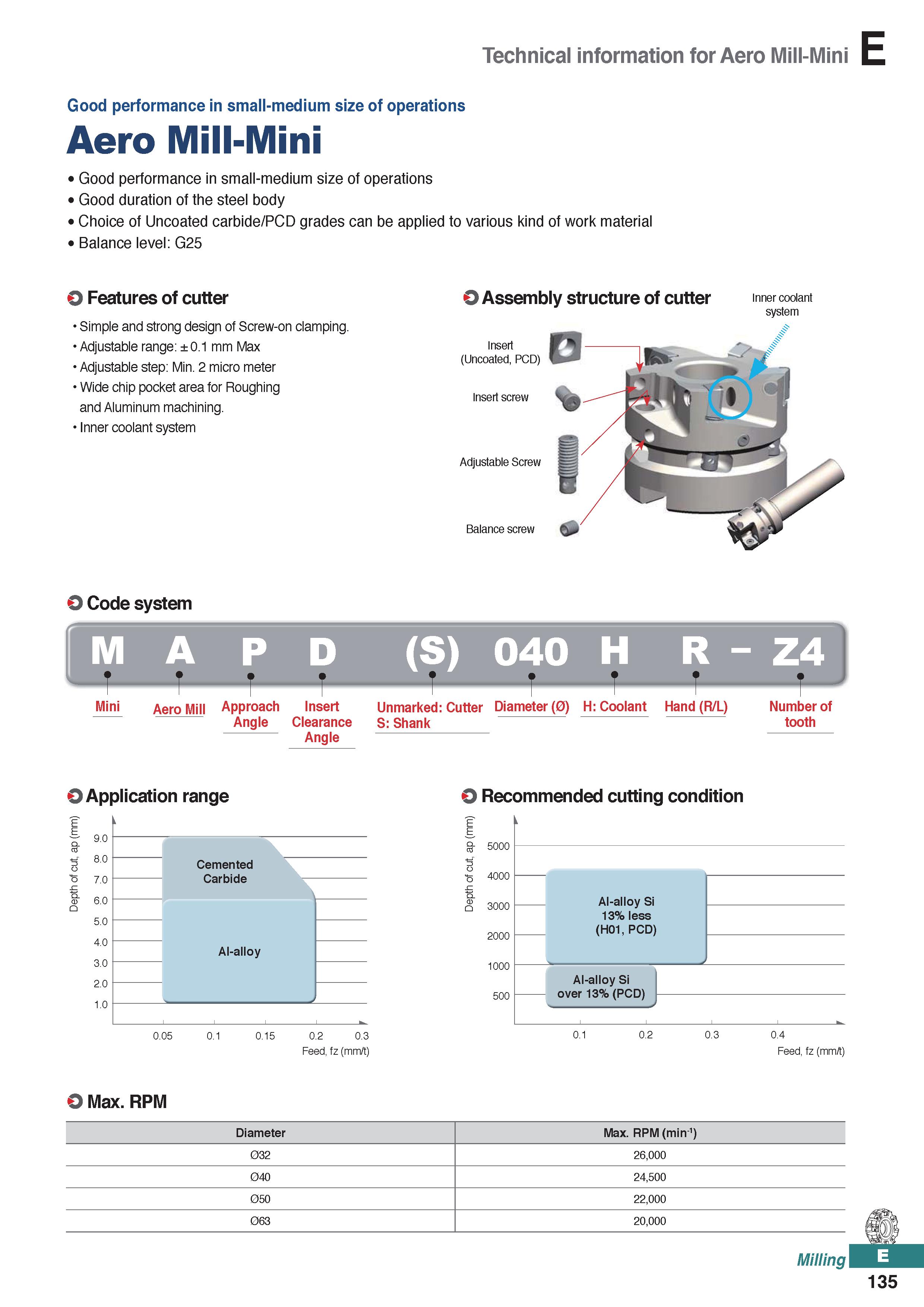

Technical information for Aero Mill-Mini Good performance in small-medium size of operations Aero Mill-Mini Good performance in small-medium size of operations Good duration of the steel body Choice of Uncoated carbide/PCD grades can be applied to various kind of work material Balance level: G25 O Features of cutter Simple and strong design of Screw-on clamping. Adjustable range: ± 0.1 mm Max Adjustable step: Min. 2 micro meter Wide chip pocket area for Roughing and Aluminum machining. Inner coolant system O Assembly structure of cutter a Se Inner coolant system Insert (Uncoated, PCD) Insert screw Adjustable Screw Balance screw O Code system M A (S) 040 H R - Z4 Mini Aero Mill Approach Insert Angle Clearance Angle Unmarked: Cutter Diameter (0) H: Coolant Hand (R/L) Number of S: Shank tooth O Application range 9.0 8.0 7.0 6.0 5.0 4.0 3.0 2.0 1.0 Cemented Carbide Al-alloy 0.05 0.1 0.15 0.2 0.3 Feed, fz (mm/t) O Recommended cutting condition 5000 4000 3000 2000 1000 500 Al-alloy Si 13% less (H01, PCD) Al-alloy Si over 13% (PCD) 0.1 0.2 0.3 0.4 Feed, fz (mm/t) O Max. RPM Diameter Max. RPM (min-1) 032 26,000 040 24,500 050 22,000 063 20,000 Milling 135
