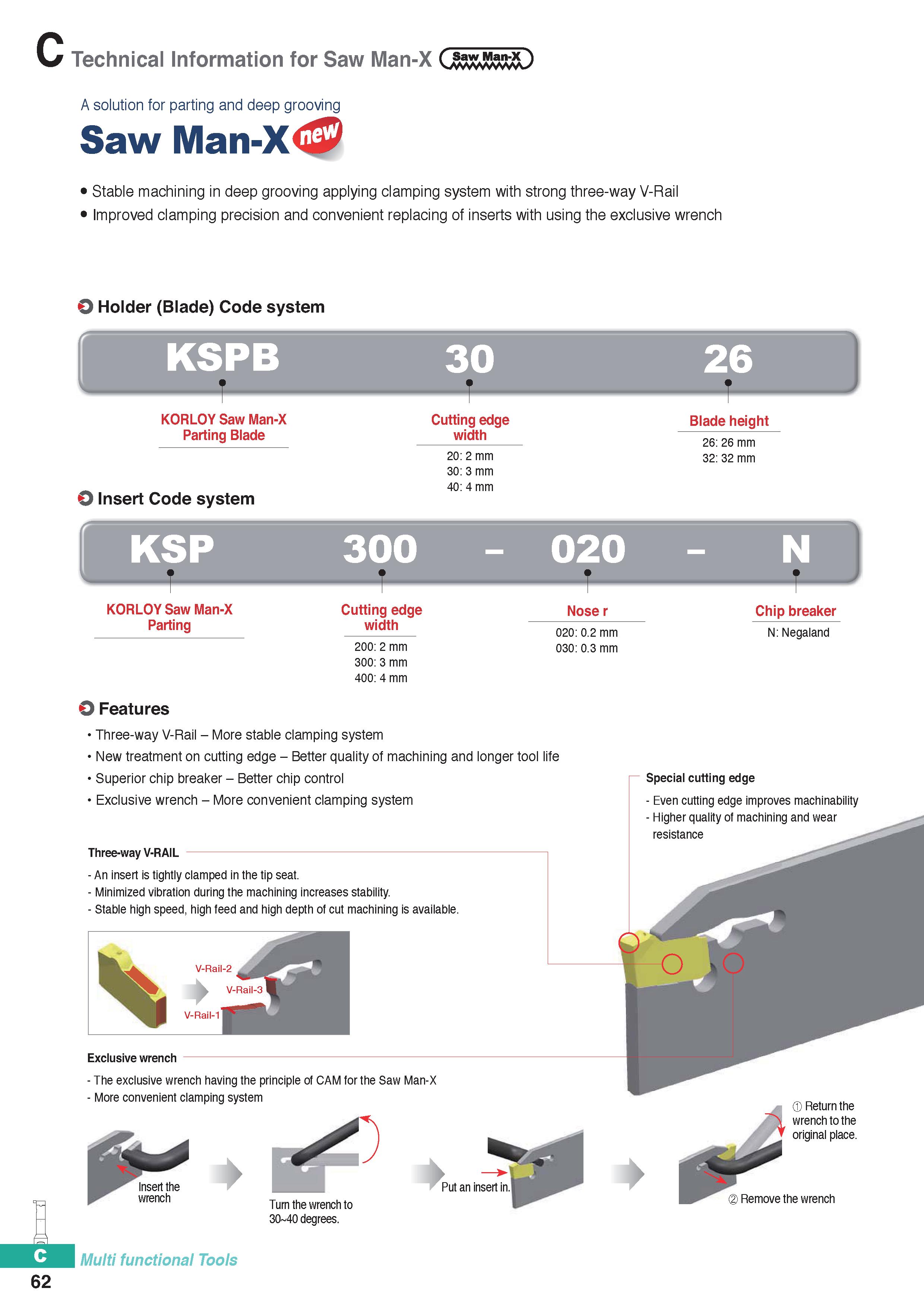

Technical Information for Saw Man-X 62 A solution for parting and deep grooving Saw Man-X Stable machining in deep grooving applying clamping system with strong three-way V-Rail Improved clamping precision and convenient replacing of inserts with using the exclusive wrench O Holder (Blade) Code system 30 26 KORLOY Saw Man-X Parting Blade O Insert Code system KSP KORLOY SawMan-X Parting Cutting edge width 20: 2 mm 30: 3 mm 40: 4 mm Blade height 26: 26 mm 32: 32 mm 300 - 020 Cutting edge width 200: 2 mm 300: 3 mm 400: 4 mm Nose r 020: 0.2 mm 030: 0.3 mm Chip breaker N: Negaland O Features Three-way V-Rail - More stable clamping system New treatment on cutting edge - Better quality of machining and longer tool life Superior chip breaker - Better chip control Exclusive wrench - More convenient clamping system Special cutting edge Three-wayV-RAIL - An insert is tightly clamped in the tip seat. - Minimized vibration during the machining increases stability. - Stable high speed, high feed and high depth of cut machining is available. Exclusivewrench The exclusive wrench having the principle of CAM for the Saw Man-X - More convenient clamping system 30-40 degrees. Multi functional Tools - Even cutting edge improves machinability - Higher quality of machining and wear resistance Return the wrench to the original place. Remove the wrench
