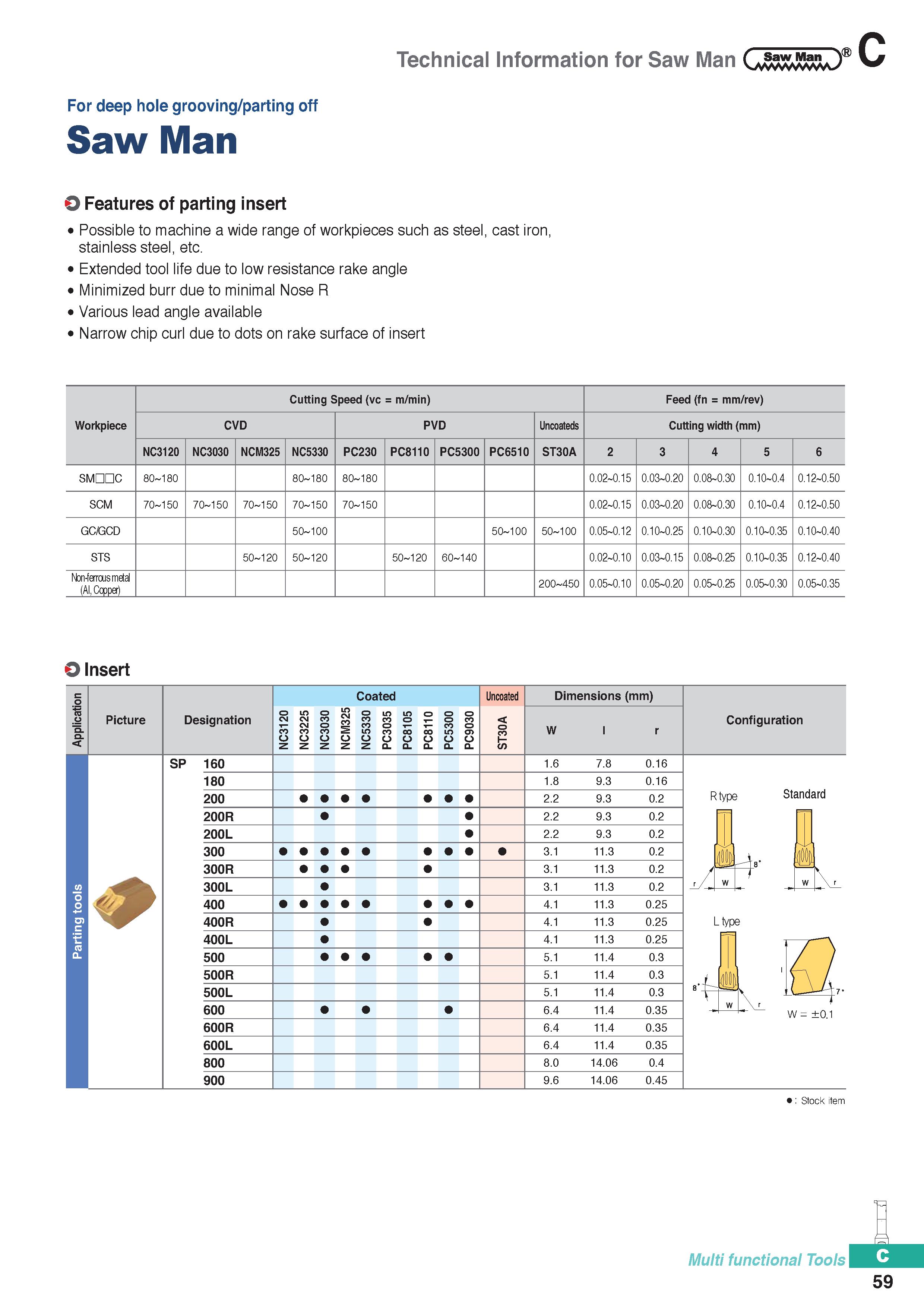

Technical Information for Saw Man For deep hole grooving/parting off Saw Man O Features of parting insert Possible to machine a wide range of workpieces such as steel, cast iron, stainless steel, etc. Extended tool life due to low resistance rake angle Minimized burr due to minimal Nose R Various lead angle available Narrow chip curl due to dots on rake surface of insert Workpiece Cutting Speed (vc = m/min) Feed (fn = mm/rev) CVD PVD Uncoateds Cutting width (mm) NC3120 NC3030 NCM325 NC5330 PC230 PC8110 PC5300 PC6510 ST30A 2 3 4 5 6 SM HOC 80 180 80 180 80 180 0.02-0.15 0.03 0.20 0.08-0.30 0.10-0.4 0.12-0.50 SCM 70 150 70 150 70 150 70 150 70 150 0.02-0.15 0.03 0.20 0.08-0.30 0.10-0.4 0.12-0.50 GC/GCD 50 100 50 100 50 100 0.05-0.12 0.10 0.25 0.10-0.30 0.10-0.35 0.10-0.40 STS 50 120 50 120 50 120 60 140 0.02-0.10 0.03 0.15 0.08-0.25 0.10-0.35 0.12-0.40 Non-ferrous metal (AI, Copper) 200 450 0.05-0.10 0.05 0.20 0.05-0.25 0.05-0.30 0.05-0.35 O Insert Picture Designation Coated m o m cjcjco££cocoot-o o i-cjo 2cooi-i-coo cococoSiocococoioot OO ZZZZZQ.Q.Q.Q.Q. Uncoated o CO Dimensions (mm) W Configuration SP 160 180 200 200R 200L 300 300R 300L 400 400R 400L 500 500R 500L 600 600R 600L 800 900 1.6 1.8 2.2 2.2 2.2 3.1 3.1 3.1 4.1 4.1 4.1 5.1 5.1 5.1 6.4 6.4 6.4 8.0 9.6 9.3 9.3 9.3 9.3 11.3 11.3 11.3 11.3 11.3 11.3 11.4 11.4 11.4 11.4 11.4 11.4 14.06 14.06 0.16 0.16 0.2 0.2 0.2 0.2 0.2 0.2 0.25 0.25 0.25 0.3 0.3 0.3 0.35 0.35 0.35 0.4 0.45 r type Standard u L type W = ±0.1 Stock item 7 Multi functional Tools mu 59
