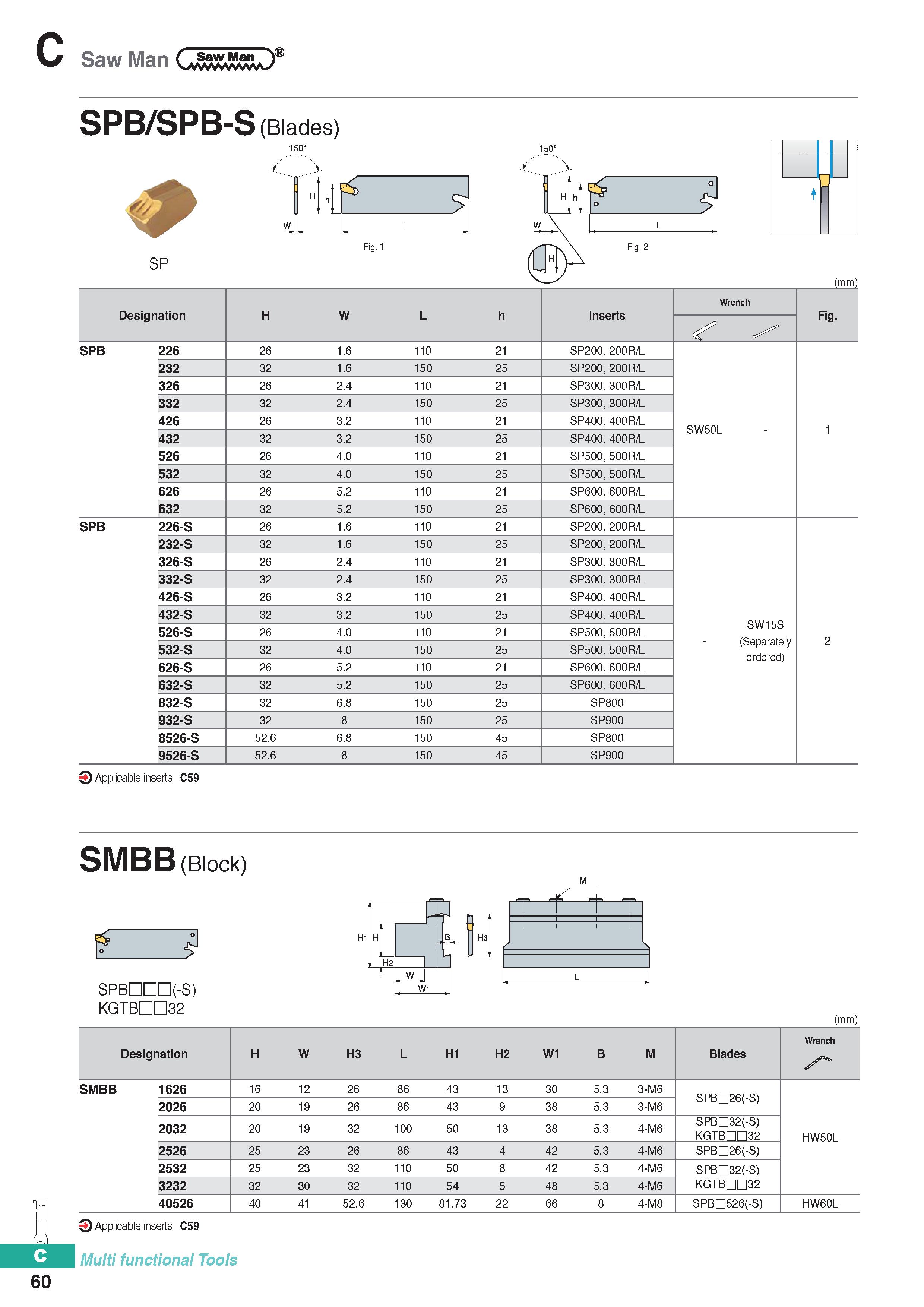

C Saw Man CvEkSsuT c" 60 SPB/SPB-S (Blades) SP Fig. 1 T Fig. 2 (mm) Designation H W L h Inserts Wrench Fig. SPB 226 26 1.6 110 21 SP200 200R/L 232 32 1.6 150 25 SP200 200R/L 326 26 2.4 110 21 SP300 300R/L 332 32 2.4 150 25 SP300 300R/L 426 26 3.2 110 21 SP400 400R/L SW50L 1 432 32 3.2 150 25 SP400 400R/L 526 26 4.0 110 21 SP500 500R/L 532 32 4.0 150 25 SP500 500R/L 626 26 5.2 110 21 SP600 600R/L 632 32 5.2 150 25 SP600 600R/L SPB 226-S 26 1.6 110 21 SP200 200R/L 232-S 32 1.6 150 25 SP200 200R/L 326-S 26 2.4 110 21 SP300 300R/L 332-S 32 2.4 150 25 SP300 300R/L 426-S 26 3.2 110 21 SP400 400R/L 432-S 32 3.2 150 25 SP400 400R/L SW15S (Separately ordered) 526-S 26 4.0 110 21 SP500 500R/L 2 532-S 32 4.0 150 25 SP500 500R/L 626-S 26 5.2 110 21 SP600 600R/L 632-S 32 5.2 150 25 SP600 600R/L 832-S 32 6.8 150 25 SP800 932-S 32 8 150 25 SP900 8526-S 52.6 6.8 150 45 SP800 9526-S 52.6 8 150 45 SP900 Applicable inserts C59 SMBB (Block) SPBDEO(-S) KGTBDD32 (mm) Wrench Designation H W H3 L H1 H2 W1 B M Blades SMBB 1626 16 12 26 86 43 13 30 5.3 3-M6 SPBD26(-S) 2026 20 19 26 86 43 9 38 5.3 3-M6 2032 20 19 32 100 50 13 38 5.3 4-M6 SPBD32(-S) KGTBH032 HW50L 2526 25 23 26 86 43 4 42 5.3 4-M6 SPBQ26(-S) 2532 25 23 32 110 50 8 42 5.3 4-M6 SPBQ32(-S) 3232 32 30 32 110 54 5 48 5.3 4-M6 KGTBCD32 40526 40 41 52.6 130 81.73 22 66 8 4-M8 SPBQ526(-S) HW60L O Applicable inserts C59 Multi functional Tools
