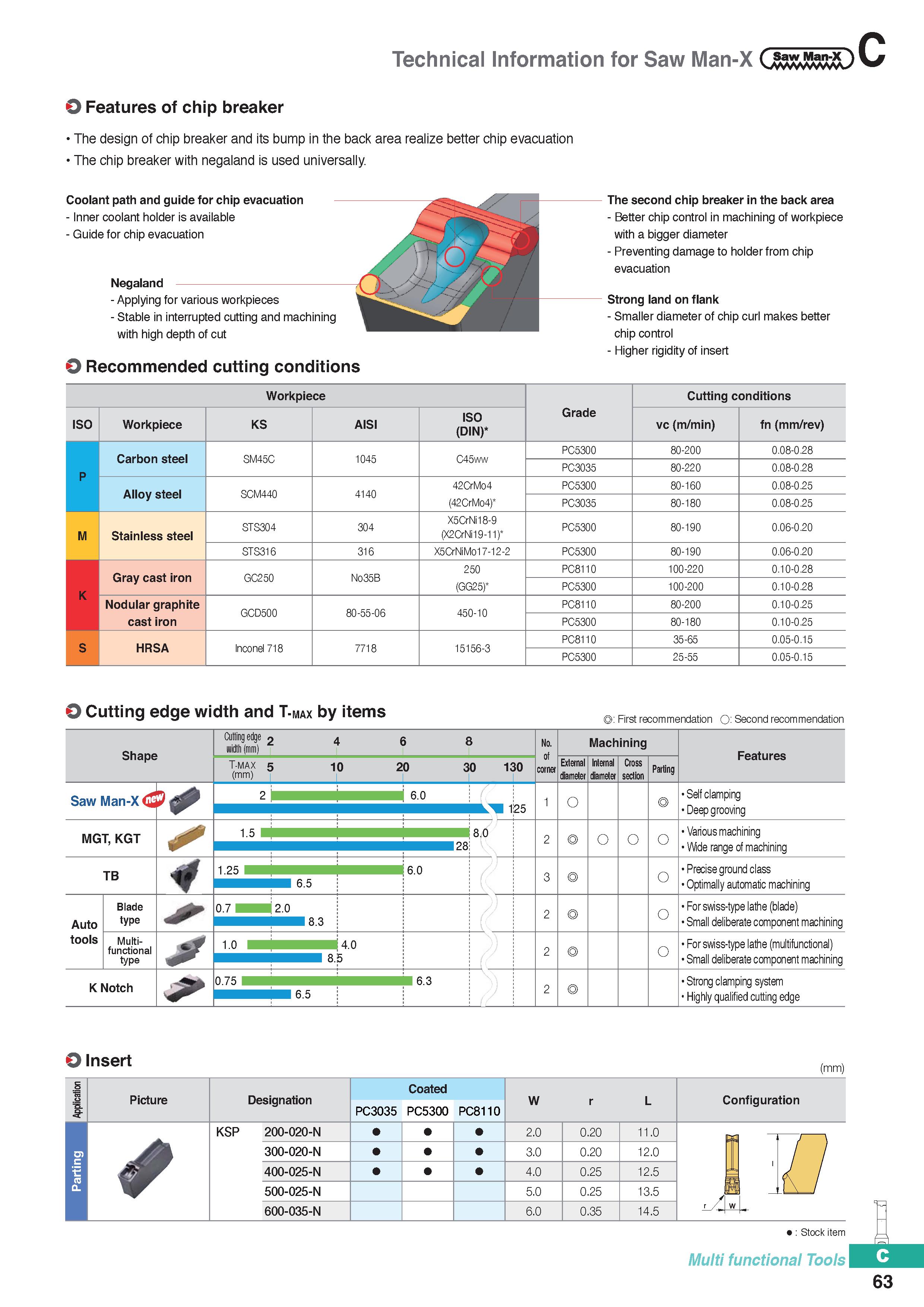

Technical Information for Saw Man-X O Features of chip breaker The design of chip breaker and its bump in the back area realize better chip evacuation The chip breaker with negaland is used universally. Coolant path and guide for chip evacuation - Inner coolant holder is available - Guide for chip evacuation Negaland - Applying for various workpieces - Stable in interrupted cutting and machining with high depth of cut 0 Recommended cutting conditions The second chip breaker in the back area - Better chip control in machining of workpiece with a bigger diameter - Preventing damage to holder from chip evacuation Strong land on flank - Smaller diameter of chip curl makes better chip control - Higher rigidity of insert Workpiece Cutting conditions ISO Workpiece KS AISI ISO (DIN) Grade vc (m/min) fn (mm/rev) Carbon steel SM45C 1045 C45ww PC5300 80-200 0.08-0.28 P PC3035 80-220 0.08-0.28 Alloy steel SCM440 4140 42CrMo4 PC5300 80-160 0.08-0.25 (42CrMo4) PC3035 80-180 0.08-0.25 M Stainless steel STS304 304 X5CrNi18-9 (X2CrNi19-11) PC5300 80-190 0.06-0.20 STS316 316 X5CrNiMo17-12-2 PC5300 80-190 0.06-0.20 Gray cast iron GC250 No35B 250 PC8110 100-220 0.10-0.28 K (GG25) PC5300 100-200 0.10-0.28 Nodular graphite GCD500 80-55-06 450-10 PC8110 80-200 0.10-0.25 cast iron PC5300 80-180 0.10-0.25 S HRSA Inconel 718 7718 15156-3 PC8110 35-65 0.05-0.15 PC5300 25-55 0.05-0.15 O Cutting edge width and T-max by items ◎: First recommendation O: Second recommendation Shape Cutting edge 2 width (mm) T-max 5 (mm) 10 20 30 130 No. of corner Machining External diameter Internal diameter section Parting Features Saw Man-X 6.0 25 O 1 Self clamping 1 Deep grooving MGT, KGT 1.5 28 O 1 Various machining 1 Wide range of machining 0.7 2.0 Auto tools 4.0 8.5 O Precise ground class 1 Optimally automatic machining O 1 For swiss-type lathe (blade) Small deliberate component machining O 1 For swiss-type lathe (multifunctional) Small deliberate component machining K Notch 0.75 6.3 ◎ Strong clamping system Highlyqualified cutting edge 8 2 2 3 2 2 2 O Insert (mm) Picture Designation Coated PC3035 PC5300 PC8110 W Configuration KSP 200-020-N 300-020-N 400-025-N 500-025-N 600-035-N 2.0 3.0 4.0 5.0 6.0 0.20 0.20 0.25 0.25 0.35 11.0 12.0 12.5 13.5 14.5 >: Stock item Multi functional Tools L mu 63
