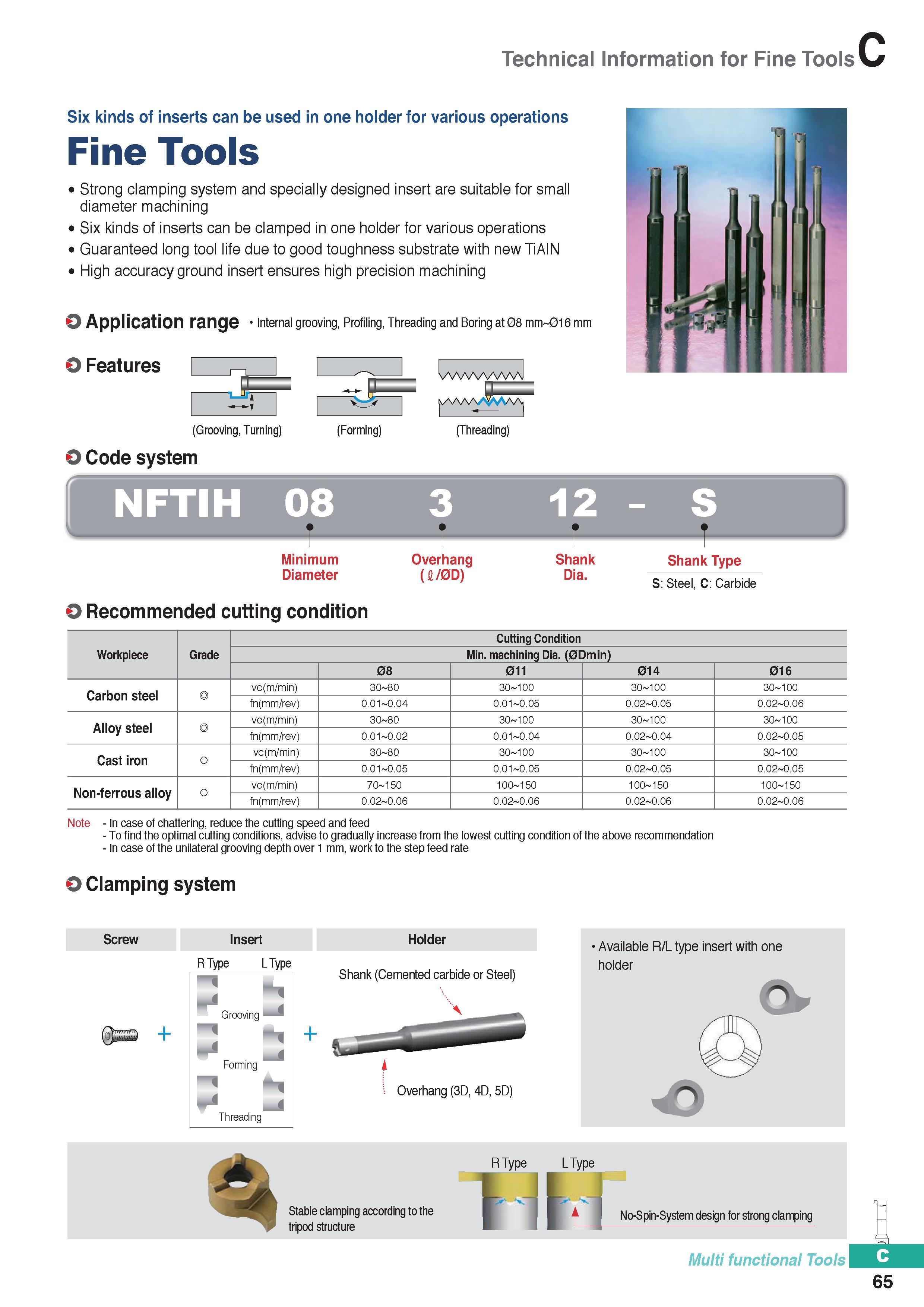

Technical Information for Fine Tools Six kinds of inserts can be used in one holder for various operations Fine Tools Strong clamping system and specially designed insert are suitable for small diameter machining Six kinds of inserts can be clamped in one holder for various operations Guaranteed long tool life due to good toughness substrate with new TiAlN High accuracy ground insert ensures high precision machining O Application range Internal grooving, Profiling, Threading and Boring at 08 mm 016 mm O Features aa/vwvwJ (Grooving, Turning) (Forming) jvAA/W AA (Threading) O Code system NFTIH 08 12 - S Minimum Diameter Overhang (A/0D) Shank Dia. Shank Type S: Steel, C: Carbide O Recommended cutting condition Workpiece Grade Cutting Condition Min. machining Dia. (0Dmin) 08 011 014 016 Carbon steel ◎ vc(m/min) 30 80 30 100 30 100 30 100 fn(mm/rev) 0.01 0.04 0.01 0.05 0.02 0.05 0.02 0.06 Alloy steel ◎ vc(m/min) 30 80 30 100 30 100 30 100 fn(mm/rev) 0.01 0.02 0.01 0.04 0.02 0.04 0.02 0.05 Cast iron 0 vc(m/min) 30 80 30 100 30 100 30 100 fn(mm/rev) 0.01 0.05 0.01 0.05 0.02 0.05 0.02 0.05 Non-ferrous alloy 0 vc(m/min) 70 150 100 150 100 150 100 150 fn(mm/rev) 0.02 0.06 0.02 0.06 0.02 0.06 0.02 0.06 Note - In case of chattering, reduce the cutting speed and feed - To find the optimal cutting conditions, advise to gradually increase from the lowest cutting condition of the above recommendation - In case of the unilateral grooving depth over 1 mm, work to the step feed rate Clamping system Screw Insert R Type LType + Grooving - I I Forming i i i Threading Holder Shank (Cemented carbide or Steel) + Overhang (3D, 4D, 5D) Stable clamping according to the tripod structure R Type L Type MB- No-Spin-System design for strong clamping Multi functional Tools mm 65
