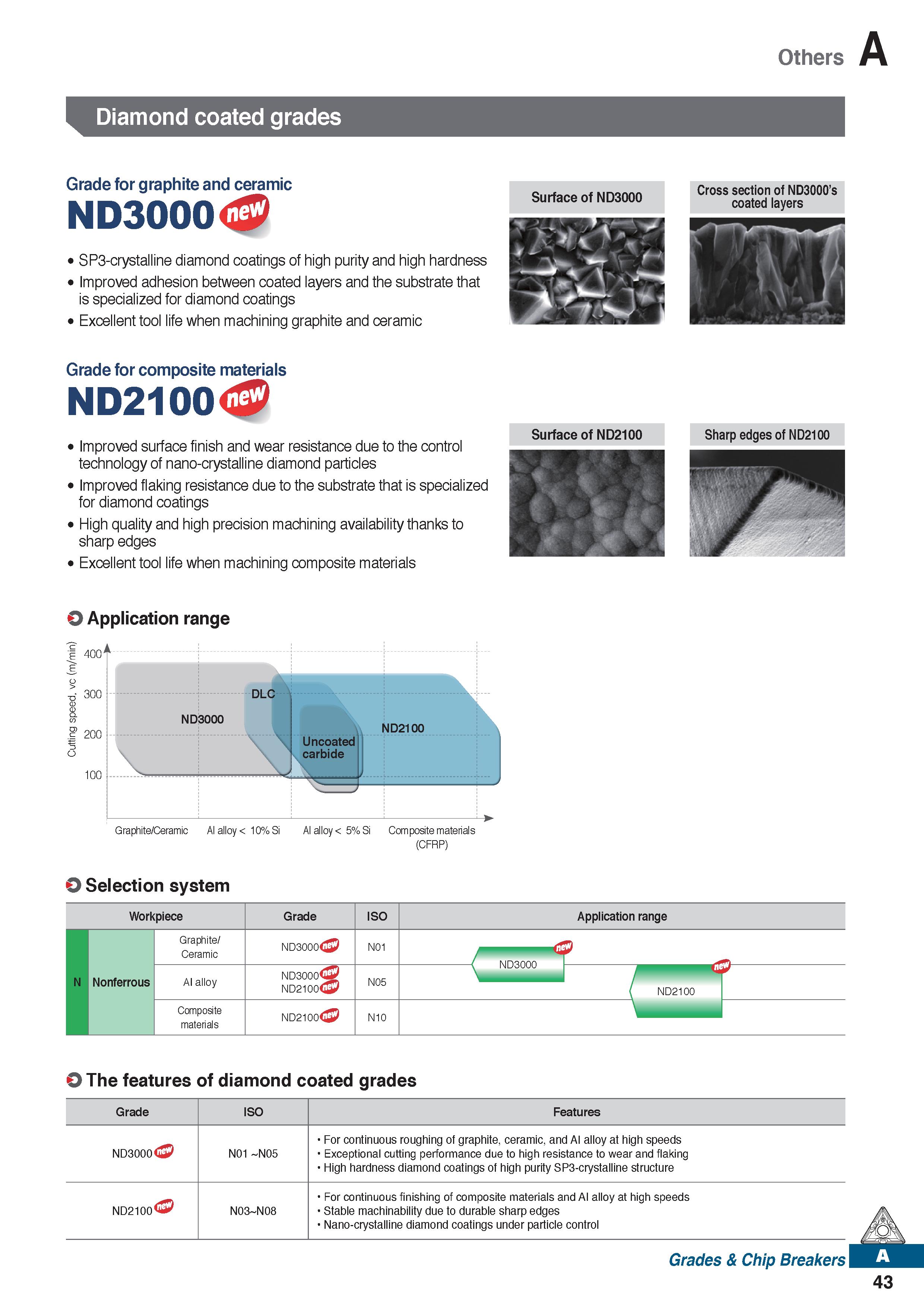

Others Diamond coated grades Grade for graphite and ceramic ND3000 Surface of ND3000 SP3-crystalline diamond coatings of high purity and high hardness Improved adhesion between coated layers and the substrate that is specialized for diamond coatings Excellent tool life when machining graphite and ceramic Cross section of ND3000’s coated layers Grade for composite materials ND2100 Improved surface finish and wear resistance due to the control technology of nano-crystalline diamond particles Improved flaking resistance due to the substrate that is specialized for diamond coatings High quality and high precision machining availability thanks to sharp edges Excellent tool life when machining composite materials O Application range I 400 Graphite/Ceramic Al alloy 10% Si Al alloy 5% Si Composite materials (CFRP) O Selection system Workpiece Grade ISO Application range N Nonferrous Graphite/ Ceramic ND3000 N01 AI alloy ND3000 ND2100 N05 ND2100 w Composite materials ND2100 N10 \ O The features of diamond coated grades Grade ISO Features ND3000 N01 N05 For continuous roughing of graphite, ceramic, and AI alloy at high speeds Exceptional cutting performance due to high resistance to wear and flaking High hardness diamond coatings of high purity SP3-crystalline structure ND2100 N03 N08 For continuous finishing of composite materials and Al alloy at high speeds Stable machinability due to durable sharp edges Nano-crystalline diamond coatings under particle control Grades & Chip Breakers m 43
