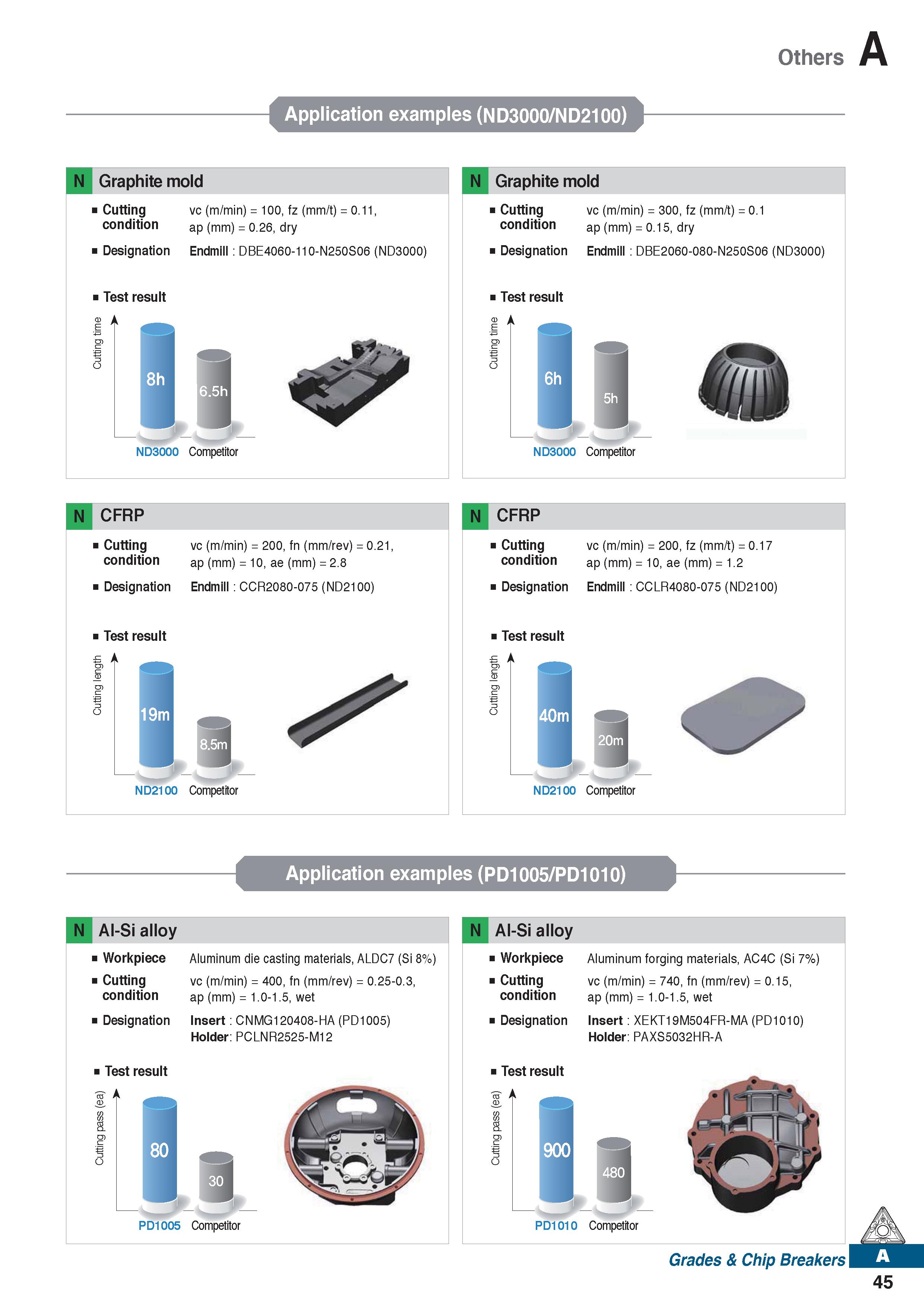

Others Application examples (ND3000/ND2100) N Graphite mold N Graphite mold Cutting vc (m/min) = 100, fz (mm/t) = 0.11, condition ap (mm) = 0.26, dry Designation Endmill: DBE4060-110-N250S06 (ND3000) Test result CD A 111 ND3000 Competitor Cutting vc (m/min) = 300, fz (mm/t) = 0.1 condition ap (mm) = 0.15, dry Designation Endmill : DBE2060-080-N250S06 (ND3000) Test result CD A Si m 9 9 ND3000 Competitor N CFRP Cutting condition vc (m/min) = 200, fn (mm/rev) = 0.21, ap (mm) = 10, ae (mm) = 2.8 Designation Endmill: CCR2080-075 (ND2100) Test result ND2100 Competitor N CFRP Cutting vc (m/min) = 200, fz (mm/t) = 0.17 condition ap (mm) = 10, ae (mm) = 1.2 Designation Endmill: CCLR4080-075 (ND2100) Test result ND2100 Competitor Application examples (PD1005/PD1010) N Al-Si alloy Workpiece Aluminum die casting materials, ALDC7 (Si 8%) Cutting condition Designation Test result vc (m/min) = 400, fn (mm/rev) = 0.25-0.3, ap (mm) = 1.0-1.5, wet Insert: CNMG120408-HA (PD1005) Holder: PCLNR2525-M12 PD1005 Competitor N Al-Si alloy Workpiece Cutting condition Designation Test result Aluminum forging materials, AC4C (Si 7%) vc (m/min) = 740, fn (mm/rev) = 0.15, ap (mm) = 1.0-1.5, wet Insert: XEKT19M504FR-MA (PD1010) Holder: PAXS5032HR-A PD1010 Competitor Grades & Chip Breakers 45
