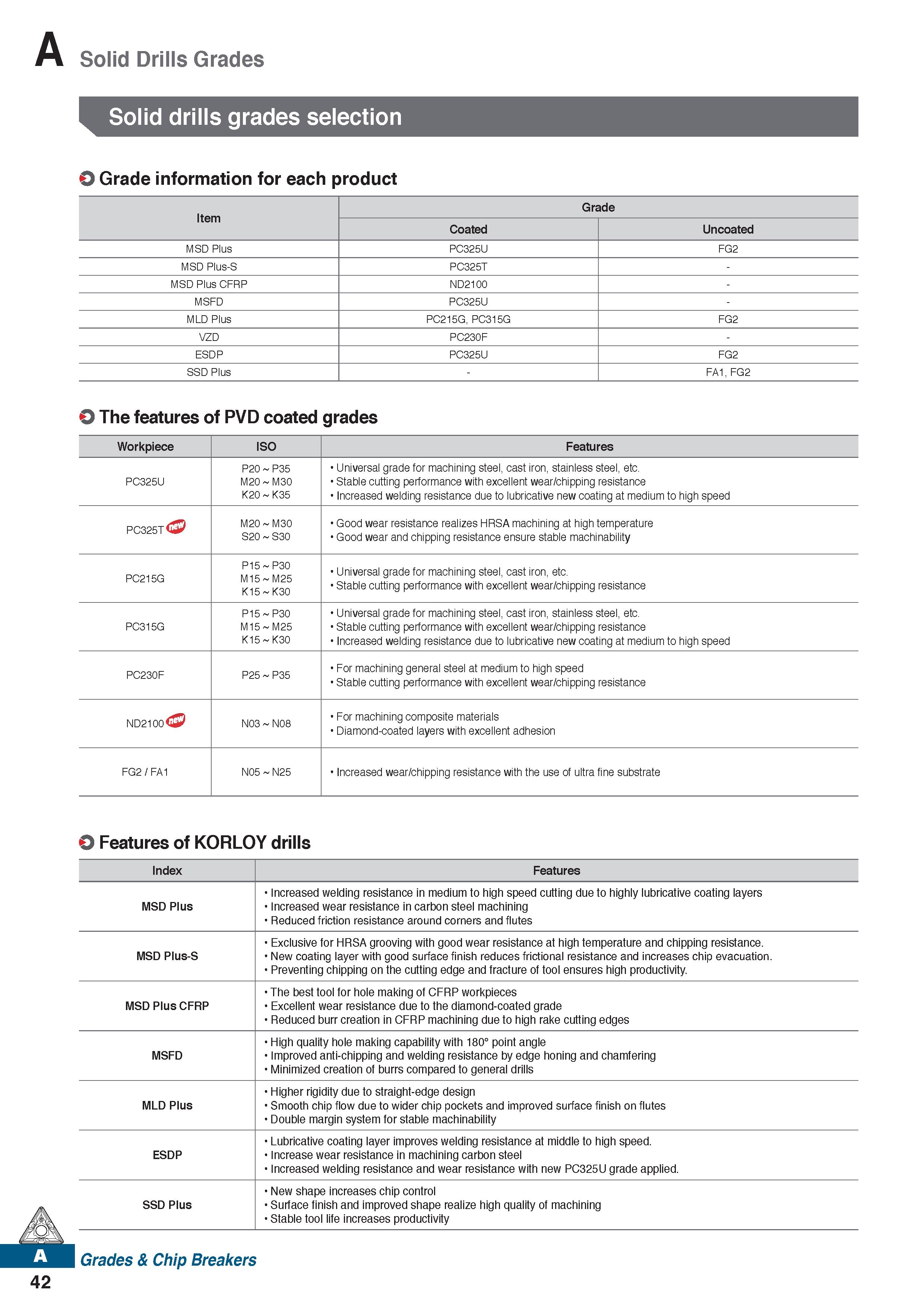

A Solid Drills Grades Solid drills grades selection Grade information for each product Item Grade Coated Uncoated MSD Plus PC325U FG2 MSD Plus-S PC325T - MSD Plus CFRP ND2100 - MSFD PC325U - MLD Plus PC215G, PC315G FG2 VZD PC230F - ESDP PC325U FG2 SSD Plus - FA1, FG2 O The features of PVD coated grades Workpiece ISO Features PC325U P20 P35 M20 M30 K20 K35 Universal grade for machining steel, cast iron, stainless steel, etc. Stable cutting performance with excellent wear/chipping resistance Increased welding resistance due to lubricative new coating at medium to high speed PC325T M20 M30 S20 S30 Good wear resistance realizes HRSA machining at high temperature Good wear and chipping resistance ensure stable machinability PC215G P15 P30 M15 M25 K15 K30 Universal grade for machining steel, cast iron, etc. Stable cutting performance with excellent wear/chipping resistance PC315G P15 P30 M15 M25 K15 K30 Universal grade for machining steel, cast iron, stainless steel, etc. Stable cutting performance with excellent wear/chipping resistance Increased welding resistance due to lubricative new coating at medium to high speed PC230F P25 P35 For machining general steel at medium to high speed Stable cutting performance with excellent wear/chipping resistance ND2100 N03 N08 For machining composite materials Diamond-coated layers with excellent adhesion FG2 / FA1 N05 N25 Increased wear/chipping resistance with the use of ultra fine substrate O Features of KORLOY drills Index Features MSD Plus Increased welding resistance in medium to high speed cutting due to highly lubricative coating layers Increased wear resistance in carbon steel machining Reduced friction resistance around corners and flutes MSD Plus-S Exclusive for HRSA grooving with good wear resistance at high temperature and chipping resistance. New coating layer with good surface finish reduces frictional resistance and increases chip evacuation. Preventing chipping on the cutting edge and fracture of tool ensures high productivity. MSD Plus CFRP The best tool for hole making of CFRP workpieces Excellent wear resistance due to the diamond-coated grade Reduced burr creation in CFRP machining due to high rake cutting edges MSFD High quality hole making capability with 180° point angle Improved anti-chipping and welding resistance by edge honing and chamfering Minimized creation of burrs compared to general drills MLD Plus Higher rigidity due to straight-edge design Smooth chip flow due to wider chip pockets and improved surface finish on flutes Double margin system for stable machinability ESDP Lubricative coating layer improves welding resistance at middle to high speed. Increase wear resistance in machining carbon steel Increased welding resistance and wear resistance with new PC325U grade applied. SSD Plus New shape increases chip control Surface finish and improved shape realize high quality of machining Stable tool life increases productivity Grades & Chip Breakers 42
