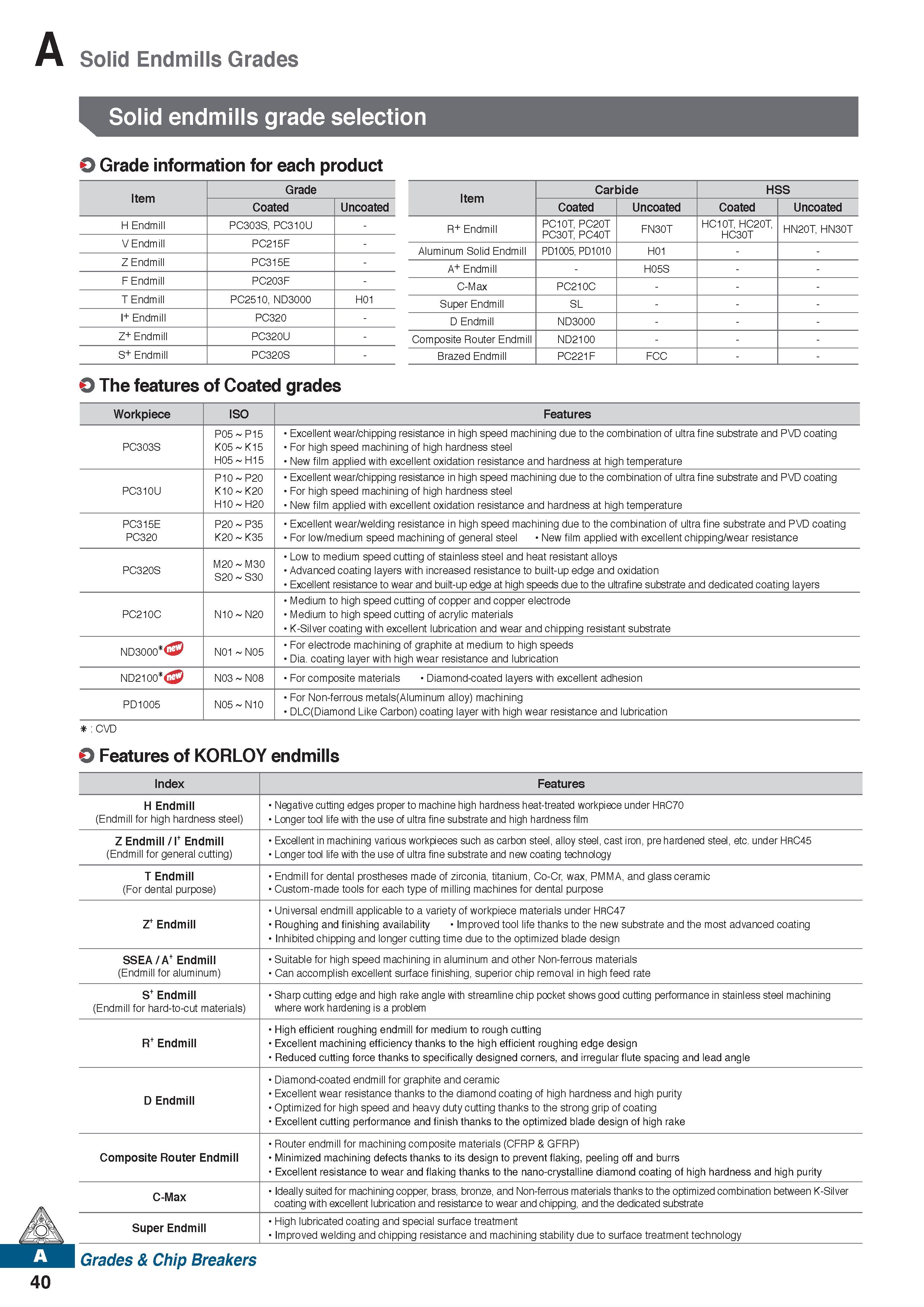

Solid Endmills Grades Solid endmills grade selection O Grade information for each product Item Grade Carbide HSS Coated Uncoated Coated Uncoated Coated Uncoated H Endmill PC303S, PC310U R+ Endmill PC10T, PC20T PC30T, PC40T FN30T HC10T, HC20T, HC30T HN20T, HN30T V Endmill PC215F PD1005, PD1010 H01 Z Endmill PC315E - H05S F Endmill PC203F - C-Max PC210C - T Endmill PC2510, ND3000 H01 Super Endmill SL - I+ Endmill PC320 D Endmill ND3000 - Z+ Endmill PC320U - Composite Router Endmill ND2100 - S+ Endmill PC320S - Brazed Endmill PC221F FCC O The features of Coated grades Workpiece ISO Features PC303S P05 P15 K05 K15 H05 H15 Excellent wear/chipping resistance in high speed machining due to the combination of ultra fine substrate and PVD coating For high speed machining of high hardness steel New film applied with excellent oxidation resistance and hardness at high temperature PC310U P10 P20 K10 K20 H10 H20 Excellent wear/chipping resistance in high speed machining due to the combination of ultra fine substrate and PVD coating For high speed machining of high hardness steel New film applied with excellent oxidation resistance and hardness at high temperature PC315E PC320 P20 P35 K20 K35 Excellent wear/welding resistance in high speed machining due to the combination of ultra fine substrate and PVD coating For low/medium speed machining of general steel New film applied with excellent chipping/wear resistance PC320S M20 M30 S20 S30 Low to medium speed cutting of stainless steel and heat resistant alloys Advanced coating layers with increased resistance to built-up edge and oxidation Excellent resistance to wear and built-up edge at high speeds due to the ultrafine substrate and dedicated coating layers PC210C N10 N20 Medium to high speed cutting of copper and copper electrode Medium to high speed cutting of acrylic materials K-Silver coating with excellent lubrication and wear and chipping resistant substrate ND3000 N01 N05 For electrode machining of graphite at medium to high speeds Dia. coating layer with high wear resistance and lubrication ND2100 N03 N08 For composite materials Diamond-coated layers with excellent adhesion PD1005 N05 N10 For Non-ferrous metals(Aluminum alloy) machining DLC(Diamond Like Carbon) coating layer with high wear resistance and lubrication : CVD Features of KORLOY endmills Index Features H Endmill (Endmill for high hardness steel) Negative cutting edges proper to machine high hardness heat-treated workpiece under HRC70 Longer tool life with the use of ultra fine substrate and high hardness film Z Endmill / I+ Endmill (Endmill for general cutting) Excellent in machining various workpieces such as carbon steel, alloy steel, cast iron, pre hardened steel, etc. under HRC45 Longer tool life with the use of ultra fine substrate and new coating technology T Endmill (For dental purpose) Endmill for dental prostheses made of zirconia, titanium, Co-Cr, wax, PMMA, and glass ceramic Custom-made tools for each type of milling machines for dental purpose Z+ Endmill Universal endmill applicable to a variety of workpiece materials under HRC47 Roughing and finishing availability Improved tool life thanks to the new substrate and the most advanced coating Inhibited chipping and longer cutting time due to the optimized blade design SSEA / A+ Endmill (Endmill for aluminum) Suitable for high speed machining in aluminum and other Non-ferrous materials Can accomplish excellent surface finishing, superior chip removal in high feed rate S+ Endmill (Endmill for hard-to-cut materials) Sharp cutting edge and high rake angle with streamline chip pocket shows good cutting performance in stainless steel machining where work hardening is a problem R+ Endmill High efficient roughing endmill for medium to rough cutting Excellent machining efficiencythanks to the high efficient roughing edge design Reduced cutting force thanks to specifically designed corners, and irregular flute spacing and lead angle D Endmill Diamond-coated endmill for graphite and ceramic Excellent wear resistance thanks to the diamond coating of high hardness and high purity Optimized for high speed and heavy duty cutting thanks to the strong grip of coating Excellent cutting performance and finish thanks to the optimized blade design of high rake Composite Router Endmill Router endmill for machining composite materials (CFRP & GFRP) Minimized machining defects thanks to its design to prevent flaking, peeling off and burrs Excellent resistance to wear and flaking thanks to the nano-crystalline diamond coating of high hardness and high purity C-Max Ideally suited for machining copper, brass, bronze, and Non-ferrous materials thanks to the optimized combination between K-Silver coating with excellent lubrication and resistance to wear and chipping, and the dedicated substrate Super Endmill High lubricated coating and special surface treatment Improved welding and chipping resistance and machining stability due to surface treatment technology Grades & Chip Breakers 40
