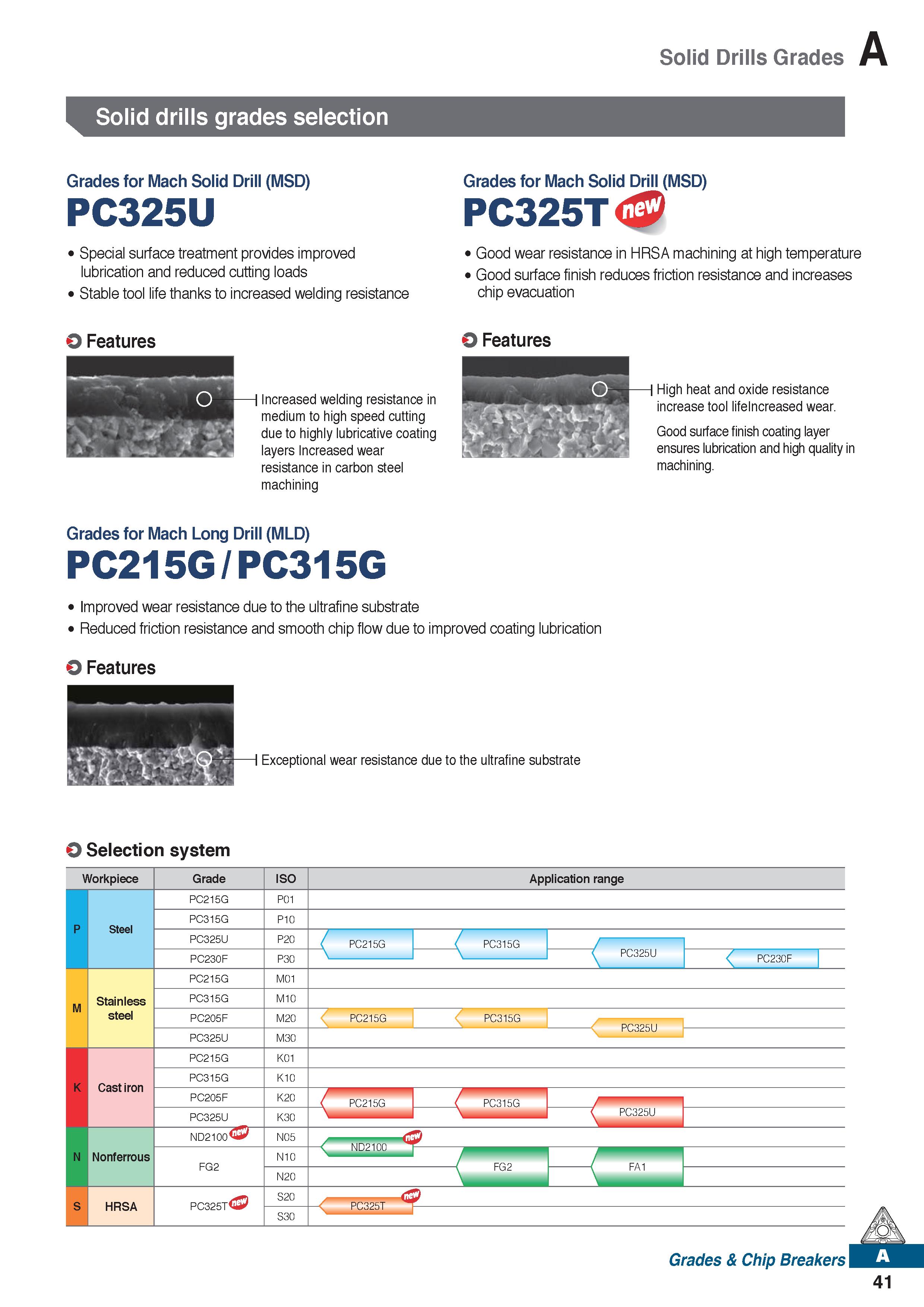

Solid Drills Grades Solid drills grades selection Grades for Mach Solid Drill (MSD) PC325U Special surface treatment provides improved lubrication and reduced cutting loads Stable tool life thanks to increased welding resistance Grades for Mach Solid Drill (MSD) PC325T . Good wear resistance in HRSA machining at high temperature Good surface finish reduces friction resistance and increases chip evacuation O Features O Features Increased welding resistance in medium to high speed cutting due to highly lubricative coating layers Increased wear resistance in carbon steel machining High heat and oxide resistance increase tool lifeIncreased wear. Good surface finish coating layer ensures lubrication and high quality in machining. Grades for Mach Long Drill (MLD) PC215G/PC315G Improved wear resistance due to the ultrafine substrate Reduced friction resistance and smooth chip flow due to improved coating lubrication O Features Exceptional wear resistance due to the ultrafine substrate O Selection system Workpiece Grade ISO Application range Steel PC215G P01 PC315G P10 PC325U P20 PC230F P30 PC215G PC315G PC325U PC230F Stainless steel PC215G M01 PC315G M10 PC205F M20 PC215G PC315G PC325U M30 PC325U Cast iron Nonferrous PC215G K01 PC315G K10 PC205F K20 PC325U ND2100 K30 PC215G PC315G N05 FG2 N10 ND2100 £ PC325U N20 FG2 FA1 HRSA PC325T S2C S3C PC325T Grades & Chip Breakers 41 P M K N S
