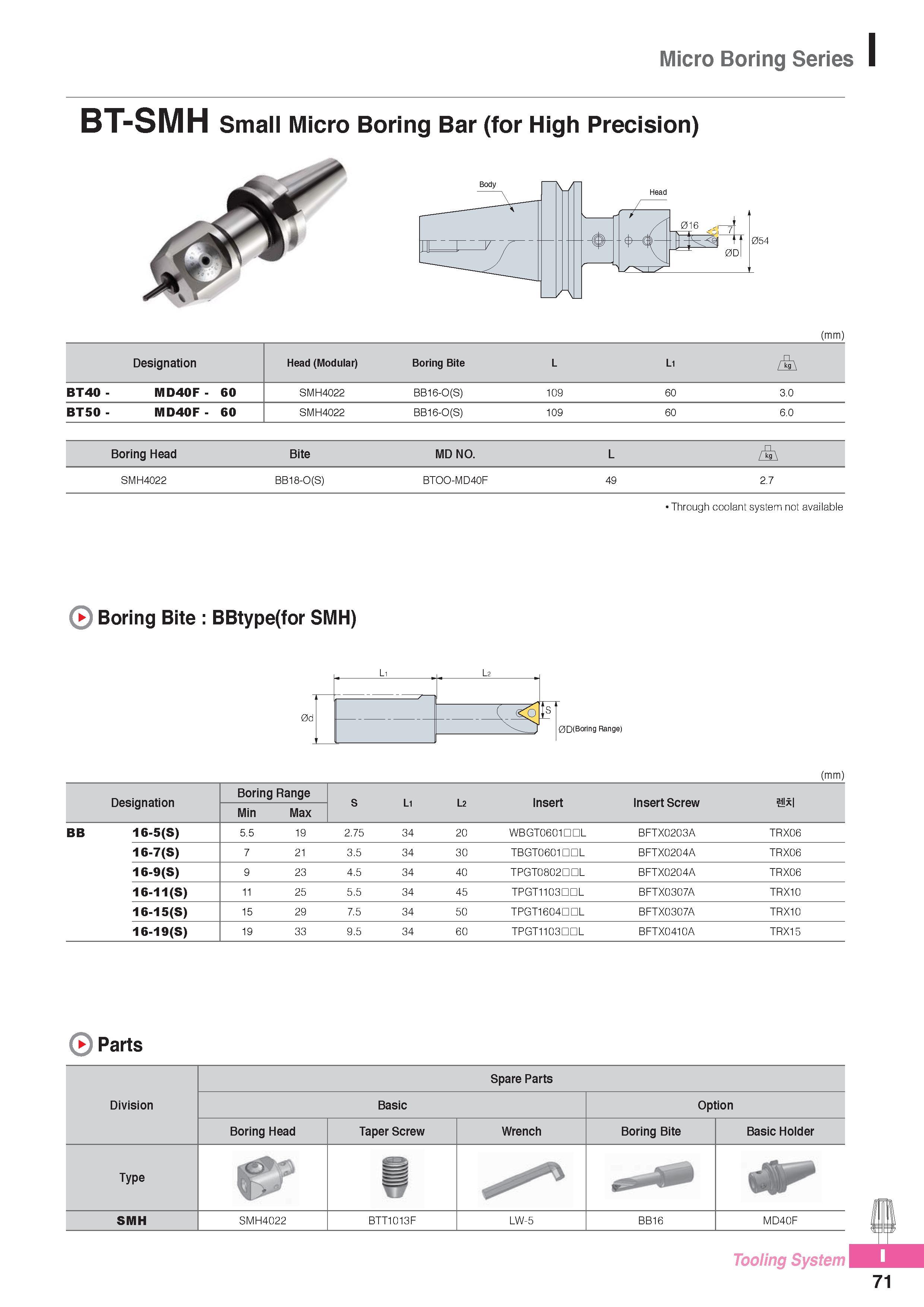

Micro Boring Series BT-SMH Small Micro Boring Bar (for High Precision) (mm) Designation Head (Modular) Boring Bite L L1 BT40 - MD40F - 60 SMH4022 BB16-0(S) 109 60 3.0 BT50 - MD40F - 60 SMH4022 BB16-0(S) 109 60 6.0 Boring Head Bite MD NO. L SMH4022 BB18-0(S) BT00-MD40F 49 2.7 Through coolant system not available Boring Bite BBtype(for SMH) (mm) Designation Boring Range S L1 L2 Insert Insert Screw Min Max BB 16-5(S) 5.5 19 2.75 34 20 WBGT0601DDL BFTX0203A TRX06 16-7(S) 7 21 3.5 34 30 TBGT0601 DDL BFTX0204A TRX06 16-9(S) 9 23 4.5 34 40 TPGT0802DDL BFTX0204A TRX06 16-11(S) 11 25 5.5 34 45 TPGT1103DDL BFTX0307A TRX10 16-15(S) 15 29 7.5 34 50 TPGT1604DDL BFTX0307A TRX10 16-19(S) 19 33 9.5 34 60 TPGT1103DDL BFTX0410A TRX15 Parts Division Spare Parts Basic Option Boring Head Taper Screw Wrench Boring Bite Basic Holder Type P SMH SMH4022 BTT1013F LW-5 BB16 MD40F Tooling Syste l 71
