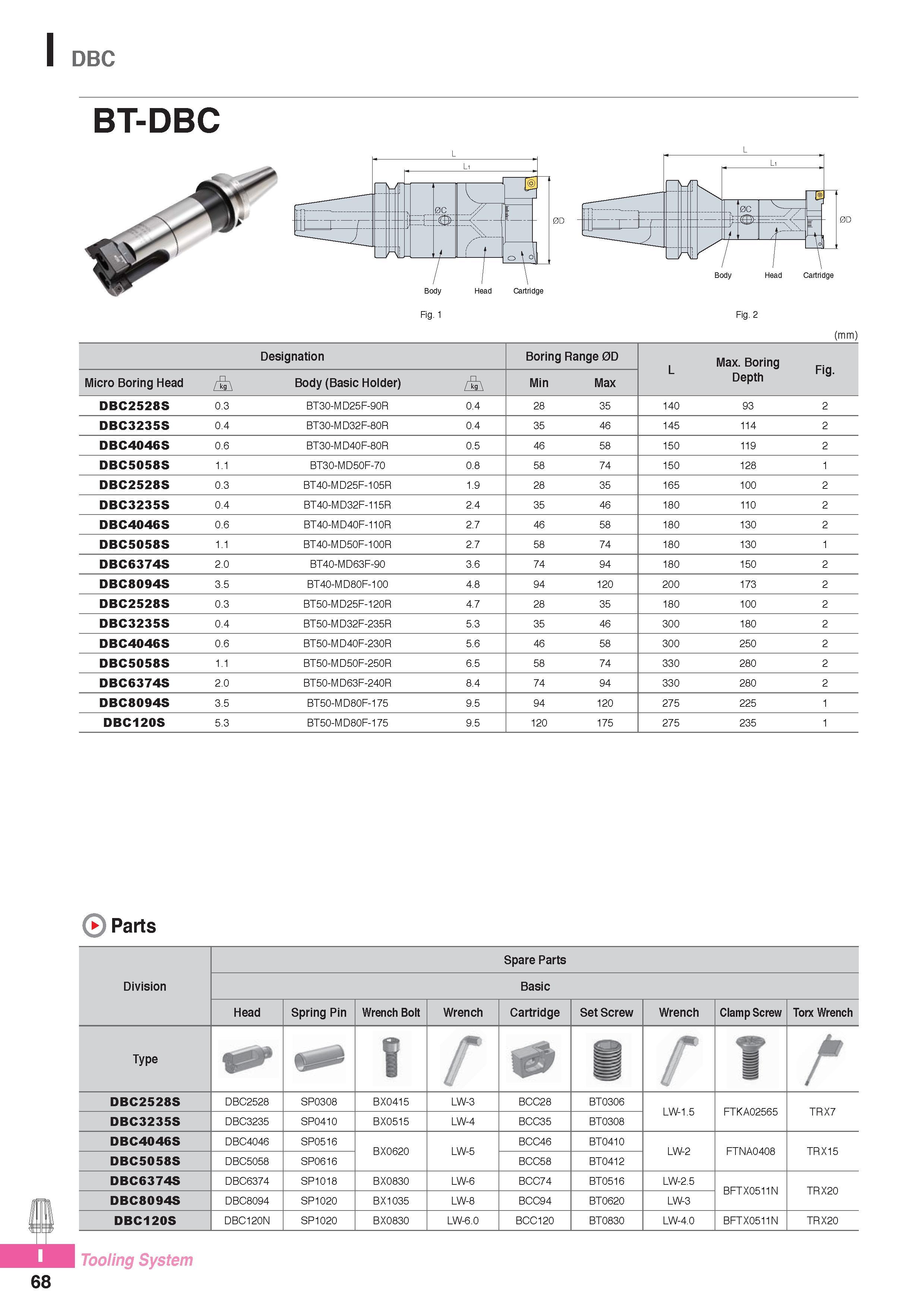

I DBC BT-DBC Fig. 1 Fig. 2 (mm) Designation Boring Range 0D Max. Boring Fig. Micro Boring Head Body (Basic Holder) Min Max L Depth DBC2528S 0.3 BT30-MD25F-90R 0.4 28 35 140 93 2 DBC3235S 0.4 BT30-MD32F-80R 0.4 35 46 145 114 2 DBC4046S 0.6 BT30-MD40F-80R 0.5 46 58 150 119 2 DBC5058S 1.1 BT30-MD50F-70 0.8 58 74 150 128 1 DBC2528S 0.3 BT40-MD25F-105R 1.9 28 35 165 100 2 DBC3235S 0.4 BT40-MD32F-115R 2.4 35 46 180 110 2 DBC4046S 0.6 BT40-MD40F-110R 2.7 46 58 180 130 2 DBC5058S 1.1 BT40-MD50F-100R 2.7 58 74 180 130 1 DBC6374S 2.0 BT40-MD63F-90 3.6 74 94 180 150 2 DBC8094S 3.5 BT40-MD80F-100 4.8 94 120 200 173 2 DBC2528S 0.3 BT50-MD25F-120R 4.7 28 35 180 100 2 DBC3235S 0.4 BT50-MD32F-235R 5.3 35 46 300 180 2 DBC4046S 0.6 BT50-MD40F-230R 5.6 46 58 300 250 2 DBC5058S 1.1 BT50-MD50F-250R 6.5 58 74 330 280 2 DBC6374S 2.0 BT50-MD63F-240R 8.4 74 94 330 280 2 DBC8094S 3.5 BT50-MD80F-175 9.5 94 120 275 225 1 DBC120S 5.3 BT50-MD80F-175 9.5 120 175 275 235 1 Parts Spare Parts Division Basic Head Spring Pin Wrench Bolt Wrench Cartridge Set Screw Wrench Clamp Screw Torx Wrench Type i t / /m a u f t DBC2528S DBC2528 SP0308 BX0415 LW-3 BCC28 BT0306 LW-1.5 FTKA02565 TRX7 DBC3235S DBC3235 SP0410 BX0515 LW-4 BCC35 BT0308 DBC4046S DBC4046 SP0516 BX0620 LW-5 BCC46 BT0410 LW-2 FTNA0408 TRX15 DBC5058S DBC5058 SP0616 BCC58 BT0412 DBC6374S DBC6374 SP1018 BX0830 LW-6 BCC74 BT0516 LW-2.5 BFTX0511N TRX20 DBC8094S DBC8094 SP1020 BX1035 LW-8 BCC94 BT0620 LW-3 DBC120S DBC120N SP1020 BX0830 LW-6.0 BCC120 BT0830 LW-4.0 BFTX0511N TRX20 Tooling System 68
