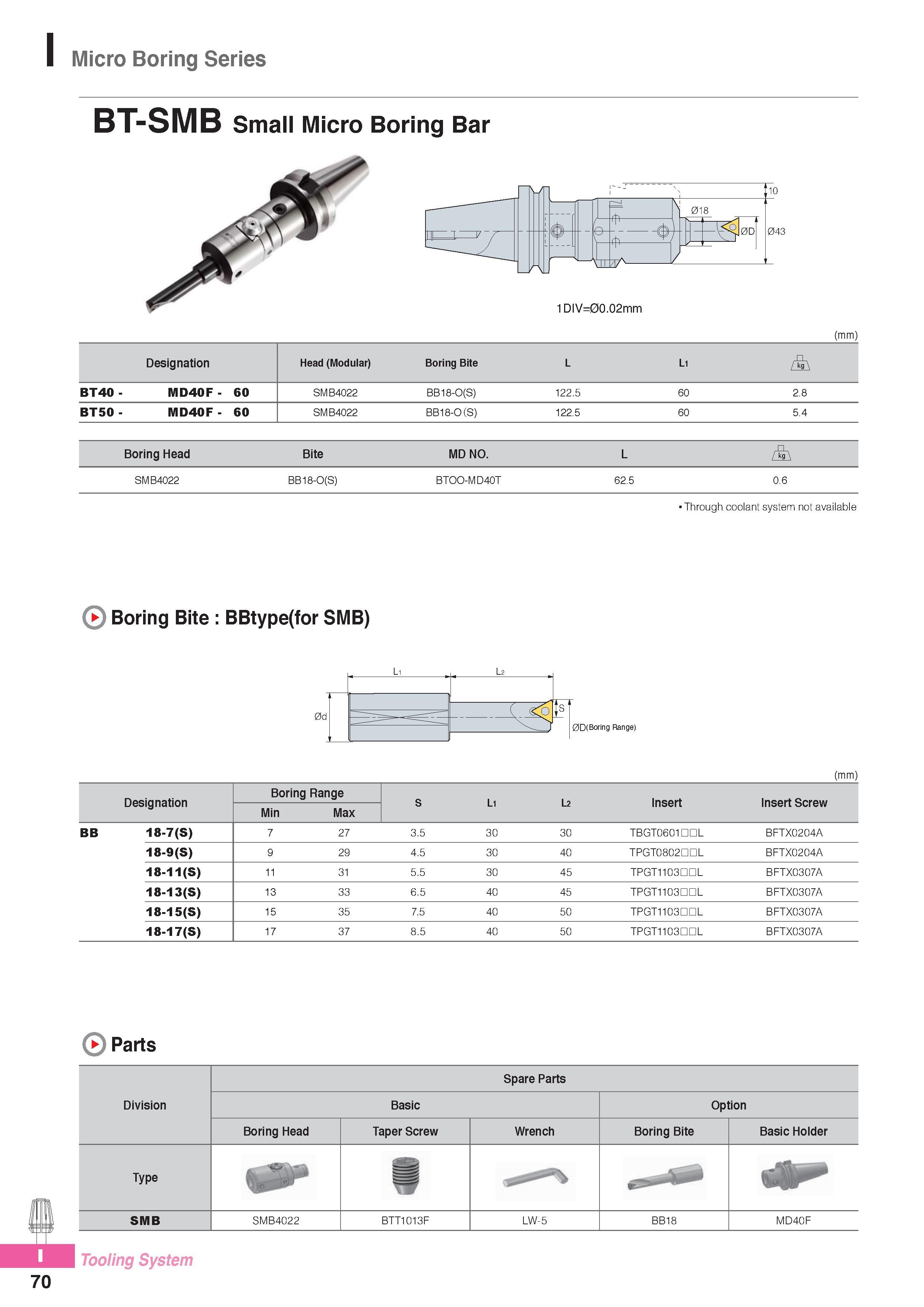

Micro Boring Series BT-SMB Small Micro Boring Bar iq 1DIV=0O.O2mm 018 0D 043 (mm) Designation Head (Modular) Boring Bite L Li BT40- MD40F- 60 SMB4022 BB18-0(S) 122.5 60 2.8 BT50- MD40F- 60 SMB4022 BB18-O (S) 122.5 60 5.4 Boring Head Bite MD NO. L SMB4022 BB18-0(S) BT00-MD40T 62.5 0.6 Boring Bite BBtype(for SMB) Through coolant system not available 0c E 0D(Boring Range) (mm) Designation Boring Range S Li L2 Insert Insert Screw Min Max BB 18-7(S) 7 27 3.5 30 30 TBGT0601 DDL BFTX0204A 18-9(S) 9 29 4.5 30 40 TPGTC8C2 L BFTX0204A 18-11(S) 11 31 5.5 30 45 TPGT11C3 L BFTX0307A 18-13(S) 13 33 6.5 40 45 TPGT11C3 L BFTX0307A 18-15(S) 15 35 7.5 40 50 TPGT11C3 L BFTX0307A 18-17(S) 17 37 8.5 40 50 TPGT11C3 L BFTX0307A Parts Division Spare Parts Basic Option Boring Head Taper Screw Wrench Boring Bite Basic Holder Type yr SMB SMB4022 BTT1013F LW-5 BB18 MD40F Tooling System 70 L
