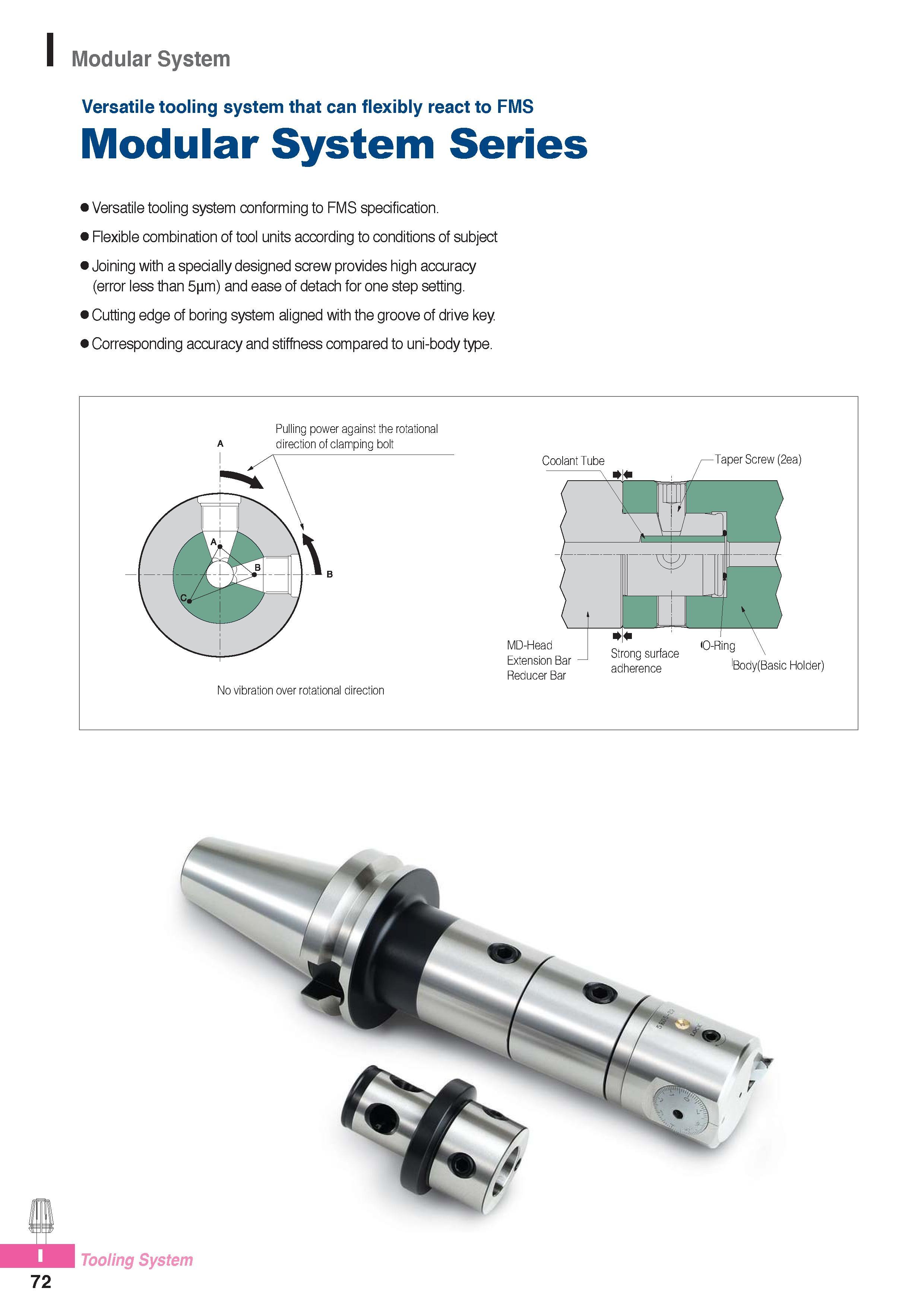

Modular System Versatile tooling system that can flexibly react to FMS Modular System Series Versatile tooling system conforming to FMS specification. Flexible combination of tool units according to conditions of subject Joining with a specially designed screw provides high accuracy (error less than 5 m) and ease of detach for one step setting. Cutting edge of boring system aligned with the groove of drive key Corresponding accuracy and stiffness compared to uni-body type. Pulling power against the rotational a direction of clamping bolt No vibration over rotational direction 72
