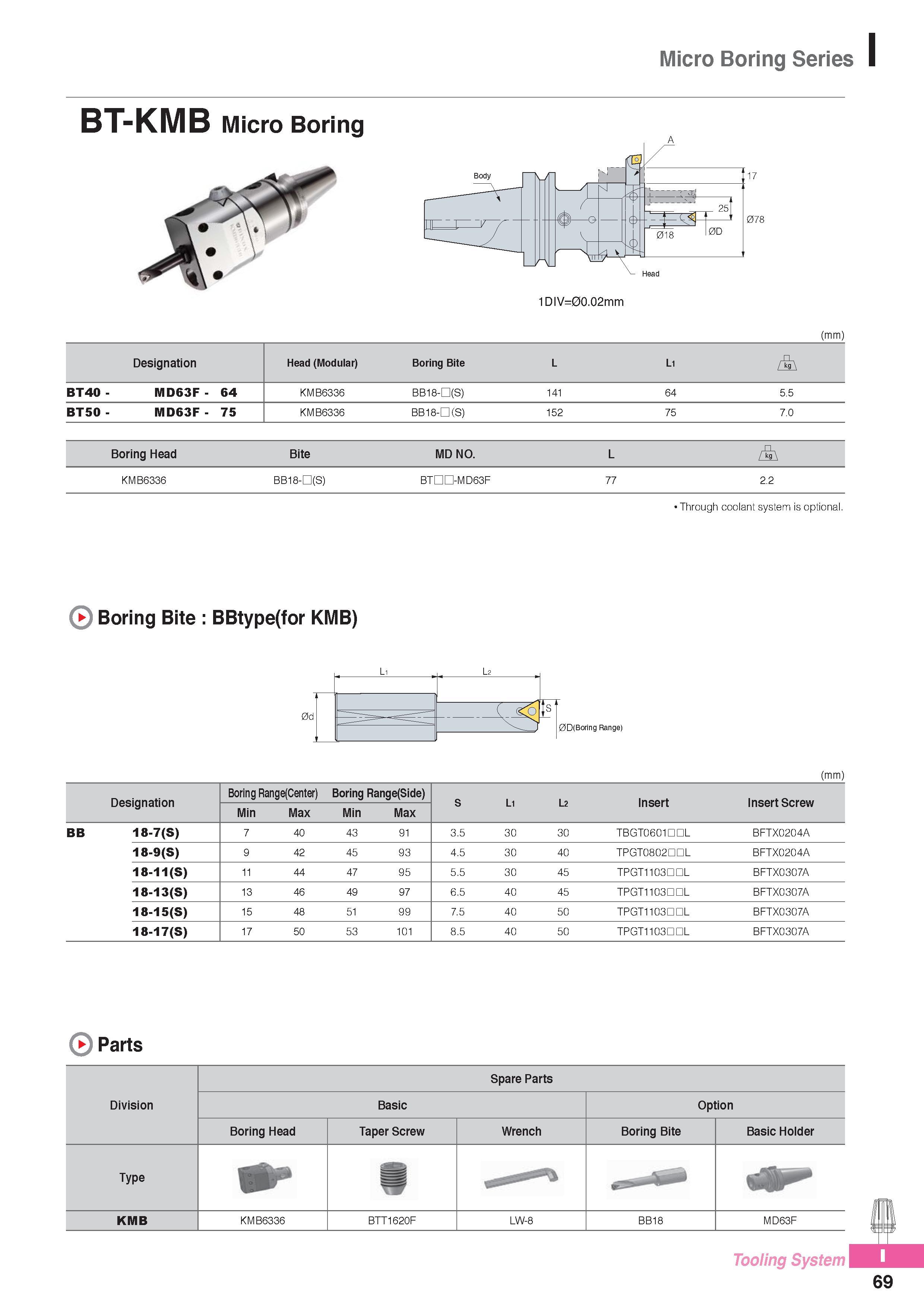

Micro Boring Series BT-KMB Micro Boring 1DIV=0O.O2mm (mm) Designation Head (Modular) Boring Bite L L1 BT40 - MD63F - 64 KMB6336 BB18-D(S) 141 64 5.5 BT50 - MD63F - 75 KMB6336 BB18-HKS) 152 75 7.0 Boring Head Bite MD NO. L KMB6336 BB18-D(S) BTDD-MD63F 77 2.2 Through coolant system is optional. Boring Bite BBtype(for KMB) (mm) Designation Boring Range(Center) Boring Range(Side) S L1 L2 Insert Insert Screw Min Max Min Max BB 18-7(S) 7 40 43 91 3.5 30 30 TBGT0601DDL BFTX0204A 18-9(S) 9 42 45 93 4.5 30 40 TPGT0802DDL BFTX0204A 18-11(S) 11 44 47 95 5.5 30 45 TPGT1103DDL BFTX0307A 18-13(S) 13 46 49 97 6.5 40 45 TPGT1103DDL BFTX0307A 18-15(S) 15 48 51 99 7.5 40 50 TPGT1103DDL BFTX0307A 18-17(S) 17 50 53 101 8.5 40 50 TPGT1103DDL BFTX0307A Parts Division Spare Parts Basic Option Boring Head Taper Screw Wrench Boring Bite Basic Holder Type Wr KMB KMB6336 BTT1620F LW-8 BB18 MD63F Tooling Syste l 69
