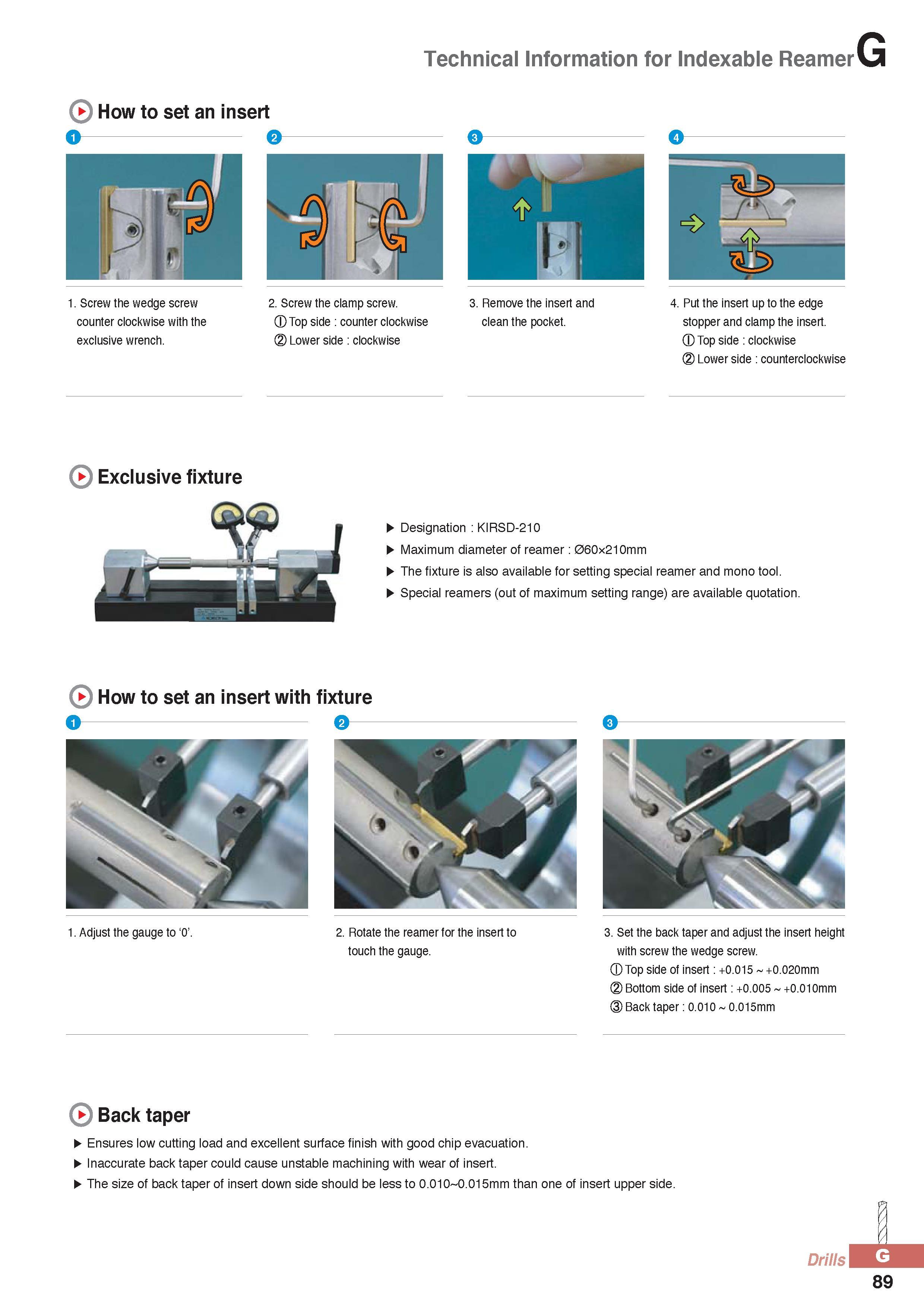

Technical Information for Indexable Reamer How to set an insert 5 - e 1. Screw the wedge screw counter clockwise with the exclusive wrench. 2. Screw the clamp screw. Top side counter clockwise (D Lower side clockwise 3. Remove the insert and clean the pocket. 4. Put the insert up to the edge stopper and clamp the insert. 0 Top side clockwise Lower side counterclockwise Exclusive fixture Designation KIRSD-210 Maximum diameter of reamer 060x210mm The fixture is also available for setting special reamer and mono tool. Special reamers (out of maximum setting range) are available quotation. How to set an insert with fixture 5 4 1. Adjust the gauge to ‘O’. 2. Rotate the reamer for the insert to touch the gauge. 3. Set the back taper and adjust the insert height with screw the wedge screw. Top side of insert +0.015 +0.020mm Bottom side of insert +0.005 +0.010mm Back taper 0.010 0.015mm Back taper Ensures low cutting load and excellent surface finish with good chip evacuation. Inaccurate back taper could cause unstable machining with wear of insert. The size of back taper of insert down side should be less to 0.010 0.015mm than one of insert upper side. Drills J. 89
