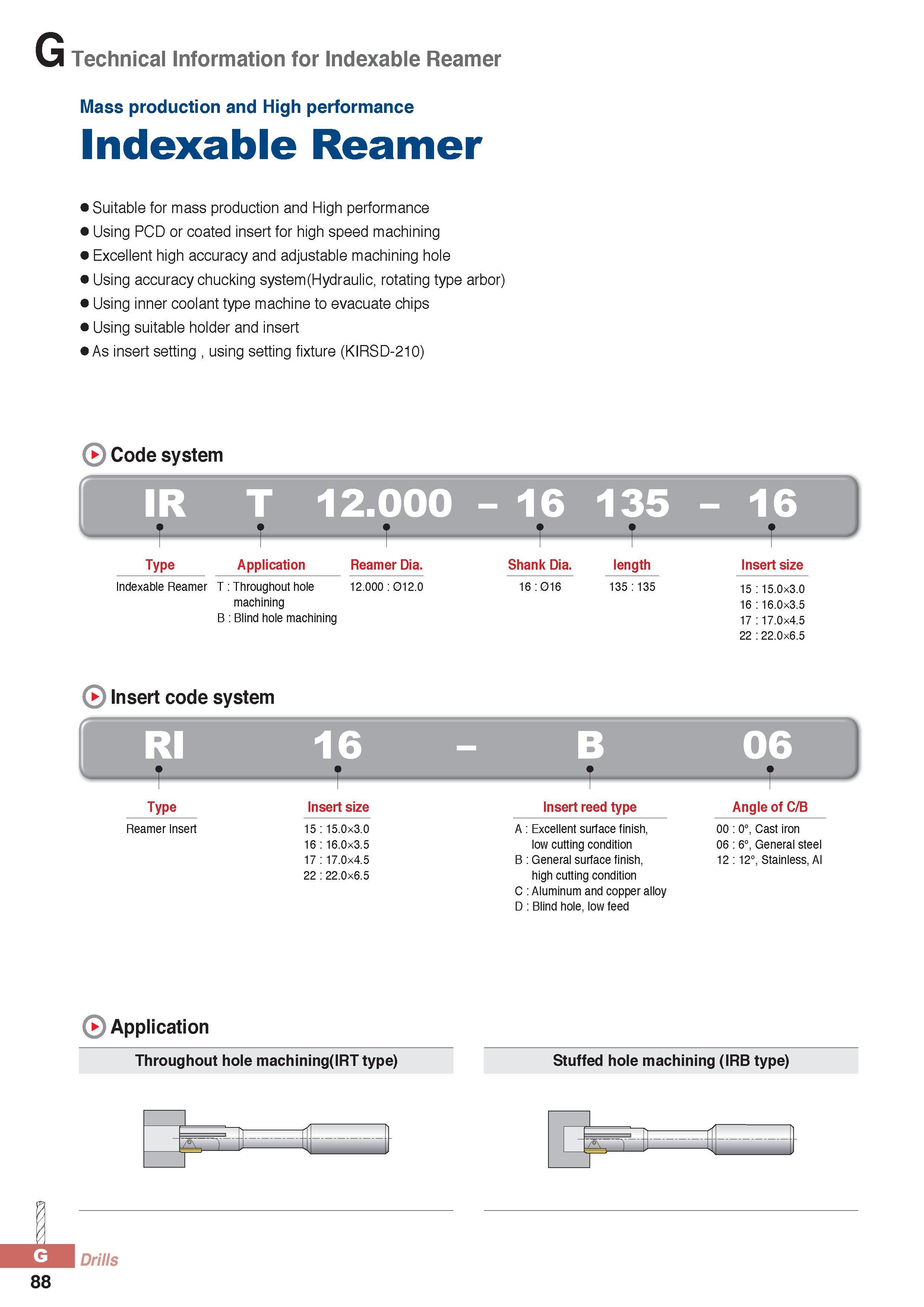

G Technical Information for Indexable Reamer Mass production and High performance Indexable Reamer Suitable for mass production and High performance Using PCD or coated insert for high speed machining Excellent high accuracy and adjustable machining hole Using accuracy chucking system(Hydraulic, rotating type arbor) Using inner coolant type machine to evacuate chips Using suitable holder and insert As insert setting using setting fixture (KIRSD-210) - 16 135 - 16 Code system IR T 12. Type Application Reamer Dia. Indexable Reamer T Throughout hole 12.000 012.0 machining B Blind hole machining Shank Dia. 16 016 length 135:135 Insert size 15 15.0x3.0 16 16.0x3.5 17 17.0x4.5 22 22.0x6.5 Insert code system RI 16 Type Reamer Insert Insert size 15 15.0x3.0 16 16.0x3.5 17 17.0x4.5 22 22.0x6.5 06 C Insert reed type Excellent surface finish, low cutting condition General surface finish, high cutting condition Aluminum and copper alloy Angle of C/B 0°, Cast iron 06 6°, General steel 12 12°, Stainless, Al D Blind hole, low feed A B Application Throughout hole machining(IRT type) Stuffed hole machining (IRB type) 1 p 4 1 - b J. Drills 88
