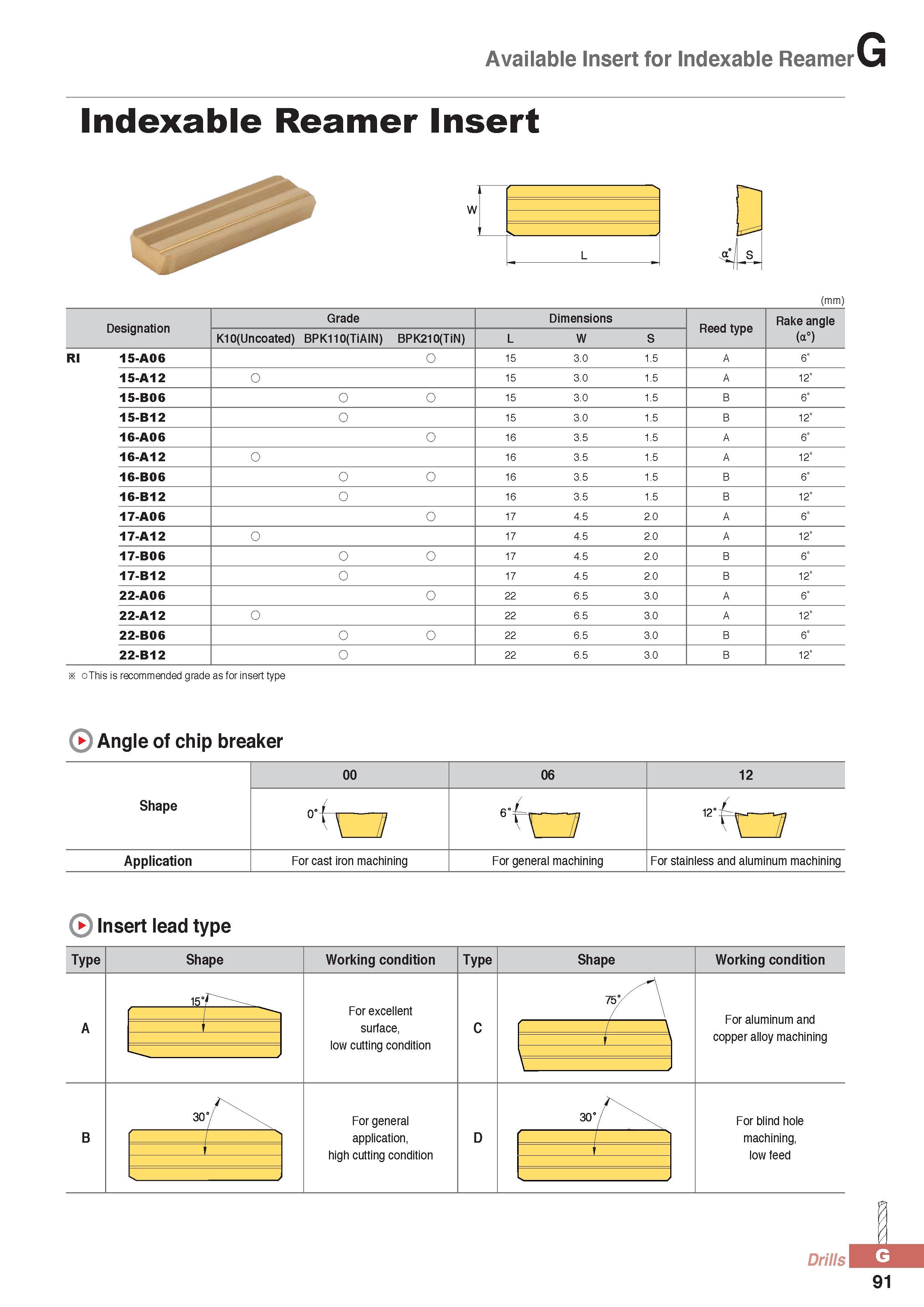

Available Insert for Indexable Reamer Indexable Reamer Insert w 11 r L (mm) Designation Grade Dimensions Reed type Rake angle K10(Uncoated) BPK110(TiAlN) BPK210(TiN) L W S (a°) RI 15-A06 O 15 3.0 1.5 A 6° 15-A12 O 15 3.0 1.5 A 12° 15-B06 15 3.0 1.5 B 6° 15-B12 O 15 3.0 1.5 B 12° 16-A06 O 16 3.5 1.5 A 6° 16-A12 O 16 3.5 1.5 A 12° 16-B06 16 3.5 1.5 B 6° 16-B12 O 16 3.5 1.5 B 12° 17-A06 O 17 4.5 2.0 A 6° 17-A12 O 17 4.5 2.0 A 12° 17-B06 17 4.5 2.0 B 6° 17-B12 O 17 4.5 2.0 B 12° 22-A06 O 22 6.5 3.0 A 6° 22-A12 O 22 6.5 3.0 A 12° 22-B06 22 6.5 3.0 B 6° 22-B12 O 22 6.5 3.0 B 12° x oThis is recommended grade as for insert type Angle of chip breaker Insert lead type Type Shape 15 Working condition For excellent surface, low cutting condition For general application, high cutting condition Type Shape Working condition For aluminum and copper alloy machining For blind hole machining, low feed Drills J. 91 C A B D
