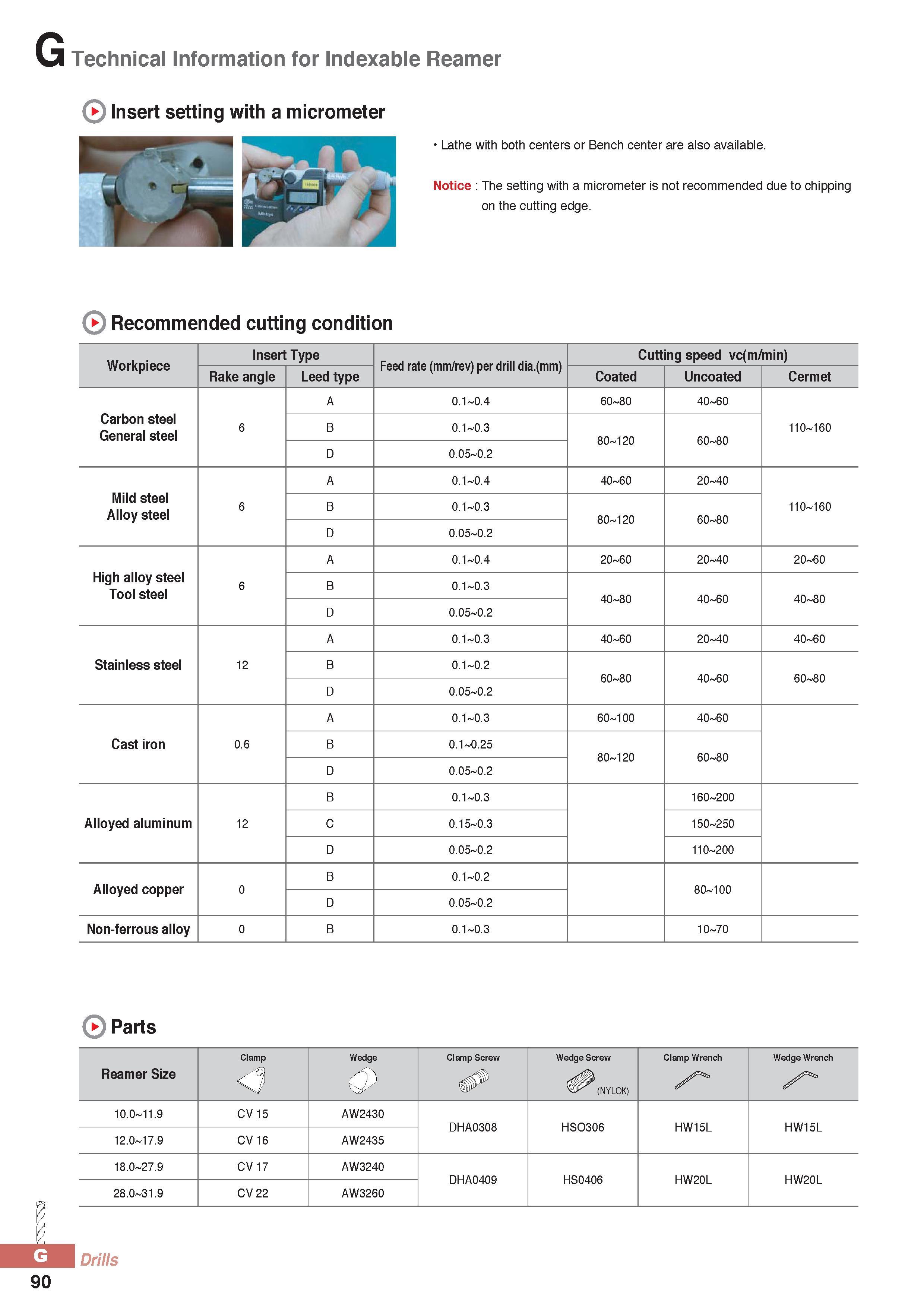

G Technical Information for Indexable Reamer Insert setting with a micrometer Lathe with both centers or Bench center are also available. Notice The setting with a micrometer is not recommended due to chipping on the cutting edge. Recommended cutting condition Workpiece Insert Type Feed rate (mm/rev) per drill dia.(mm) Cutting speed vc(m/min) Rake angle Leed type Coated Uncoated Cermet Carbon steel General steel 6 A 0.1 0.4 60 80 40 60 110 160 B 0.1 0.3 80 120 60 80 D 0.05 0.2 Mild steel Alloy steel 6 A 0.1 0.4 40 60 20 40 110 160 B 0.1 0.3 80 120 60 80 D 0.05 0.2 High alloy steel Tool steel 6 A 0.1 0.4 20 60 20 40 20 60 B 0.1 0.3 40 80 40 60 40 80 D 0.05 0.2 Stainless steel 12 A 0.1 0.3 40 60 20 40 40 60 B 0.1 0.2 60 80 40 60 60 80 D 0.05 0.2 Cast iron 0.6 A 0.1 0.3 60 100 40 60 B 0.1 0.25 80 120 60 80 D 0.05 0.2 Alloyed aluminum 12 B 0.1 0.3 160 200 C 0.15 0.3 150 250 D 0.05 0.2 110 200 Alloyed copper 0 B 0.1 0.2 80 100 D 0.05 0.2 Non-ferrous alloy 0 B 0.1 0.3 10 70 Parts Reamer Size Clamp <5 Wedge Clamp Screw Wedge Screw (NYLOK) Clamp Wrench Wedge Wrench 10.0 11.9 CV 15 AW2430 DHA0308 HS0306 HW15L HW15L 12.0 17.9 CV 16 AW2435 18.0 27.9 CV 17 AW3240 DHA0409 HS0406 HW20L HW20L 28.0 31.9 CV 22 AW3260 JL- _G Drills 90
