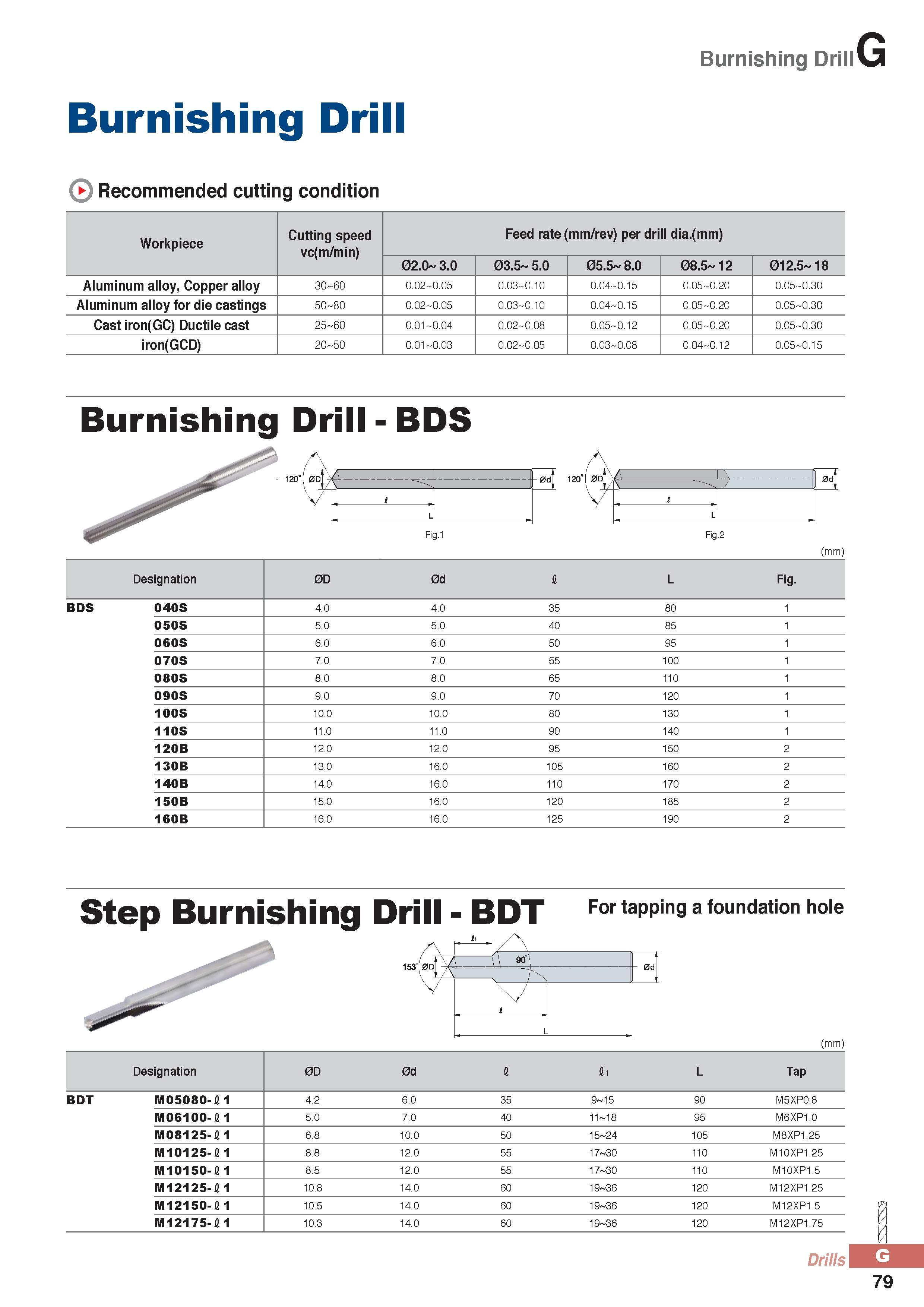

Burnishing Drill Burnishing Drill Recommended cutting condition Workpiece Cutting speed vc(m/min) Feed rate (mm/rev) per drill dia.(mm) 02.O 3.0 03.5 5.0 05.5 8.0 08.5 12 012.5 18 Aluminum alloy, Copper alloy 30 60 0.02 0.05 0.03 0.10 0.04 0.15 0.05 0.20 0.05 0.30 Aluminum alloy for die castings 50 80 0.02 0.05 0.03 0.10 0.04 0.15 0.05 0.20 0.05 0.30 Cast iron(GC) Ductile cast 25 60 0.01 0.04 0.02 0.08 0.05 0.12 0.05 0.20 0.05 0.30 iron(GCD) 20 50 0.01 0.03 0.02 0.05 0.03 0.08 0.04 0.12 0.05 0.15 Burnishing Drill - BDS - 120" 0DT- -0df 120° 0D ) -0df \r -1 V/ I L L Fig.1 Fig.2 (mm) Designation 0D 0d l L Fig. BDS 040S 4.0 4.0 35 80 1 050S 5.0 5.0 40 85 1 060S 6.0 6.0 50 95 1 070S 7.0 7.0 55 100 1 080S 8.0 8.0 65 110 1 090S 9.0 9.0 70 120 1 100S 10.0 10.0 80 130 1 110S 11.0 11.0 90 140 1 120B 12.0 12.0 95 150 2 130B 13.0 16.0 105 160 2 140B 14.0 16.0 110 170 2 150B 15.0 16.0 120 185 2 160B 16.0 16.0 125 190 2 Step Burnishing Drill - BDT For tapping a foundation hole (mm) Designation 0D 0d l l L Tap BDT M05080-11 4.2 6.0 35 9 15 90 M5XP0.8 M06100-11 5.0 7.0 40 11 18 95 M6XP1.0 M08125-11 6.8 10.0 50 15 24 105 M8XP1.25 M10125-11 8.8 12.0 55 17 30 110 M10XP1.25 M10150-11 8.5 12.0 55 17 30 110 M10XP1.5 M12125-11 10.8 14.0 60 19 36 120 M12XP1.25 M12150-11 10.5 14.0 60 19 36 120 M12XP1.5 M12175-11 10.3 14.0 60 19 36 120 M12XP1.75 J. Drills 79
