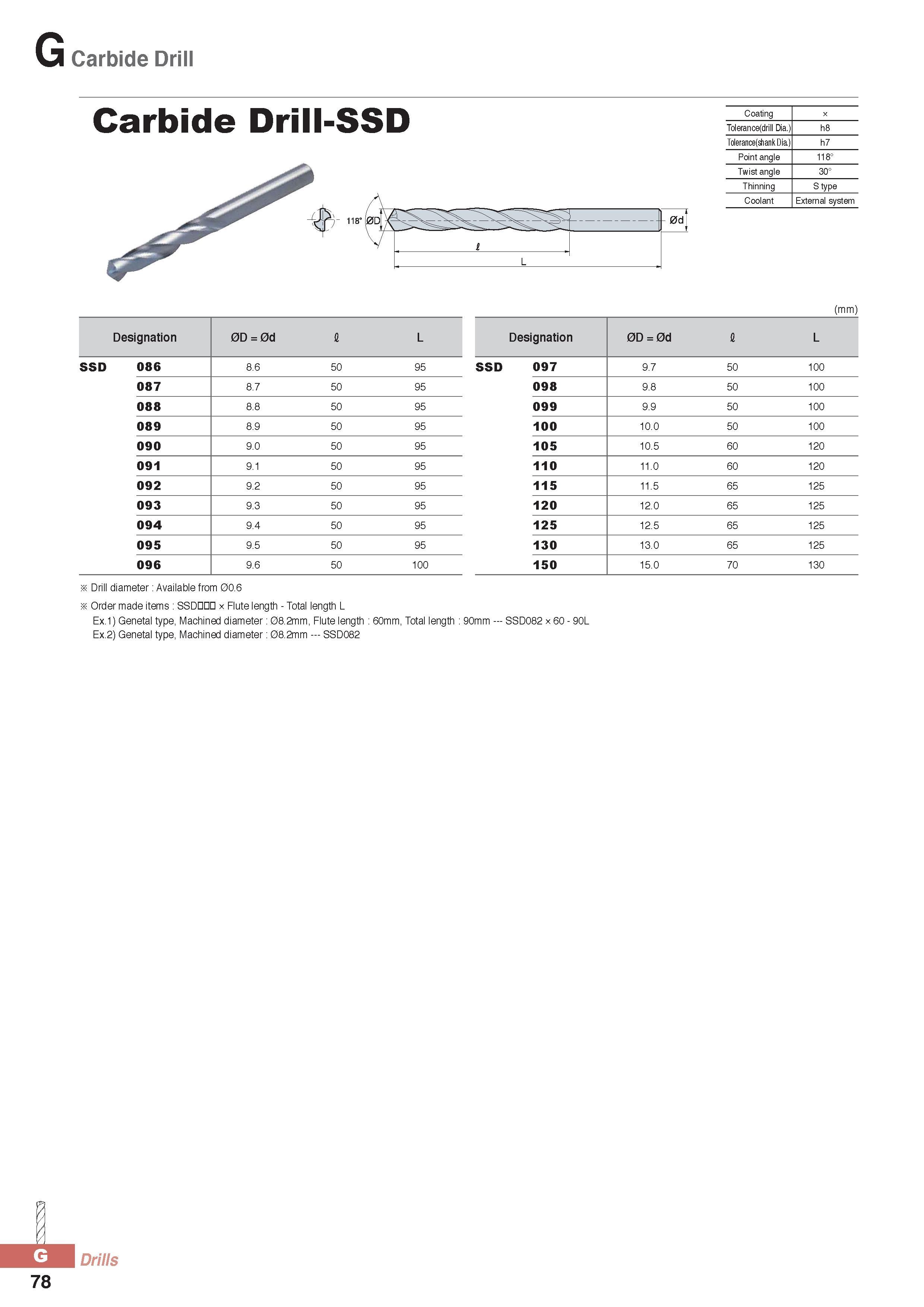

Carbide Drill Carbide Drill-SSD 118° - 0(1 1 L Coating x Tolerance(drill Dia.) h8 Tolerance(shank Dia.) h7 Point angle 118° Twist angle 30° Thinning S type Coolant External system (mm) Designation 0D = 0d I L Designation 0D = 0d I L SSD 086 8.6 50 95 SSD 097 9.7 50 100 087 8.7 50 95 098 9.8 50 100 088 8.8 50 95 099 9.9 50 100 089 8.9 50 95 100 10.0 50 100 090 9.0 50 95 105 10.5 60 120 091 9.1 50 95 110 11.0 60 120 092 9.2 50 95 115 11.5 65 125 093 9.3 50 95 120 12.0 65 125 094 9.4 50 95 125 12.5 65 125 095 9.5 50 95 130 13.0 65 125 096 9.6 50 100 150 15.0 70 130 x Drill diameter Available from 00.6 x Order madeitems SSDDCD x Flute length - Total length L Ex.1) Genetal type, Machined diameter 08.2mm, Flute length 60mm, Total length 90mm - SSD082 x 60 - 90L Ex.2) Genetal type, Machined diameter 08.2mm - SSD082 J, Drills 78
