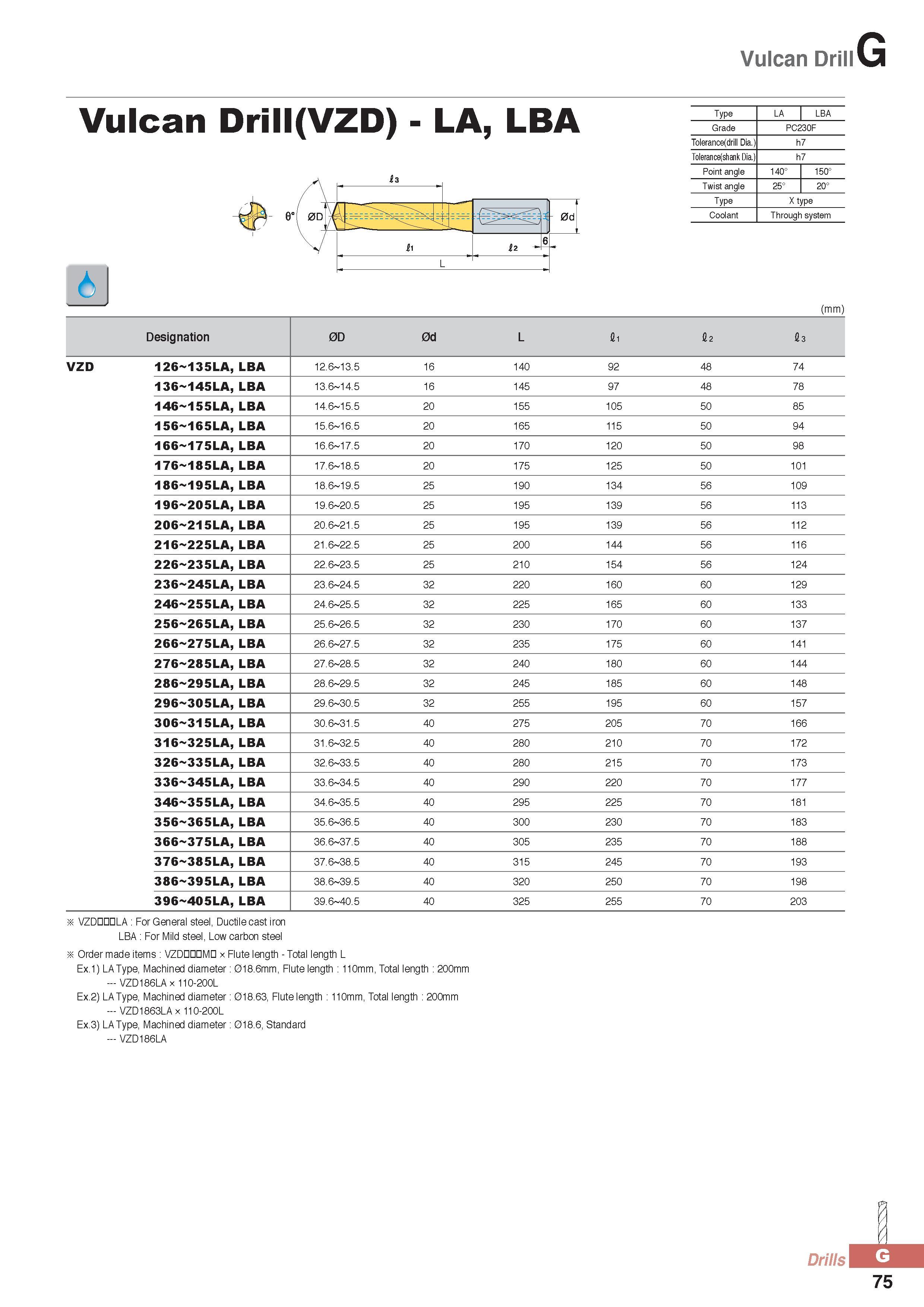

Vulcan Drill Vulcan Drill(VZD) - LA, LBA Type LA LBA Grade PC230F Tolerance(drill Dia.) h7 Tolerance(shank Dia.) h7 Point angle 140° 150° Twist angle 25° 20° Type X type Coolant Through system (mm) Designation 0D 0d L fii 12 13 VZD 126 135LA, LBA 12.6 13.5 16 140 92 48 74 136 145LA, LBA 13.6 14.5 16 145 97 48 78 146 155LA, LBA 14.6 15.5 20 155 105 50 85 156 165LA, LBA 15.6 16.5 20 165 115 50 94 166 175LA, LBA 16.6 17.5 20 170 120 50 98 176 185LA, LBA 17.6 18.5 20 175 125 50 101 186 195LA, LBA 18.6 19.5 25 190 134 56 109 196 205LA, LBA 19.6 20.5 25 195 139 56 113 206 215LA, LBA 20.6 21.5 25 195 139 56 112 216 225LA, LBA 21.6 22.5 25 200 144 56 116 226 235LA, LBA 22.6 23.5 25 210 154 56 124 236 245LA, LBA 23.6 24.5 32 220 160 60 129 246 255LA, LBA 24.6 25.5 32 225 165 60 133 256 265LA, LBA 25.6 26.5 32 230 170 60 137 266 275LA, LBA 26.6 27.5 32 235 175 60 141 276 285LA, LBA 27.6 28.5 32 240 180 60 144 286 295LA, LBA 28.6 29.5 32 245 185 60 148 296 305LA, LBA 29.6 30.5 32 255 195 60 157 306 315LA, LBA 30.6 31.5 40 275 205 70 166 316 325LA, LBA 31.6 32.5 40 280 210 70 172 326 335LA, LBA 32.6 33.5 40 280 215 70 173 336 345LA, LBA 33.6 34.5 40 290 220 70 177 346 355LA, LBA 34.6 35.5 40 295 225 70 181 356 365LA, LBA 35.6 36.5 40 300 230 70 183 366 375LA, LBA 36.6 37.5 40 305 235 70 188 376 385LA, LBA 37.6 38.5 40 315 245 70 193 386 395LA, LBA 38.6 39.5 40 320 250 70 198 396 405LA, LBA 39.6 40.5 40 325 255 70 203 rn VZDDULA ForGeneral steel, Ductilecastiron LBA For Mild steel, Low carbon steel rn Order madeitems VZDDHMD x Flute length - Total length L Ex.1) LA Type, Machined diameter 018.6mm, Flute length 110mm, Total length 200mm - VZD186LA x 110-200L Ex.2) LA Type, Machined diameter 018.63, Flute length 110mm, Total length 200mm - VZD1863LA x 110-200L Ex.3) LA Type, Machined diameter 018.6, Standard - VZD186LA Drills J. 75
