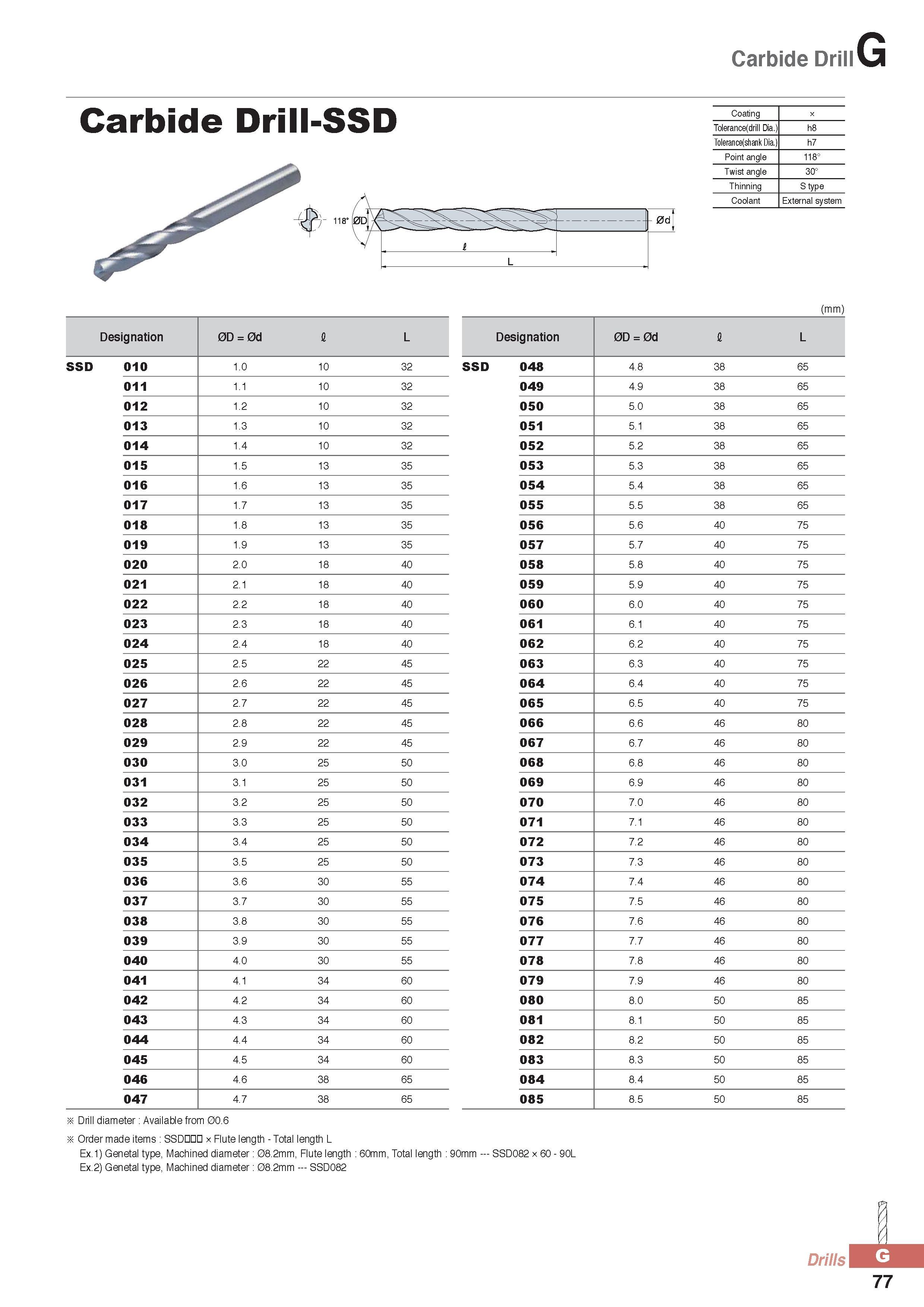

Carbide Drill Carbide Drill-SSD I - m i L Coating x Tolerance(drill Dia.) h8 Tolerance(shank Dia.) h7 Point angle 118° Twist angle 30° Thinning S type Coolant External system (mm) Designation 0D = 0d I L SSD 010 1.0 10 32 011 1.1 10 32 012 1.2 10 32 013 1.3 10 32 014 1.4 10 32 015 1.5 13 35 016 1.6 13 35 017 1.7 13 35 018 1.8 13 35 019 1.9 13 35 020 2.0 18 40 021 2.1 18 40 022 2.2 18 40 023 2.3 18 40 024 2.4 18 40 025 2.5 22 45 026 2.6 22 45 027 2.7 22 45 028 2.8 22 45 029 2.9 22 45 030 3.0 25 50 031 3.1 25 50 032 3.2 25 50 033 3.3 25 50 034 3.4 25 50 035 3.5 25 50 036 3.6 30 55 037 3.7 30 55 038 3.8 30 55 039 3.9 30 55 040 4.0 30 55 041 4.1 34 60 042 4.2 34 60 043 4.3 34 60 044 4.4 34 60 045 4.5 34 60 046 4.6 38 65 047 4.7 38 65 Designation 0D = 0d I L SSD 048 4.8 38 65 049 4.9 38 65 050 5.0 38 65 051 5.1 38 65 052 5.2 38 65 053 5.3 38 65 054 5.4 38 65 055 5.5 38 65 056 5.6 40 75 057 5.7 40 75 058 5.8 40 75 059 5.9 40 75 060 6.0 40 75 061 6.1 40 75 062 6.2 40 75 063 6.3 40 75 064 6.4 40 75 065 6.5 40 75 066 6.6 46 80 067 6.7 46 80 068 6.8 46 80 069 6.9 46 80 070 7.0 46 80 071 7.1 46 80 072 7.2 46 80 073 7.3 46 80 074 7.4 46 80 075 7.5 46 80 076 7.6 46 80 077 7.7 46 80 078 7.8 46 80 079 7.9 46 80 080 8.0 50 85 081 8.1 50 85 082 8.2 50 85 083 8.3 50 85 084 8.4 50 85 085 8.5 50 85 x Drill diameter Available from 00.6 x Order madeitems SSDUD x Flute length - Total length L Ex.1) Genetal type, Machined diameter 08.2mm, Flute length 60mm, Total length 90mm - SSD082 x 60 - 90L Ex.2) Genetal type, Machined diameter 08.2mm - SSD082 Drills J. 77
