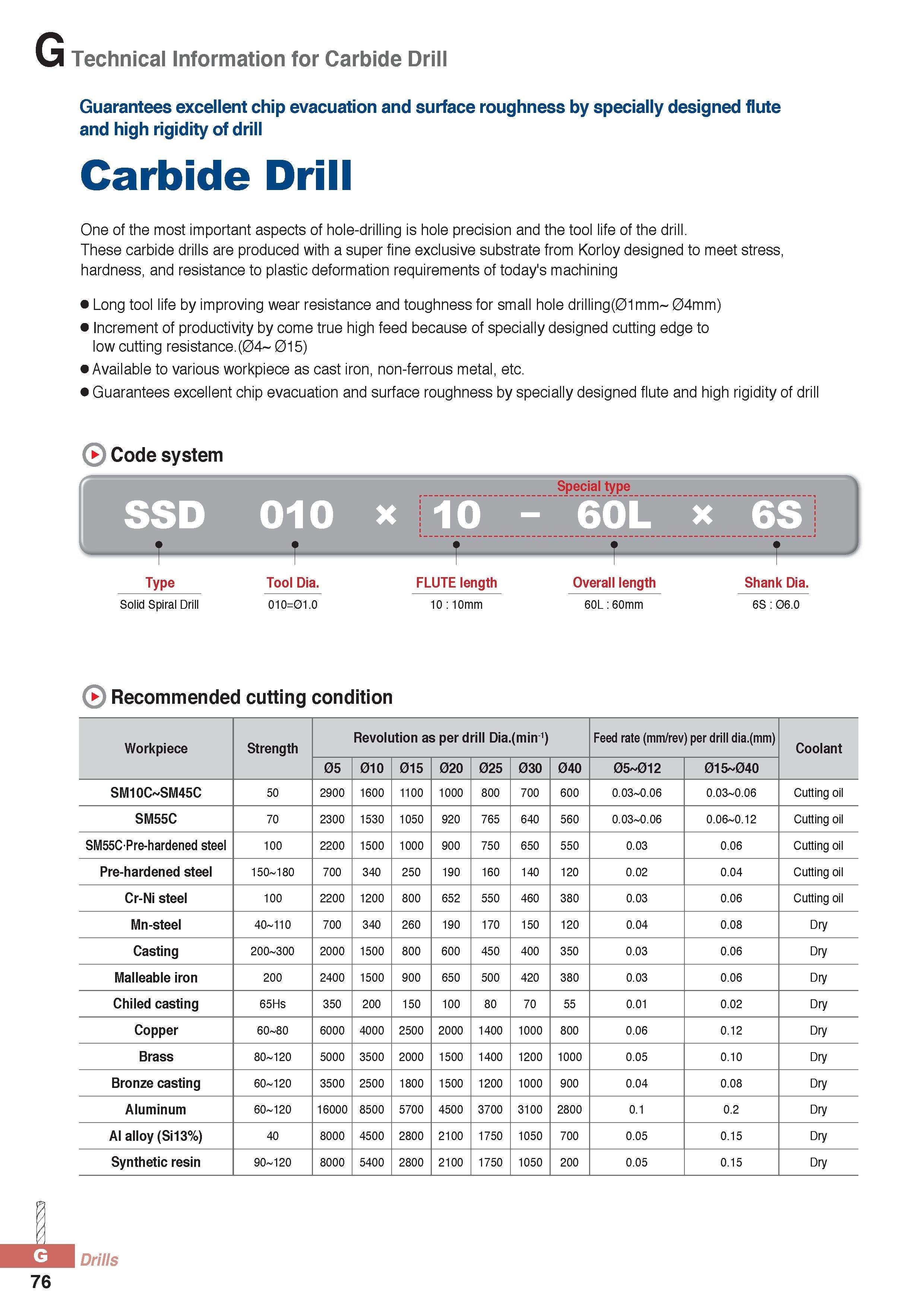

Technical Information for Carbide Drill Guarantees excellent chip evacuation and surface roughness by specially designed flute and high rigidity of drill Carbide Drill One of the most important aspects of hole-drilling is hole precision and the tool life of the drill. These carbide drills are produced with a super fine exclusive substrate from Korloy designed to meet stress, hardness, and resistance to plastic deformation requirements of today's machining Long tool life by improving wear resistance and toughness for small hole drilling(01mm 04mm) Increment of productivity by come true high feed because of specially designed cutting edge to low cutting resistance.(04 015) Available to various workpiece as cast iron, non-ferrous metal, etc. Guarantees excellent chip evacuation and surface roughness by specially designed flute and high rigidity of drill Code system Type Tool Dia. FLUTE length Overall length Shank Dia. Solid Spiral Drill 010=01.0 10 10mm 60L 60mm 6S 06.0 Recommended cutting condition Workpiece Strength Revolution as per drill Dia.(min-1) Feed rate (mm/rev) per drill dia.(mm) Coolant 05 01O 015 02O 025 03O 04O 05 012 015 04O SM1OC SM45C 50 2900 1600 1100 1000 800 700 600 0.03 0.06 0.03 0.06 Cutting oil SM55C 70 2300 1530 1050 920 765 640 560 0.03 0.06 0.06 0.12 Cutting oil SM55CPre-hardened steel 100 2200 1500 1000 900 750 650 550 0.03 0.06 Cutting oil Pre-hardened steel 150 180 700 340 250 190 160 140 120 0.02 0.04 Cutting oil Cr-Ni steel 100 2200 1200 800 652 550 460 380 0.03 0.06 Cutting oil Mn-steel 40 110 700 340 260 190 170 150 120 0.04 0.08 Dry Casting 200 300 2000 1500 800 600 450 400 350 0.03 0.06 Dry Malleable iron 200 2400 1500 900 650 500 420 380 0.03 0.06 Dry Chiled casting 65Hs 350 200 150 100 80 70 55 0.01 0.02 Dry Copper 60 80 6000 4000 2500 2000 1400 1000 800 0.06 0.12 Dry Brass 80 120 5000 3500 2000 1500 1400 1200 1000 0.05 0.10 Dry Bronze casting 60 120 3500 2500 1800 1500 1200 1000 900 0.04 0.08 Dry Aluminum 60 120 16000 8500 5700 4500 3700 3100 2800 0.1 0.2 Dry Al alloy (Si13%) 40 8000 4500 2800 2100 1750 1050 700 0.05 0.15 Dry Synthetic resin 90 120 8000 5400 2800 2100 1750 1050 200 0.05 0.15 Dry JL Drills 76
