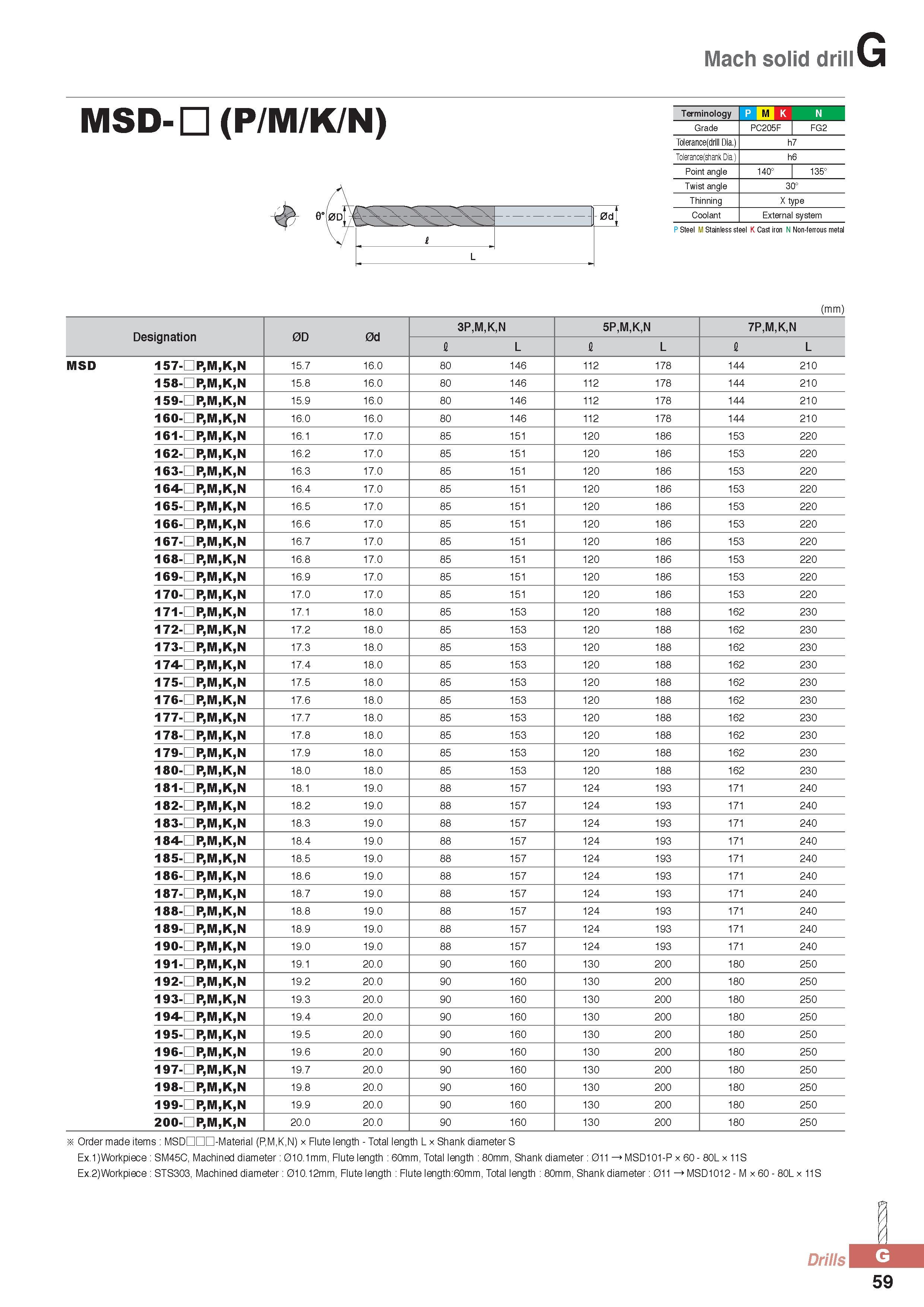

Mach solid drill MSD- n (P/M/K/N) Terminology M K Grade PC205F FG2 Tolerance(drill Dia.) h7 Tolerance(shank Dia.) h6 Point angle 140° 135° Twist angle 30° Thinning X type Coolant External system P Steel M Stainless steel K Cast Iron N Non-ferrous metal (mm) Designation 0D 0d 3P,M,K,N 5P,M,K,N 7P,M,K,N I L I L I L MSD 157-DP,M,K,N 15.7 16.0 80 146 112 178 144 210 158- P,M,K,N 15.8 16.0 80 146 112 178 144 210 159-DP,M,K,N 15.9 16.0 80 146 112 178 144 210 160- P,M,K,N 16.0 16.0 80 146 112 178 144 210 161-DP,M,K,N 16.1 17.0 85 151 120 186 153 220 162- P,M,K,N 16.2 17.0 85 151 120 186 153 220 163- P,M,K,N 16.3 17.0 85 151 120 186 153 220 164- P,M,K,N 16.4 17.0 85 151 120 186 153 220 165- P,M,K,N 16.5 17.0 85 151 120 186 153 220 166- P,M,K,N 16.6 17.0 85 151 120 186 153 220 167-DP,M,K,N 16.7 17.0 85 151 120 186 153 220 168- P,M,K,N 16.8 17.0 85 151 120 186 153 220 169- P,M,K,N 16.9 17.0 85 151 120 186 153 220 170-DP,M,K,N 17.0 17.0 85 151 120 186 153 220 171-DP,M,K,N 17.1 18.0 85 153 120 188 162 230 172-DP,M,K,N 17.2 18.0 85 153 120 188 162 230 173-DP,M,K,N 17.3 18.0 85 153 120 188 162 230 174-DP,M,K,N 17.4 18.0 85 153 120 188 162 230 175-DP,M,K,N 17.5 18.0 85 153 120 188 162 230 176-DP,M,K,N 17.6 18.0 85 153 120 188 162 230 177-DP,M,K,N 17.7 18.0 85 153 120 188 162 230 178-DP,M,K,N 17.8 18.0 85 153 120 188 162 230 179-DP,M,K,N 17.9 18.0 85 153 120 188 162 230 180- P,M,K,N 18.0 18.0 85 153 120 188 162 230 181-DP,M,K,N 18.1 19.0 88 157 124 193 171 240 182- P,M,K,N 18.2 19.0 88 157 124 193 171 240 183- P,M,K,N 18.3 19.0 88 157 124 193 171 240 184- P,M,K,N 18.4 19.0 88 157 124 193 171 240 185- P,M,K,N 18.5 19.0 88 157 124 193 171 240 186- P,M,K,N 18.6 19.0 88 157 124 193 171 240 187-DP,M,K,N 18.7 19.0 88 157 124 193 171 240 188- P,M,K,N 18.8 19.0 88 157 124 193 171 240 189- P,M,K,N 18.9 19.0 88 157 124 193 171 240 190- P,M,K,N 19.0 19.0 88 157 124 193 171 240 191-DP,M,K,N 19.1 20.0 90 160 130 200 180 250 192-DP,M,K,N 19.2 20.0 90 160 130 200 180 250 193-DP,M,K,N 19.3 20.0 90 160 130 200 180 250 194-DP,M,K,N 19.4 20.0 90 160 130 200 180 250 195-DP,M,K,N 19.5 20.0 90 160 130 200 180 250 196- P,M,K,N 19.6 20.0 90 160 130 200 180 250 197-DP,M,K,N 19.7 20.0 90 160 130 200 180 250 198- P,M,K,N 19.8 20.0 90 160 130 200 180 250 199-DP,M,K,N 19.9 20.0 90 160 130 200 180 250 200- P,M,K,N 20.0 20.0 90 160 130 200 180 250 rn Order made items MSDHnH-Material (P,M,K,N) x Flute length - Total length L x Shank diameter S Ex.1)Workpiece SM45C, Machined diameter 010.1mm, Flute length 60mm, Total length 80mm, Shank diameter 011 > MSD101-P x 60 - 80L x 11S Ex.2)Workpiece STS303, Machined diameter 010.12mm, Flute length Flute length:60mm, Total length 80mm, Shank diameter 011 > MSD1012 - M x 60 - 80L x 11S -L 59
