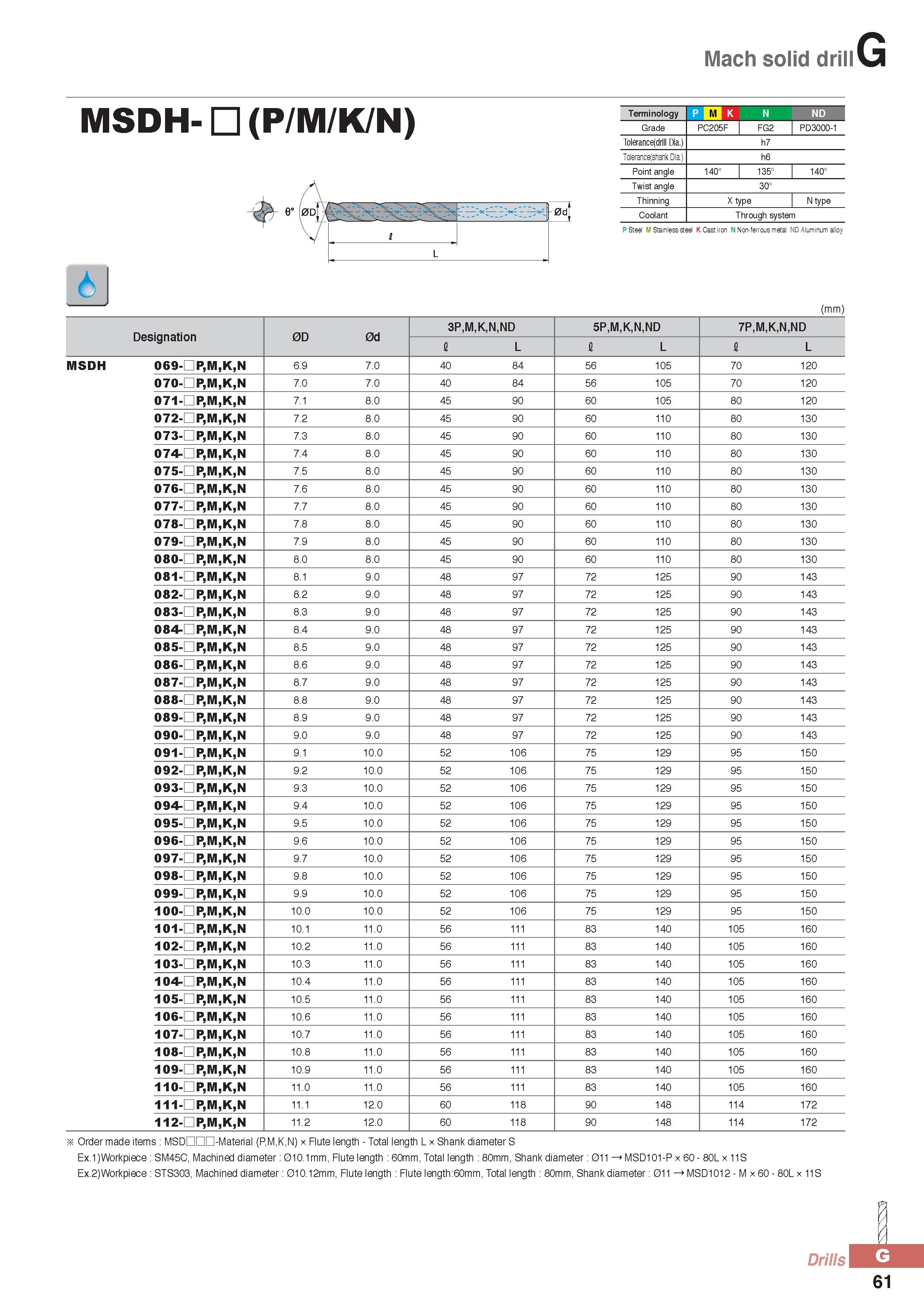

Mach solid drill MSDH- (P/M/K/N) -0dj i L Terminology K N ND 1 Grade PC205F FG2 PD3000-1 Tolerance(drill Dia.) h7 Tolerance(shank Dia.) h6 Point angle 0° 5° 3 0° Twist angle 30° Thinning X type N type Coolant Through system P Steel M Stainless steel K Cast iron N Non-ferrous metal ND Aluminum alloy (mm) Designation 0D 0d 3P,M,K,N,ND 5P,M,K,N,ND 7P,M,K,N,ND I L I L I L MSDH 069-GP,M,K,N 6.9 7.0 40 84 56 105 70 120 070-DP,M,K,N 7.0 7.0 40 84 56 105 70 120 071-DP,M,K,N 7.1 8.0 45 90 60 105 80 120 072-DP,M,K,N 7.2 8.0 45 90 60 110 80 130 073-DP,M,K,N 7.3 8.0 45 90 60 110 80 130 074-DP,M,K,N 7.4 8.0 45 90 60 110 80 130 075-DP,M,K,N 7.5 8.0 45 90 60 110 80 130 076-DP,M,K,N 7.6 8.0 45 90 60 110 80 130 077-DP,M,K,N 7.7 8.0 45 90 60 110 80 130 078-DP,M,K,N 7.8 8.0 45 90 60 110 80 130 079-DP,M,K,N 7.9 8.0 45 90 60 110 80 130 080- P,M,K,N 8.0 8.0 45 90 60 110 80 130 081- P,M,K,N 8.1 9.0 48 97 72 125 90 143 082- P,M,K,N 8.2 9.0 48 97 72 125 90 143 083- P,M,K,N 8.3 9.0 48 97 72 125 90 143 084- P,M,K,N 8.4 9.0 48 97 72 125 90 143 085- P,M,K,N 8.5 9.0 48 97 72 125 90 143 086- P,M,K,N 8.6 9.0 48 97 72 125 90 143 087-DP,M,K,N 8.7 9.0 48 97 72 125 90 143 088- P,M,K,N 8.8 9.0 48 97 72 125 90 143 089- P,M,K,N 8.9 9.0 48 97 72 125 90 143 090- P,M,K,N 9.0 9.0 48 97 72 125 90 143 091- P,M,K,N 9.1 10.0 52 106 75 129 95 150 092- P,M,K,N 9.2 10.0 52 106 75 129 95 150 093- P,M,K,N 9.3 10.0 52 106 75 129 95 150 094- P,M,K,N 9.4 10.0 52 106 75 129 95 150 095- P,M,K,N 9.5 10.0 52 106 75 129 95 150 096- P,M,K,N 9.6 10.0 52 106 75 129 95 150 097-DP,M,K,N 9.7 10.0 52 106 75 129 95 150 098- P,M,K,N 9.8 10.0 52 106 75 129 95 150 099- P,M,K,N 9.9 10.0 52 106 75 129 95 150 100- P,M,K,N 10.0 10.0 52 106 75 129 95 150 101-DP,M,K,N 10.1 11.0 56 111 83 140 105 160 102- P,M,K,N 10.2 11.0 56 111 83 140 105 160 103- P,M,K,N 10.3 11.0 56 111 83 140 105 160 104- P,M,K,N 10.4 11.0 56 111 83 140 105 160 105-DP,M,K,N 10.5 11.0 56 111 83 140 105 160 106- P,M,K,N 10.6 11.0 56 111 83 140 105 160 107-DP,M,K,N 10.7 11.0 56 111 83 140 105 160 108- P,M,K,N 10.8 11.0 56 111 83 140 105 160 109- P,M,K,N 10.9 11.0 56 111 83 140 105 160 110-DP,M,K,N 11.0 11.0 56 111 83 140 105 160 111-DP,M,K,N 11.1 12.0 60 118 90 148 114 172 112-DP,M,K,N 11.2 12.0 60 118 90 148 114 172 Order made items MSDDDD-Material (P,M,K,N) x Flute length - Total length L x Shank diameter S Ex.1)Workplece SM45C, Machined diameter 010.1mm, Flute length 60mm, Total length 80mm, Shank Ex.2)Workpiece STS303, Machined diameter 010.12mm, Flute length Flute length:60mm, Total length diameter 011 > MSD101-P 80mm, Shank diameter 011 x 60 - 80L x 11S MSD1012 - M x 60 - 80L x 11S Drills J. 61
