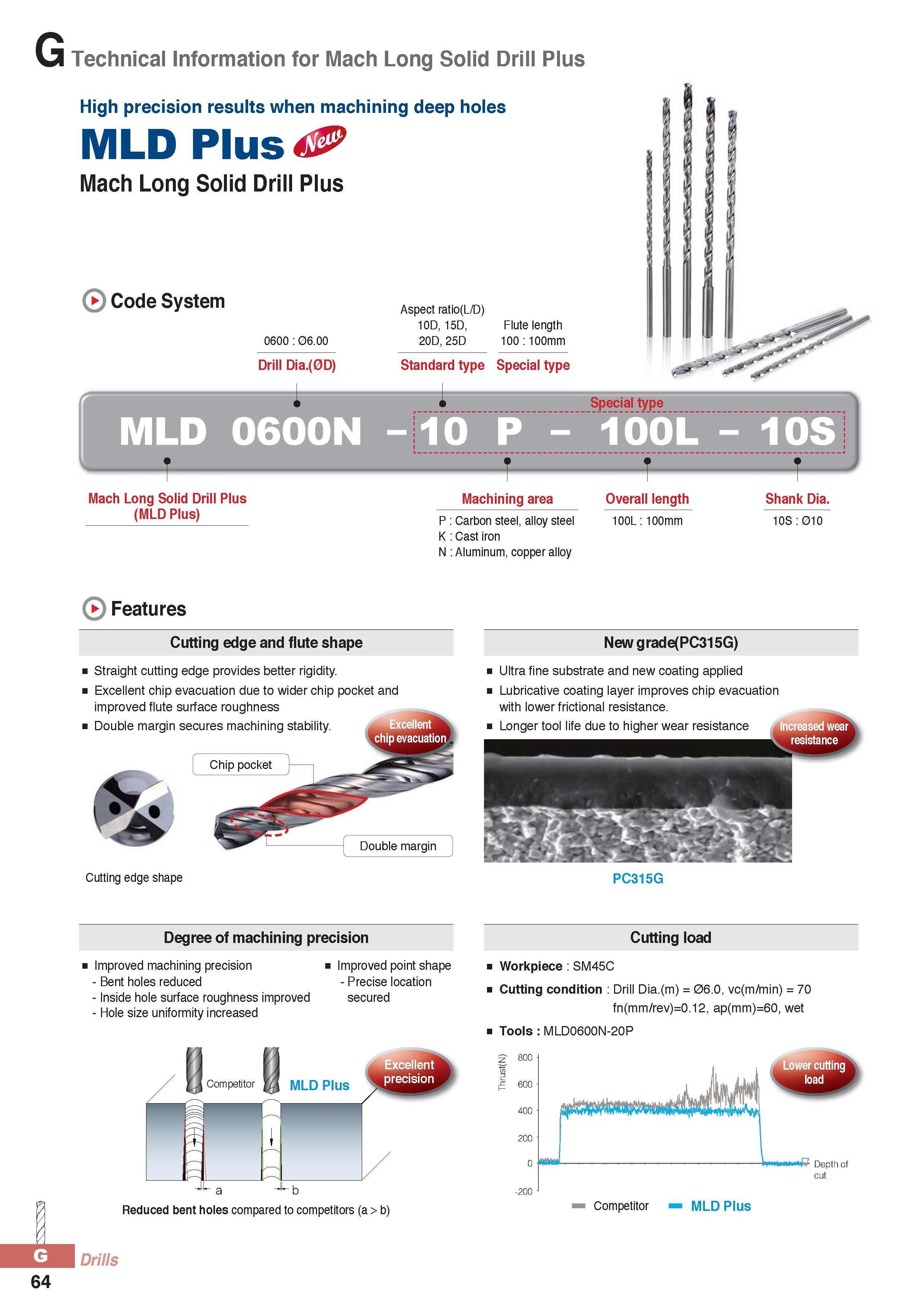

Drilling deep hole in metal Solid carbide twist drills Korloy MLD Plus Features Straight cutting edge provides better rigidity Excellent chip evacuation due to wider chip pocket and improved flute surface roughness Double margin secures machining stability. Chip pocket Double margin New grade(PC315G) Ultra fine substrate and new coating applied Lubricative coating layer improves chip evacuation with lower frictional resistance. Longer tool life due to higher wear resistance Cutting edge shape PC315G Degree of machining precision Improved machining precision Improved point shape - Bent holes reduced - Precise location - Inside hole surface roughness improved secured - Hole size uniformity increased .1 a b Reduced bent holes compared to competitors (a > b) Drills Cutting load Workpiece SM45C Cutting condition Drill Dia.(m) = 06.0, vc(m/min) = 70 fn(mm/rev)=0.12, ap(mm)=60, wet Tools MLD0600N-20P 2 80C Hr. 6CC 4CC 2CC C -2CC J J- Depth of cut Competitor MLD Plus 64 Technical Information for Mach Long Solid Drill Plus High precision results when machining deep holes MLD Plus aJP Mach Long Solid Drill Plus Code System 0600 06.00 Drill Dia.(0D) Aspect ratio(L/D) 10D, 15D, 20D, 25D Flute length 100 100mm Standard type Special type Special type MLD 0600N - 10 P - 100L - 10S Mach Long Solid Drill Plus (MLD Plus) Machining area P Carbon steel, alloy steel K Cast iron N Aluminum, copper alloy Overall length 100L 100mm Shank Dia. 10S 010 Cutting edge and flute shape
