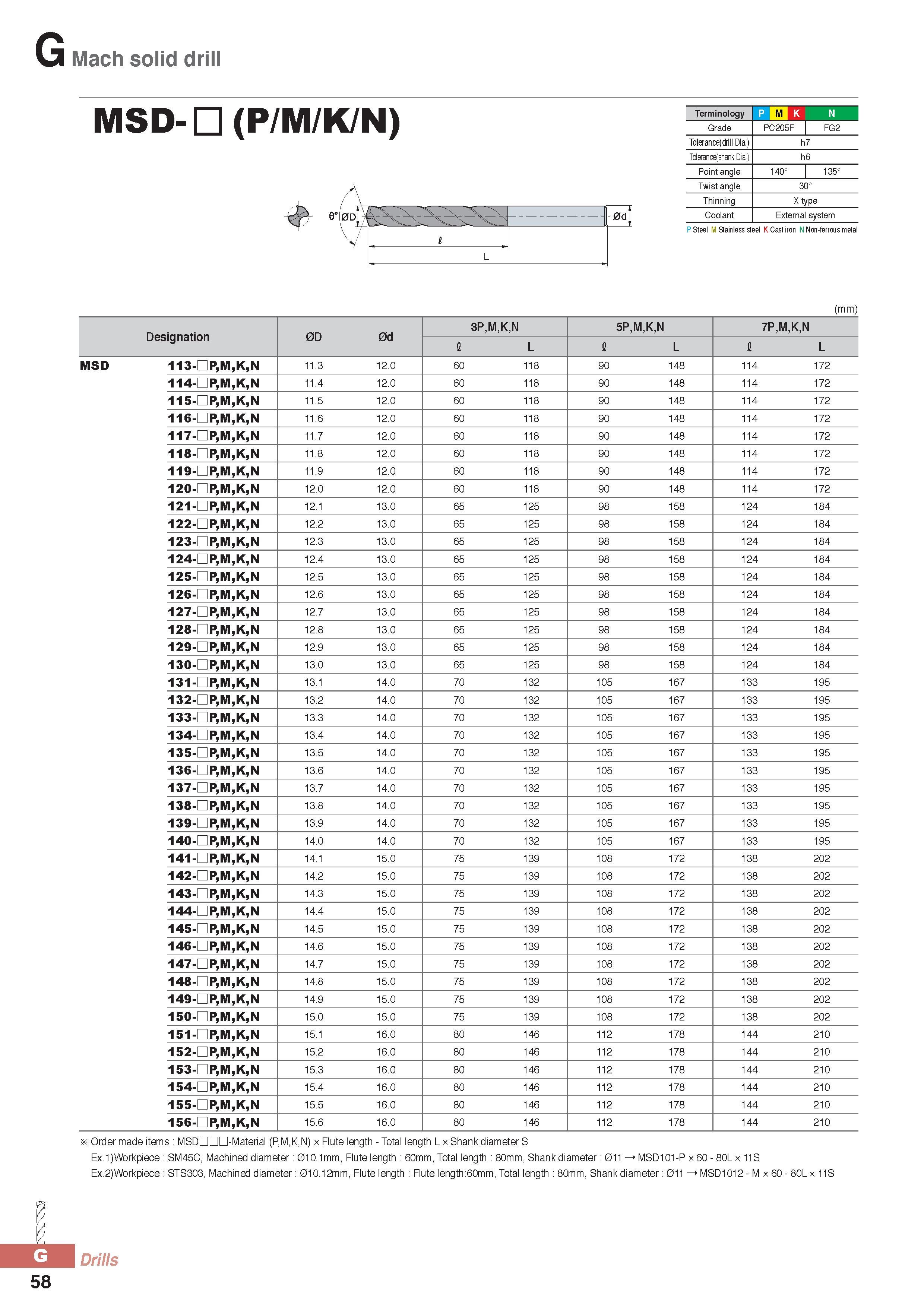

Mach solid drill MSD- (P/M/K/N) -0dj I L Terminology M K Grade PC205F FG2 Tolerance(drill Dia.) h7 Tolerance(shank Dia.) h6 Point angle 140° 135° Twist angle 30° Thinning X type Coolant External system P Steel M Stainless steel K Cast iron N Non-ferrous metal (mm) Designation 0D 0d 3P,M,K,N 5P,M,K,N 7P,M,K,N I L I L I L MSD 113-DP,M,K,N 11.3 12.0 60 118 90 148 114 172 114-DP,M,K,N 11.4 12.0 60 118 90 148 114 172 115-DP,M,K,N 11.5 12.0 60 118 90 148 114 172 116-DP,M,K,N 11.6 12.0 60 118 90 148 114 172 117-DP,M,K,N 11.7 12.0 60 118 90 148 114 172 118-DP,M,K,N 11.8 12.0 60 118 90 148 114 172 119-DP,M,K,N 11.9 12.0 60 118 90 148 114 172 120- P,M,K,N 12.0 12.0 60 118 90 148 114 172 121-DP,M,K,N 12.1 13.0 65 125 98 158 124 184 122- P,M,K,N 12.2 13.0 65 125 98 158 124 184 123- P,M,K,N 12.3 13.0 65 125 98 158 124 184 124-DP,M,K,N 12.4 13.0 65 125 98 158 124 184 125- P,M,K,N 12.5 13.0 65 125 98 158 124 184 126- P,M,K,N 12.6 13.0 65 125 98 158 124 184 127-DP,M,K,N 12.7 13.0 65 125 98 158 124 184 128- P,M,K,N 12.8 13.0 65 125 98 158 124 184 129-DP,M,K,N 12.9 13.0 65 125 98 158 124 184 130- P,M,K,N 13.0 13.0 65 125 98 158 124 184 131-DP,M,K,N 13.1 14.0 70 132 105 167 133 195 132- P,M,K,N 13.2 14.0 70 132 105 167 133 195 133- P,M,K,N 13.3 14.0 70 132 105 167 133 195 134-DP,M,K,N 13.4 14.0 70 132 105 167 133 195 135-DP,M,K,N 13.5 14.0 70 132 105 167 133 195 136- P,M,K,N 13.6 14.0 70 132 105 167 133 195 137-DP,M,K,N 13.7 14.0 70 132 105 167 133 195 138- P,M,K,N 13.8 14.0 70 132 105 167 133 195 139-DP,M,K,N 13.9 14.0 70 132 105 167 133 195 140- P,M,K,N 14.0 14.0 70 132 105 167 133 195 141-DP,M,K,N 14.1 15.0 75 139 108 172 138 202 142-DP,M,K,N 14.2 15.0 75 139 108 172 138 202 143-DP,M,K,N 14.3 15.0 75 139 108 172 138 202 144- P,M,K,N 14.4 15.0 75 139 108 172 138 202 145-DP,M,K,N 14.5 15.0 75 139 108 172 138 202 146- P,M,K,N 14.6 15.0 75 139 108 172 138 202 147-DP,M,K,N 14.7 15.0 75 139 108 172 138 202 148- P,M,K,N 14.8 15.0 75 139 108 172 138 202 149-DP,M,K,N 14.9 15.0 75 139 108 172 138 202 150-DP,M,K,N 15.0 15.0 75 139 108 172 138 202 151-DP,M,K,N 15.1 16.0 80 146 112 178 144 210 152- P,M,K,N 15.2 16.0 80 146 112 178 144 210 153-DP,M,K,N 15.3 16.0 80 146 112 178 144 210 154-DP,M,K,N 15.4 16.0 80 146 112 178 144 210 155-DP,M,K,N 15.5 16.0 80 146 112 178 144 210 156- P,M,K,N 15.6 16.0 80 146 112 178 144 210 rn Order made items MSDDDD-Material (P,M,K,N) x Flute length - Total length L x Shank diameter S Ex.1)Workpiece SM45C, Machined diameter 010.1mm, Flute length 60mm, Total length 80mm, Shank diameter 011 > MSD101-P x 60 - 80L x 11S Ex.2)Workpiece STS303, Machined diameter 010.12mm, Flute length Flute length:60mm, Total length 80mm, Shank diameter 011 > MSD1012 - M x 60 - 80L x 11S JL Drills 58
