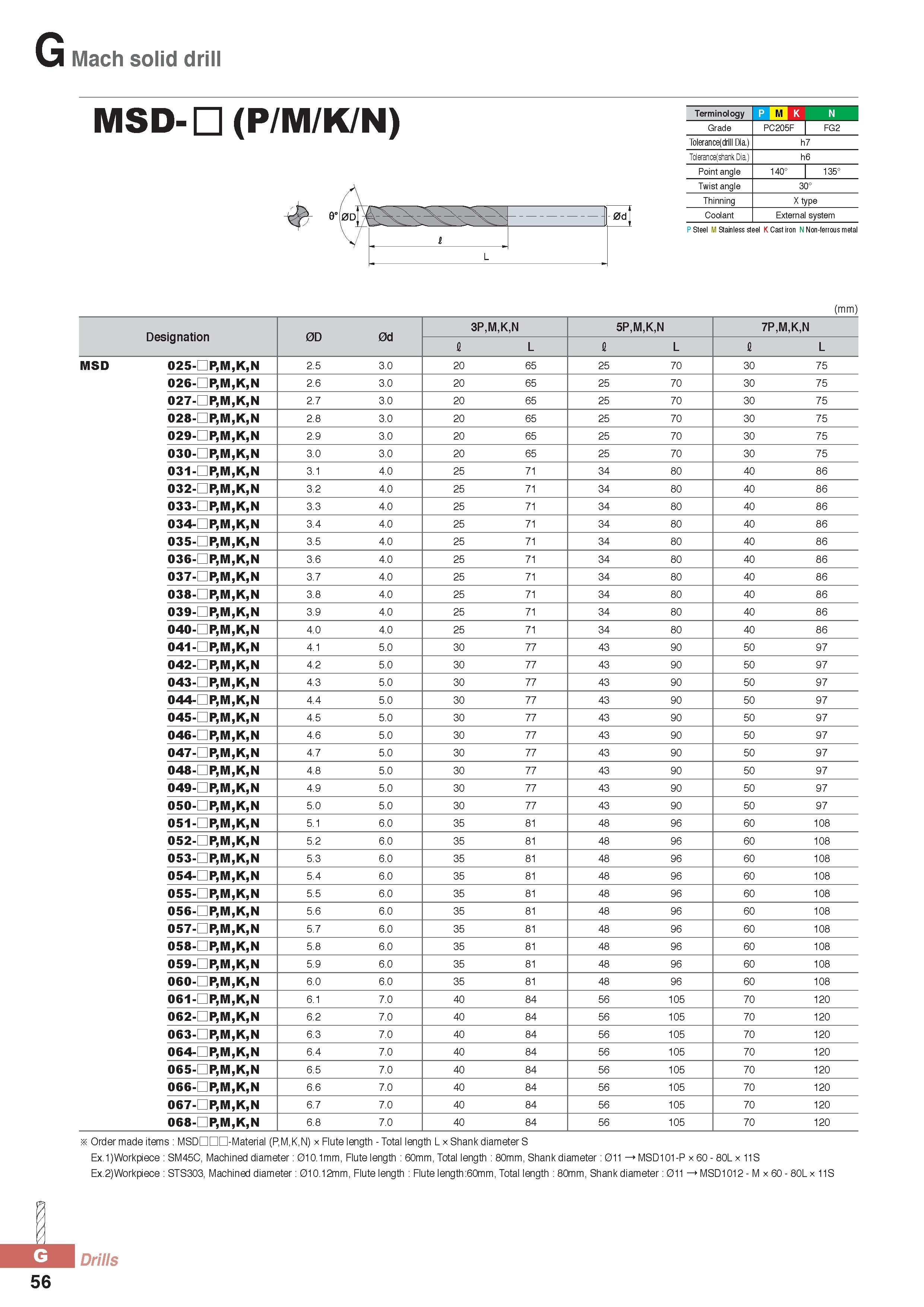

Mach solid drill MSD- (P/M/K/N) -0dj I L Terminology M K Grade PC205F FG2 Tolerance(drill Dia.) h7 Tolerance(shank Dia.) h6 Point angle 140° 135° Twist angle 30° Thinning X type Coolant External system P Steel M Stainless steel K Cast Iron N Non-ferrous metal (mm) Designation 0D 0d 3P,M,K,N 5P,M,K,N 7P,M,K,N I L I L I L MSD 025-DP,M,K,N 2.5 3.0 20 65 25 70 30 75 026- P,M,K,N 2.6 3.0 20 65 25 70 30 75 027-DP,M,K,N 2.7 3.0 20 65 25 70 30 75 028- P,M,K,N 2.8 3.0 20 65 25 70 30 75 029- P,M,K,N 2.9 3.0 20 65 25 70 30 75 030- P,M,K,N 3.0 3.0 20 65 25 70 30 75 031- P,M,K,N 3.1 4.0 25 71 34 80 40 86 032- P,M,K,N 3.2 4.0 25 71 34 80 40 86 033- P,M,K,N 3.3 4.0 25 71 34 80 40 86 034- P,M,K,N 3.4 4.0 25 71 34 80 40 86 035- P,M,K,N 3.5 4.0 25 71 34 80 40 86 036- P,M,K,N 3.6 4.0 25 71 34 80 40 86 037-DP,M,K,N 3.7 4.0 25 71 34 80 40 86 038- P,M,K,N 3.8 4.0 25 71 34 80 40 86 039- P,M,K,N 3.9 4.0 25 71 34 80 40 86 040- P,M,K,N 4.0 4.0 25 71 34 80 40 86 041- P,M,K,N 4.1 5.0 30 77 43 90 50 97 042- P,M,K,N 4.2 5.0 30 77 43 90 50 97 043- P,M,K,N 4.3 5.0 30 77 43 90 50 97 044- P,M,K,N 4.4 5.0 30 77 43 90 50 97 045- P,M,K,N 4.5 5.0 30 77 43 90 50 97 046- P,M,K,N 4.6 5.0 30 77 43 90 50 97 047-DP,M,K,N 4.7 5.0 30 77 43 90 50 97 048- P,M,K,N 4.8 5.0 30 77 43 90 50 97 049- P,M,K,N 4.9 5.0 30 77 43 90 50 97 050- P,M,K,N 5.0 5.0 30 77 43 90 50 97 051-DP,M,K,N 5.1 6.0 35 81 48 96 60 108 052- P,M,K,N 5.2 6.0 35 81 48 96 60 108 053- P,M,K,N 5.3 6.0 35 81 48 96 60 108 054- P,M,K,N 5.4 6.0 35 81 48 96 60 108 055- P,M,K,N 5.5 6.0 35 81 48 96 60 108 056- P,M,K,N 5.6 6.0 35 81 48 96 60 108 057-DP,M,K,N 5.7 6.0 35 81 48 96 60 108 058- P,M,K,N 5.8 6.0 35 81 48 96 60 108 059- P,M,K,N 5.9 6.0 35 81 48 96 60 108 060- P,M,K,N 6.0 6.0 35 81 48 96 60 108 061- P,M,K,N 6.1 7.0 40 84 56 105 70 120 062- P,M,K,N 6.2 7.0 40 84 56 105 70 120 063- P,M,K,N 6.3 7.0 40 84 56 105 70 120 064- P,M,K,N 6.4 7.0 40 84 56 105 70 120 065- P,M,K,N 6.5 7.0 40 84 56 105 70 120 066- P,M,K,N 6.6 7.0 40 84 56 105 70 120 067-DP,M,K,N 6.7 7.0 40 84 56 105 70 120 068- P,M,K,N 6.8 7.0 40 84 56 105 70 120 rn Order made items MSDDnD-Material (P,M,K,N) x Flute length - Total length L x Shank diameter S Ex.1)Workpiece SM45C, Machined diameter 010.1mm, Flute length 60mm, Total length 80mm, Shank diameter 011 > MSD101-P x 60 - 80L x 11S Ex.2)Workpiece STS303, Machined diameter 010.12mm, Flute length Flute length:60mm, Total length 80mm, Shank diameter 011 > MSD1012 - M x 60 - 80L x 11S JL Drills 56
