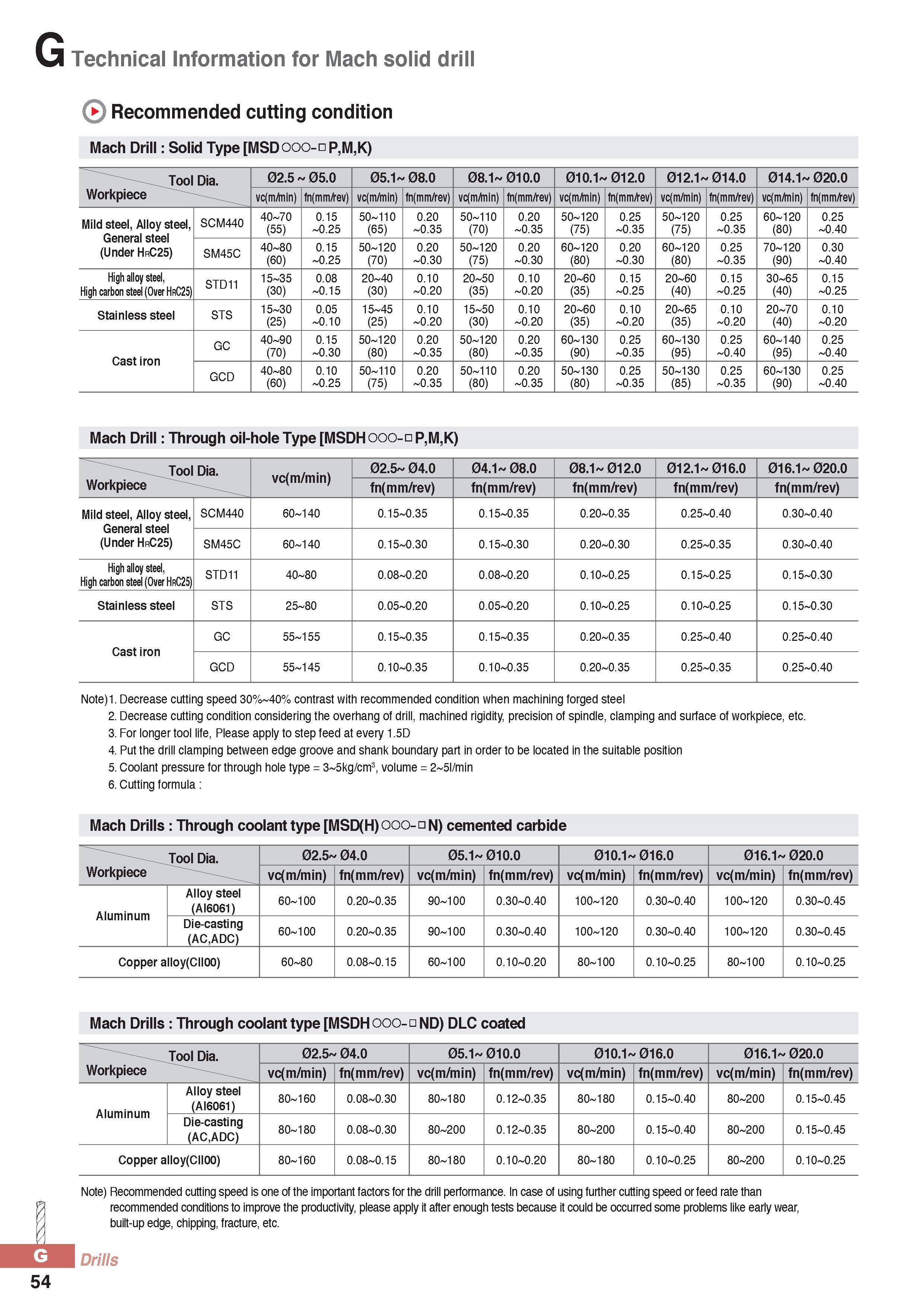

G Technical Information for Mach solid drill Recommended cutting condition Mach Drill Solid Type MSDQOO-n P,M,K) Tool Dia. Workpiece 02.5 05.0 05.1 08.0 08.1 010.0 010.1 012.0 012.1 014.0 014.1 020.0 vc(m/min) fn(mmyrev) vc(m/min) fn(mm/rev) vc(m/min) fn(mm/rev) vc(m/min) fn(mm/rev) vc(m/min) fn(mm/rev) vc(mymin) fn(mm/rev) Mild steel, Alloy steel, General steel (Under HrC25) SCM440 40 70 (55) 0.15 0.25 50 110 (65) 0.20 0.35 50 110 (70) 0.20 0.35 50 120 (75) 0.25 0.35 50 120 (75) 0.25 0.35 60 120 (80) 0.25 0.40 SM45C 40 80 (60) 0.15 0.25 0 2) 10 0( 5 0.20 0.30 50 120 (75) 0.20 0.30 60 120 (80) 0.20 0.30 60 120 (80) 0.25 0.35 0 2) 10 0( 7 0.30 0.40 High alloy steel, High carbon steel (Over HrC25) STD11 15 35 (30) 0.08 0.15 20 40 (30) 0.10 0.20 20 50 (35) 0.10 0.20 20 60 (35) 0.15 0.25 20 60 (40) 0.15 0.25 30 65 (40) 0.15 0.25 Stainless steel STS 15 30 (25) 0.05 0.10 15 45 (25) 0.10 0.20 15 50 (30) 0.10 0.20 20 60 (35) 0.10 0.20 20 65 (35) 0.10 0.20 20 70 (40) 0.10 0.20 Cast iron GC 40 90 (70) 0.15 0.30 50 120 (80) 0.20 0.35 50 120 (80) 0.20 0.35 60 130 (90) 0.25 0.35 0 3) 15 0( 6 0.25 0.40 0 4) 15 0( 6 0.25 0.40 GCD 40 80 (60) 0.10 0.25 50 110 (75) 0.20 0.35 50 110 (80) 0.20 0.35 50 130 (80) 0.25 0.35 50 130 (85) 0.25 0.35 0 3) 10 I & 0( 6 0.25 0.40 Mach Drill Through oil-hole Type MSDH000-nP,M,K) Tool Dia. Workpiece vc(m/min) 02.5 04.0 04.1 08.0 08.1 012.0 012.1 016.0 016.1 020.0 fn(mm/rev) fn(mm/rev) fn(mm/rev) fn(mm/rev) fn(mm/rev) Mild steel, Alloy steel, General steel (Under HrC25) SCM440 60 140 0.15 0.35 0.15 0.35 0.20 0.35 0.25 0.40 0.30 0.40 SM45C 60 140 0.15 0.30 0.15 0.30 0.20 0.30 0.25 0.35 0.30 0.40 High alloy steel, High carbon steel (Over HrC25) STD11 40 80 0.08 0.20 0.08 0.20 0.10 0.25 0.15 0.25 0.15 0.30 Stainless steel STS 25 80 0.05 0.20 0.05 0.20 0.10 0.25 0.10 0.25 0.15 0.30 Cast iron GC 55 155 0.15 0.35 0.15 0.35 0.20 0.35 0.25 0.40 0.25 0.40 GCD 55 145 0.10 0.35 0.10 0.35 0.20 0.35 0.25 0.35 0.25 0.40 Note)1. Decrease cutting speed 30% 40% contrast with recommended condition when machining forged steel 2. Decrease cutting condition considering the overhang of drill, machined rigidity, precision of spindle, clamping and surface of workpiece, etc. 3. For longer tool life, Please apply to step feed at every 1.5D 4. Put the drill clamping between edge groove and shank boundary part in order to be located in the suitable position 5. Coolant pressure for through hole type = 3 5kg/cm3, volume = 2 5l/min 6. Cutting formula Mach Drills Through coolant type MSD(H) -dN) cemented carbide Tool Dia. Workpiece 02.5 04.0 05.1 010.0 010.1 016.0 016.1 020.0 vc(m/min) fn(mm/rev) vc(m/min) fn(mm/rev) vc(m/min) fn(mm/rev) vc(m/min) fn(mm/rev) Aluminum Alloy steel (AI6061) 60 100 0.20 0.35 90 100 0.30 0.40 100 120 0.30 0.40 100 120 0.30 0.45 Die-casting (AC,ADC) 60 100 0.20 0.35 90 100 0.30 0.40 100 120 0.30 0.40 100 120 0.30 0.45 Copper alloy(CII00) 60 80 0.08 0.15 60 100 0.10 0.20 80 100 0.10 0.25 80 100 0.10 0.25 Mach Drills Through coolant type MSDH -a ND) DLC coated Tool Dia. Workpiece 02.5 04.0 05.1 010.0 010.1 016.0 016.1 020.0 vc(m/min) fn(mm/rev) vc(m/min) fn(mm/rev) vc(m/min) fn(mm/rev) vc(m/min) fn(mm/rev) Aluminum Alloy steel (AI6061) 80 160 0.08 0.30 80 180 0.12 0.35 80 180 0.15 0.40 80 200 0.15 0.45 Die-casting (AC,ADC) 80 180 0.08 0.30 80 200 0.12 0.35 80 200 0.15 0.40 80 200 0.15 0.45 Copper alloy(CII00) 80 160 0.08 0.15 80 180 0.10 0.20 80 180 0.10 0.25 80 200 0.10 0.25 Note) Recommended cutting speed is one of the important factors for the drill performance. In case of using further cutting speed or feed rate than recommended conditions to improve the productivity, please apply it after enough tests because it could be occurred some problems like early wear, built-up edge, chipping, fracture, etc. G Drills 54
