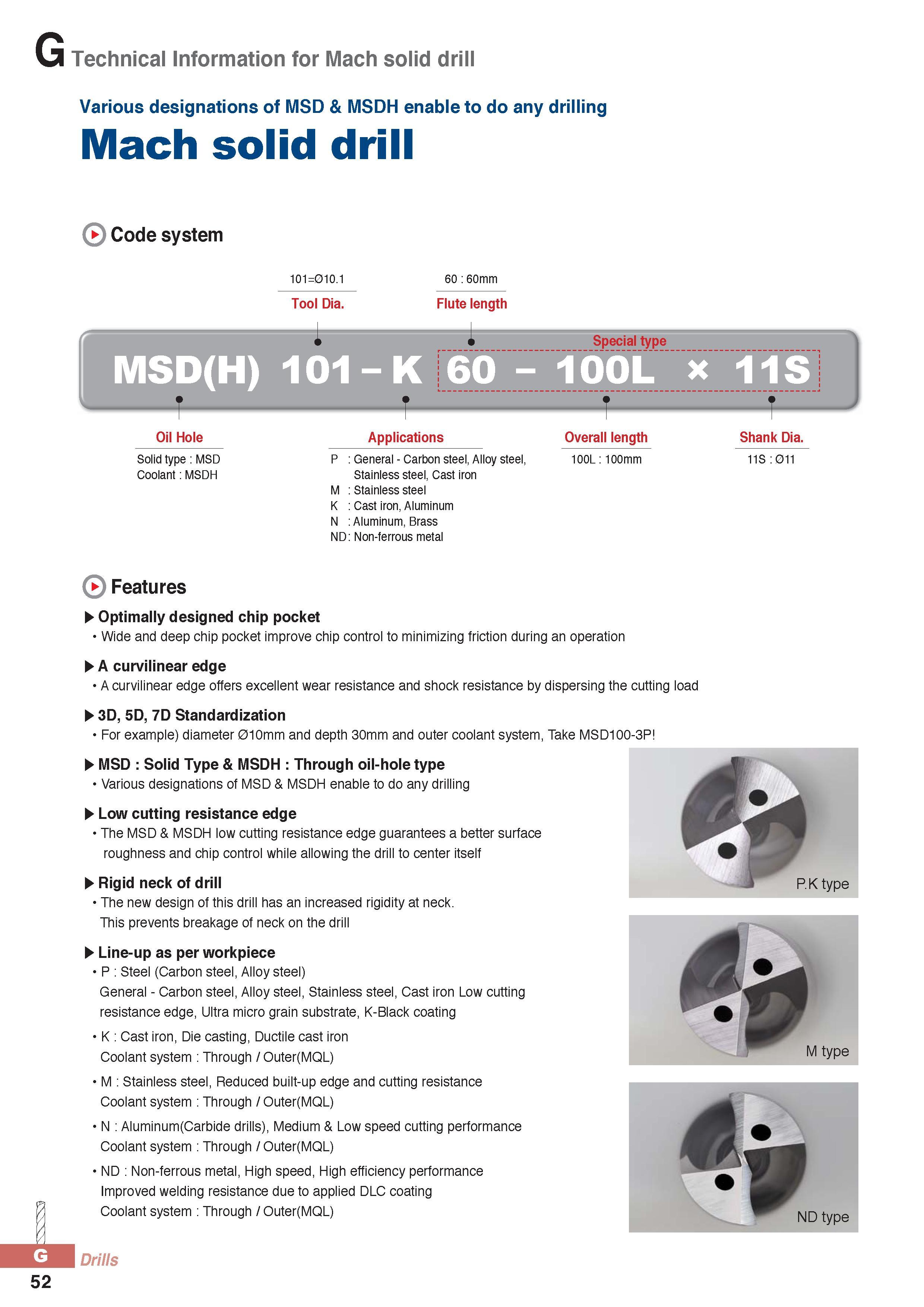

G Technical Information for Mach solid drill Various designations of MSD & MSDH enable to do any drilling Mach solid drill Code system 101=010.1 60 60mm Tool Dia. Flute length Oil Hole Applications Overall length Shank Dia. Solid type MSD P General - Carbon steel, Alloy steel, 100L 100mm 11S 011 Coolant MSDH Stainless steel, Cast iron M Stainless steel K Cast iron, Aluminum N Aluminum, Brass ND: Non-ferrous metal Features Optimally designed chip pocket Wide and deep chip pocket improve chip control to minimizing friction during an operation A curvilinear edge A curvilinear edge offers excellent wear resistance and shock resistance by dispersing the cutting load 3D, 5D, 7D Standardization For example) diameter 010mm and depth 30mm and outer coolant system, Take MSD100-3P MSD Solid Type & MSDH Through oil-hole type Various designations of MSD & MSDH enable to do any drilling Low cutting resistance edge The MSD & MSDH low cutting resistance edge guarantees a better surface roughness and chip control while allowing the drill to center itself Rigid neck of drill The new design of this drill has an increased rigidity at neck. This prevents breakage of neck on the drill Line-up as per workpiece P Steel (Carbon steel, Alloy steel) General - Carbon steel, Alloy steel, Stainless steel, Cast iron Low cutting resistance edge, Ultra micro grain substrate, K-Black coating K Cast iron, Die casting, Ductile cast iron Coolant system Through / Outer(MQL) M Stainless steel, Reduced built-up edge and cutting resistance Coolant system Through / Outer(MQL) N Aluminum(Carbide drills), Medium & Low speed cutting performance Coolant system Through / Outer(MQL) ND Non-ferrous metal, High speed, High efficiency performance Improved welding resistance due to applied DLC coating Coolant system Through / Outer(MQL) Drills 52 0 P P K type fy M type ND type Special type MSD(H) 101-K 60 - 100L x 11S
