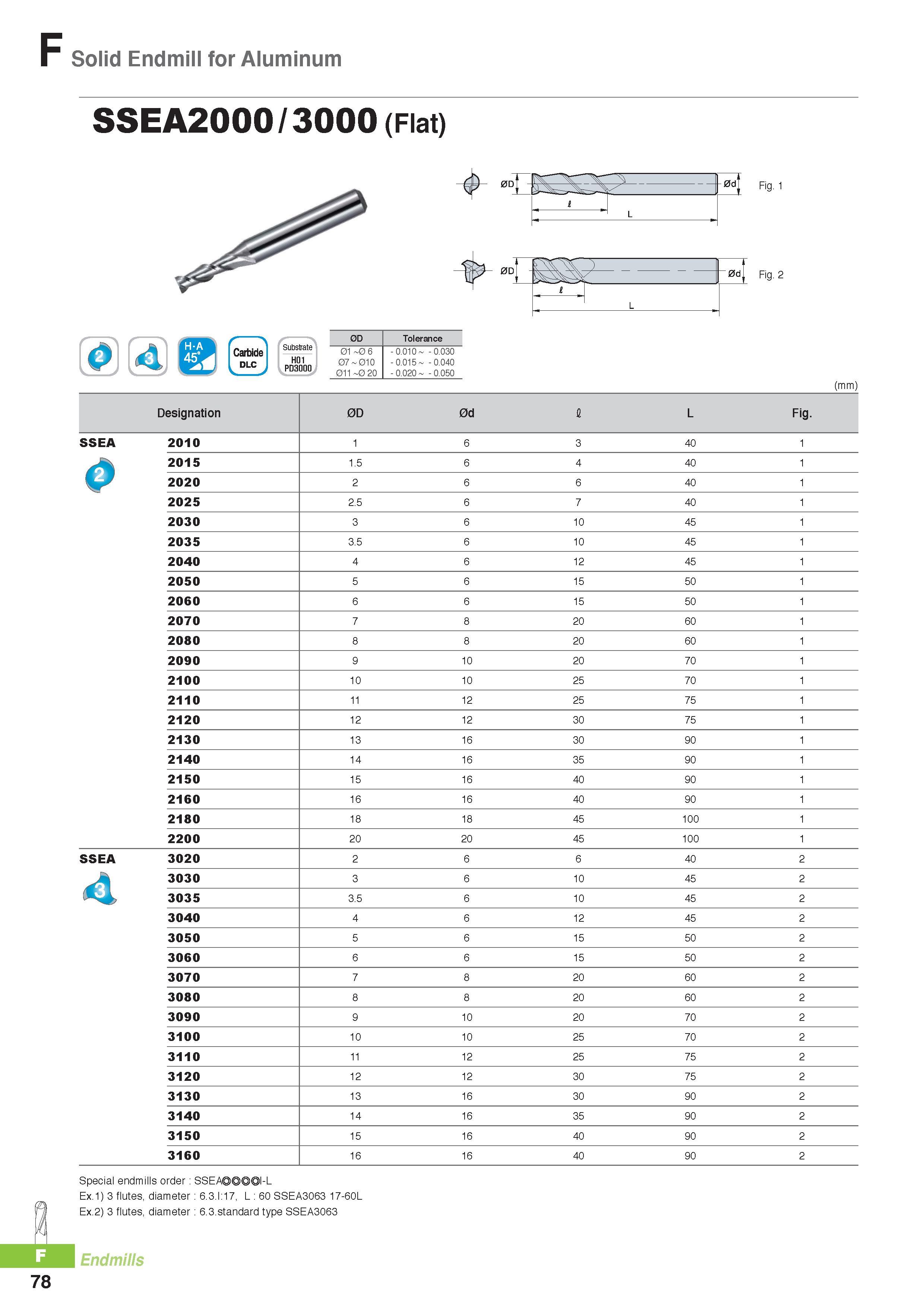

Solid Endmill for Aluminum SSEA2000 / 3000 (Flat) Fig. 1 Carbide DLC HOI PD3000 0D Tolerance 01 0 6 07 010 011 0 20 - 0.010 - 0.030 - 0.015 - 0.040 - 0.020 - 0.050 J I 0d 1 L Fig. 2 (mm) Designation 0D 0d I L Fig. SSEA 2010 6 3 40 1 2015 1.5 6 4 40 1 2020 2 6 6 40 1 2025 2.5 6 7 40 1 2030 3 6 10 45 1 2035 3.5 6 10 45 1 2040 4 6 12 45 1 2050 5 6 15 50 1 2060 6 6 15 50 1 2070 7 8 20 60 1 2080 8 8 20 60 1 2090 9 10 20 70 1 2100 10 10 25 70 1 2110 11 12 25 75 1 2120 12 12 30 75 1 2130 13 16 30 90 1 2140 14 16 35 90 1 2150 15 16 40 90 1 2160 16 16 40 90 1 2180 18 18 45 100 1 2200 20 20 45 100 1 SSEA 3020 2 6 6 40 2 Ji 3030 3 6 10 45 2 3035 3.5 6 10 45 2 3040 4 6 12 45 2 3050 5 6 15 50 2 3060 6 6 15 50 2 3070 7 8 20 60 2 3080 8 8 20 60 2 3090 9 10 20 70 2 3100 10 10 25 70 2 3110 11 12 25 75 2 3120 12 12 30 75 2 3130 13 16 30 90 2 3140 14 16 35 90 2 3150 15 16 40 90 2 3160 16 16 40 90 2 ± Special endmills order SSEA l-L Ex.1) 3 flutes, diameter 6.3.l:17, L 60 SSEA3063 17-60L Ex.2) 3 flutes, diameter 6.3.standard type SSEA3063 Endmills 78 Substrate
