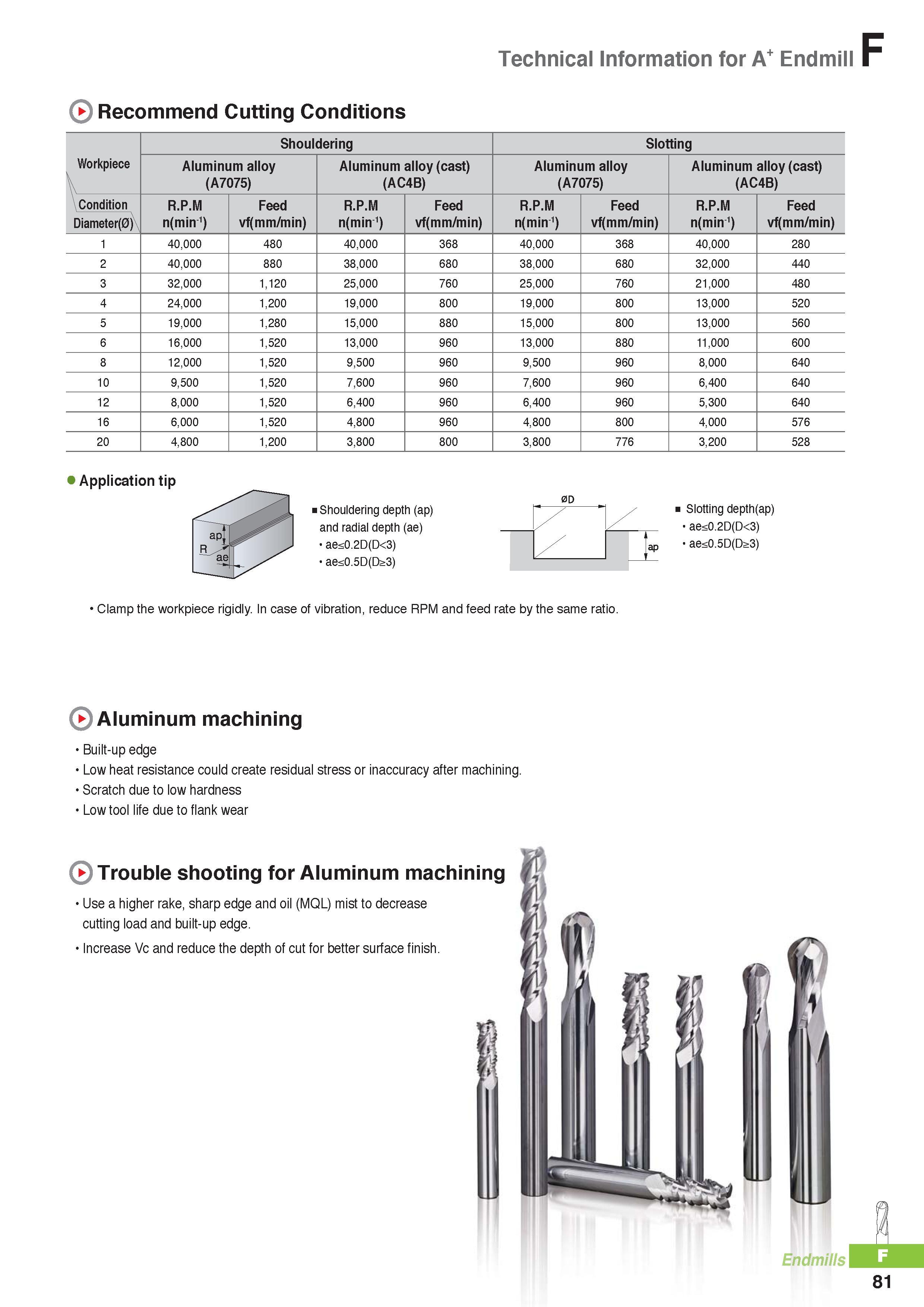

Recommend Cutting Conditions Technical Information for A+ Endmill Workpiece V Shouldering Slotting Aluminum alloy (A7075) Aluminum alloy (cast) (AC4B) Aluminum alloy (A7075) Aluminum alloy (cast) (AC4B) Condition Diameter(0) R.P.M n(min'1) Feed vf(mm/min) R.P.M n(min'1) Feed vf(mm/min) R.P.M n(min'1) Feed vf(mm/min) R.P.M n(min'1) Feed vf(mm/min) 1 40,000 480 40,000 368 40,000 368 40,000 280 2 40,000 880 38,000 680 38,000 680 32,000 440 3 32,000 1,120 25,000 760 25,000 760 21,000 480 4 24,000 1,200 19,000 800 19,000 800 13,000 520 5 19,000 1,280 15,000 880 15,000 800 13,000 560 6 16,000 1,520 13,000 960 13,000 880 11,000 600 8 12,000 1,520 9,500 960 9,500 960 8,000 640 10 9,500 1,520 7,600 960 7,600 960 6,400 640 12 8,000 1,520 6,400 960 6,400 960 5,300 640 16 6,000 1,520 4,800 960 4,800 800 4,000 576 20 4,800 1,200 3,800 800 3,800 776 3,200 528 Application tip Shouldering depth (ap) and radial depth (ae) ae<0.2D(D<3) ae<0.5D(D>3) 0D Jap Slotting depth(ap) ae<0.2D(D<3) ae<0.5D(D>3) Clamp the workpiece rigidly. In case of vibration, reduce RPM and feed rate by the same ratio. Aluminum machining Built-up edge Low heat resistance could create residual stress or inaccuracy after machining. Scratch due to low hardness Low tool life due to flank wear Trouble shooting for Aluminum machining Use a higher rake, sharp edge and oil (MQL) mist to decrease cutting load and built-up edge. Increase Vc and reduce the depth of cut for better surface finish. 1 Endmills 81
