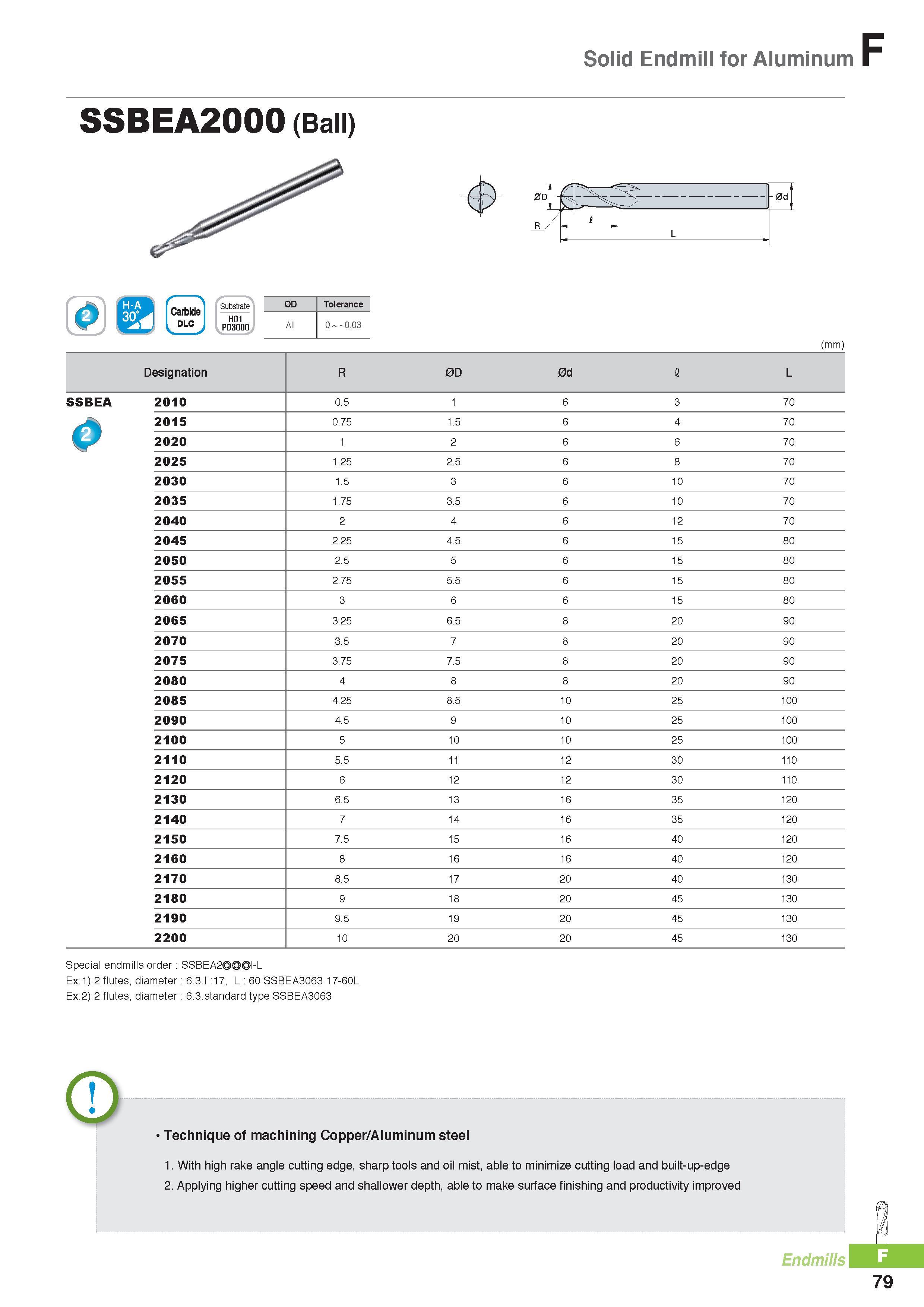

Solid Endmill for Aluminum SSBEA2000 (Ball) I L Carbide DLC H01 PD3000 0D Tolerance All 0 - 0.03 (mm) Designation R 0D 0d I L SSBEA 2010 0.5 1 6 3 70 2015 0.75 1.5 6 4 70 2020 2 6 6 70 2025 1.25 2.5 6 8 70 2030 1.5 3 6 10 70 2035 1.75 3.5 6 10 70 2040 2 4 6 12 70 2045 2.25 4.5 6 15 80 2050 2.5 5 6 15 80 2055 2.75 5.5 6 15 80 2060 3 6 6 15 80 2065 3.25 6.5 8 20 90 2070 3.5 7 8 20 90 2075 3.75 7.5 8 20 90 2080 4 8 8 20 90 2085 4.25 8.5 10 25 100 2090 4.5 9 10 25 100 2100 5 10 10 25 100 2110 5.5 11 12 30 110 2120 6 12 12 30 110 2130 6.5 13 16 35 120 2140 7 14 16 35 120 2150 7.5 15 16 40 120 2160 8 16 16 40 120 2170 8.5 17 20 40 130 2180 9 18 20 45 130 2190 9.5 19 20 45 130 2200 10 20 20 45 130 Special endmills order SSBEA2 l-L Ex.1) 2 flutes, diameter 6.3.1 :17, L 60 SSBEA3063 17-60L Ex.2) 2 flutes, diameter 6.3.standard type SSBEA3063 Substrate Technique of machining Copper/Aluminum steel 1. With high rake angle cutting edge, sharp tools and oil mist, able to minimize cutting load and built-up-edge 2. Applying higher cutting speed and shallower depth, able to make surface finishing and productivity improved Endmills J. 79
