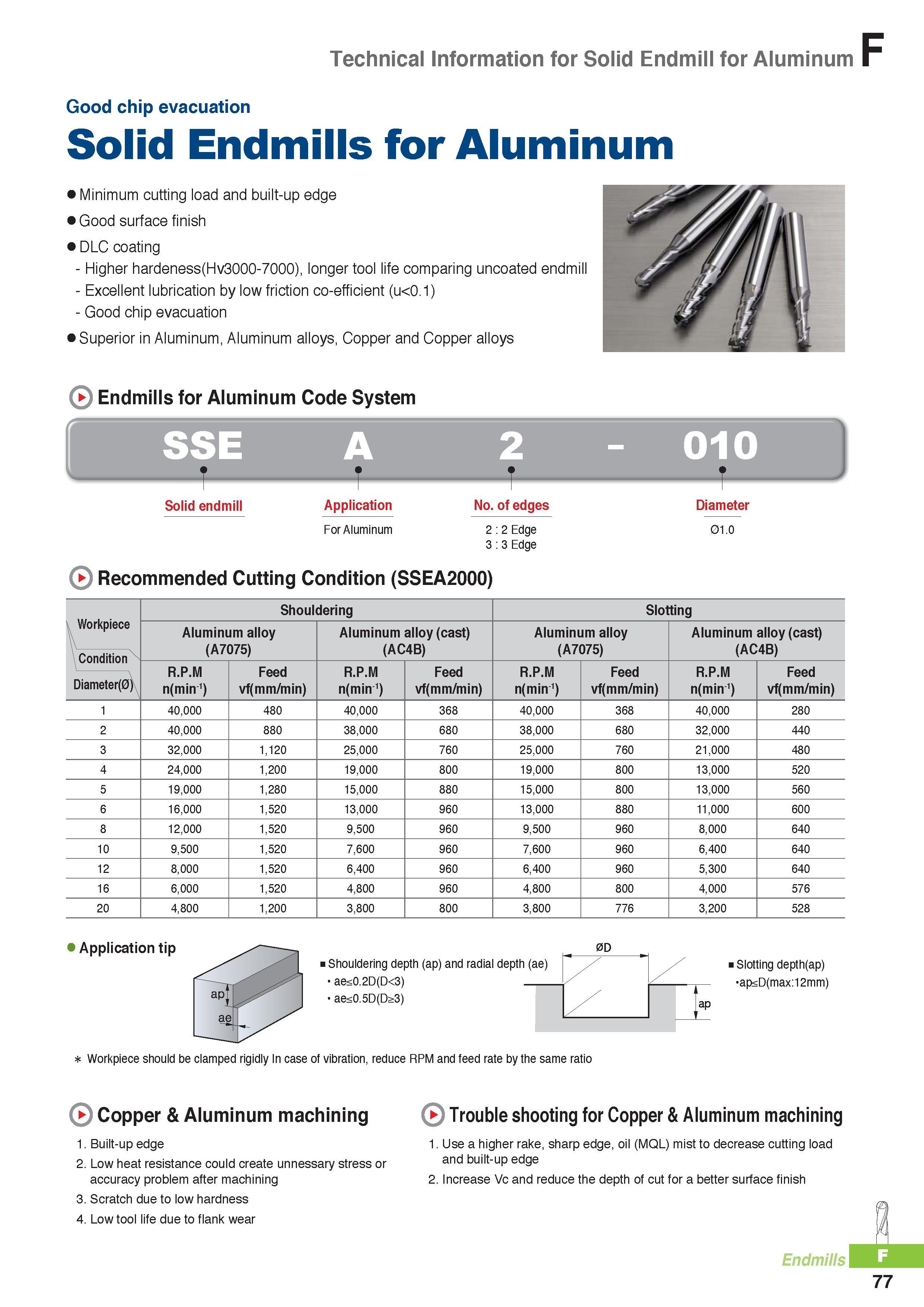

Technical Information for Solid Endmill for Aluminum F Good chip evacuation Solid Endmills for Aluminum Minimum cutting load and built-up edge Good surface finish DLC coating - Higher hardeness(Hv3000-7000), longer tool life comparing uncoated endmill - Excellent lubrication by low friction co-efficient (u<0.1) - Good chip evacuation Superior in Aluminum, Aluminum alloys, Copper and Copper alloys Endmills for Aluminum Code System Solid endmill 010 No. of edges 2 2 Edge 3 3 Edge Diameter Application For Aluminum 01.0 Recommended Cutting Condition (SSEA2000) Shouldering Slotting Workpiece Aluminum alloy Aluminum alloy (cast) Aluminum alloy Aluminum alloy (cast) Condition (A7075) (AC4B) (A7075) (AC4B) R.P.M Feed R.P.M Feed R.P.M Feed R.P.M Feed Diameter(0) n(min-1) vf(mm/min) n(min-1) vf(mm/min) n(min-1) vf(mm/min) n(min-1) vf(mm/min) 1 40,000 480 40,000 368 40,000 368 40,000 280 2 40,000 880 38,000 680 38,000 680 32,000 440 3 32,000 1,120 25,000 760 25,000 760 21,000 480 4 24,000 1,200 19,000 800 19,000 800 13,000 520 5 19,000 1,280 15,000 880 15,000 800 13,000 560 6 16,000 1,520 13,000 960 13,000 880 11,000 600 8 12,000 1,520 9,500 960 9,500 960 8,000 640 10 9,500 1,520 7,600 960 7,600 960 6,400 640 12 8,000 1,520 6,400 960 6,400 960 5,300 640 16 6,000 1,520 4,800 960 4,800 800 4,000 576 20 4,800 1,200 3,800 800 3,800 776 3,200 528 Application tip Shouldering depth (ap) and radial depth (ae) ae<0.2D(D<3) ae<0.5D(D>3) Workpiece should be clamped rigidly In case of vibration, reduce RPM and feed rate bythe same ratio Slotting depth(ap) ap
