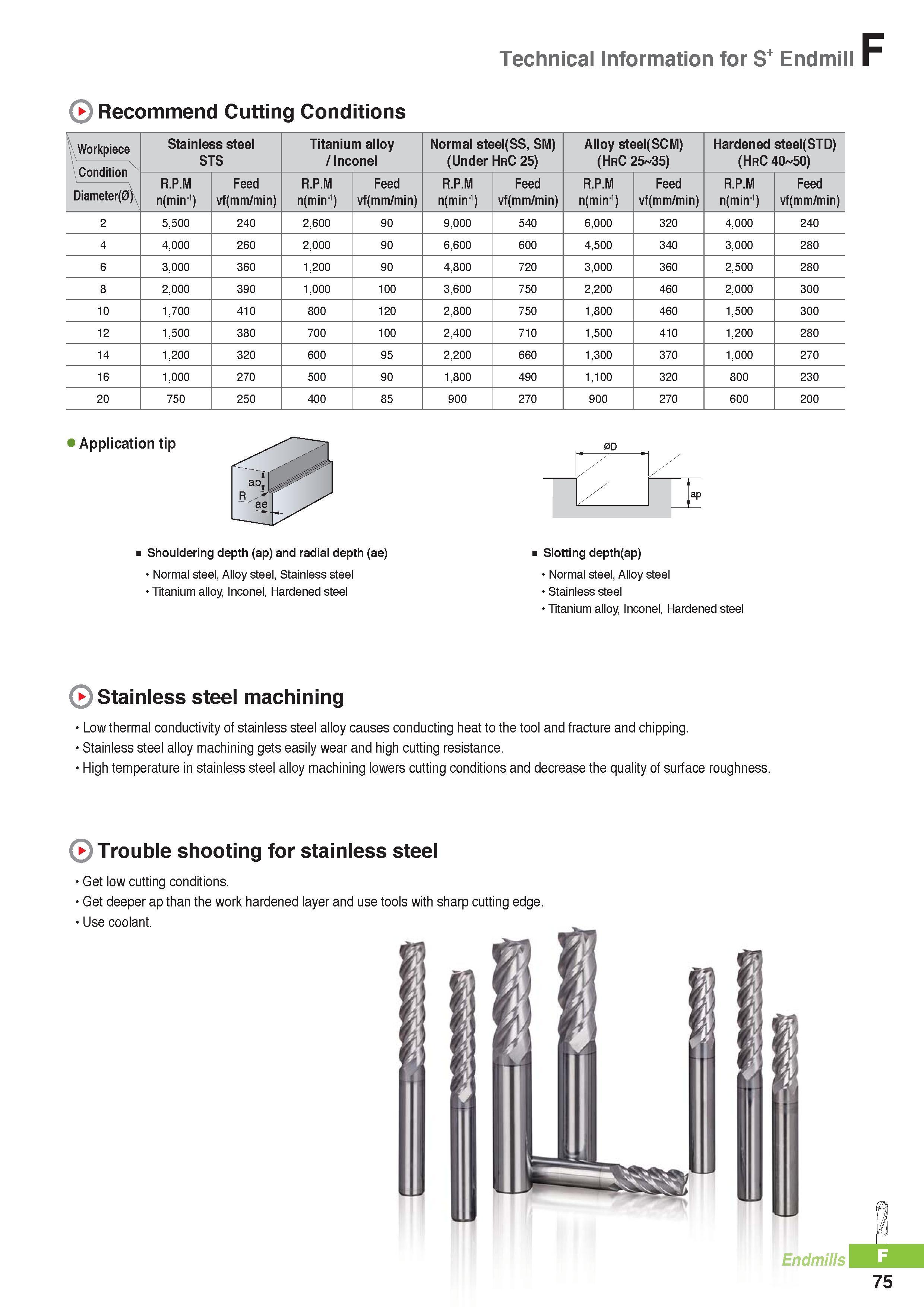

Recommend Cutting Conditions Technical Information for S+ Endmill Workpiece Condition Diameter(0) Stainless steel STS Titanium alloy / Inconel Normal steel(SS, SM) (Under HrC 25) Alloy steel(SCM) (HrC 25 35) Hardened steel(STD) (HrC 40 50) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 2 5,500 240 2,600 90 9,000 540 6,000 320 4,000 240 4 4,000 260 2,000 90 6,600 600 4,500 340 3,000 280 6 3,000 360 1,200 90 4,800 720 3,000 360 2,500 280 8 2,000 390 1,000 100 3,600 750 2,200 460 2,000 300 10 1,700 410 800 120 2,800 750 1,800 460 1,500 300 12 1,500 380 700 100 2,400 710 1,500 410 1,200 280 14 1,200 320 600 95 2,200 660 1,300 370 1,000 270 16 1,000 270 500 90 1,800 490 1,100 320 800 230 20 750 250 400 85 900 270 900 270 600 200 Application tip 0D Jap Shouldering depth (ap) and radial depth (ae) Normal steel, Alloy steel, Stainless steel Titanium alloy, Inconel, Hardened steel Slotting depth(ap) Normal steel, Alloy steel Stainless steel Titanium alloy, Inconel, Hardened steel Stainless steel machining Low thermal conductivity of stainless steel alloy causes conducting heat to the tool and fracture and chipping. Stainless steel alloy machining gets easily wear and high cutting resistance. High temperature in stainless steel alloy machining lowers cutting conditions and decrease the quality of surface roughness. Trouble shooting for stainless steel Get low cutting conditions. Get deeper ap than the work hardened layer and use tools with sharp cutting edge. Use coolant. Endmills 1311 75
