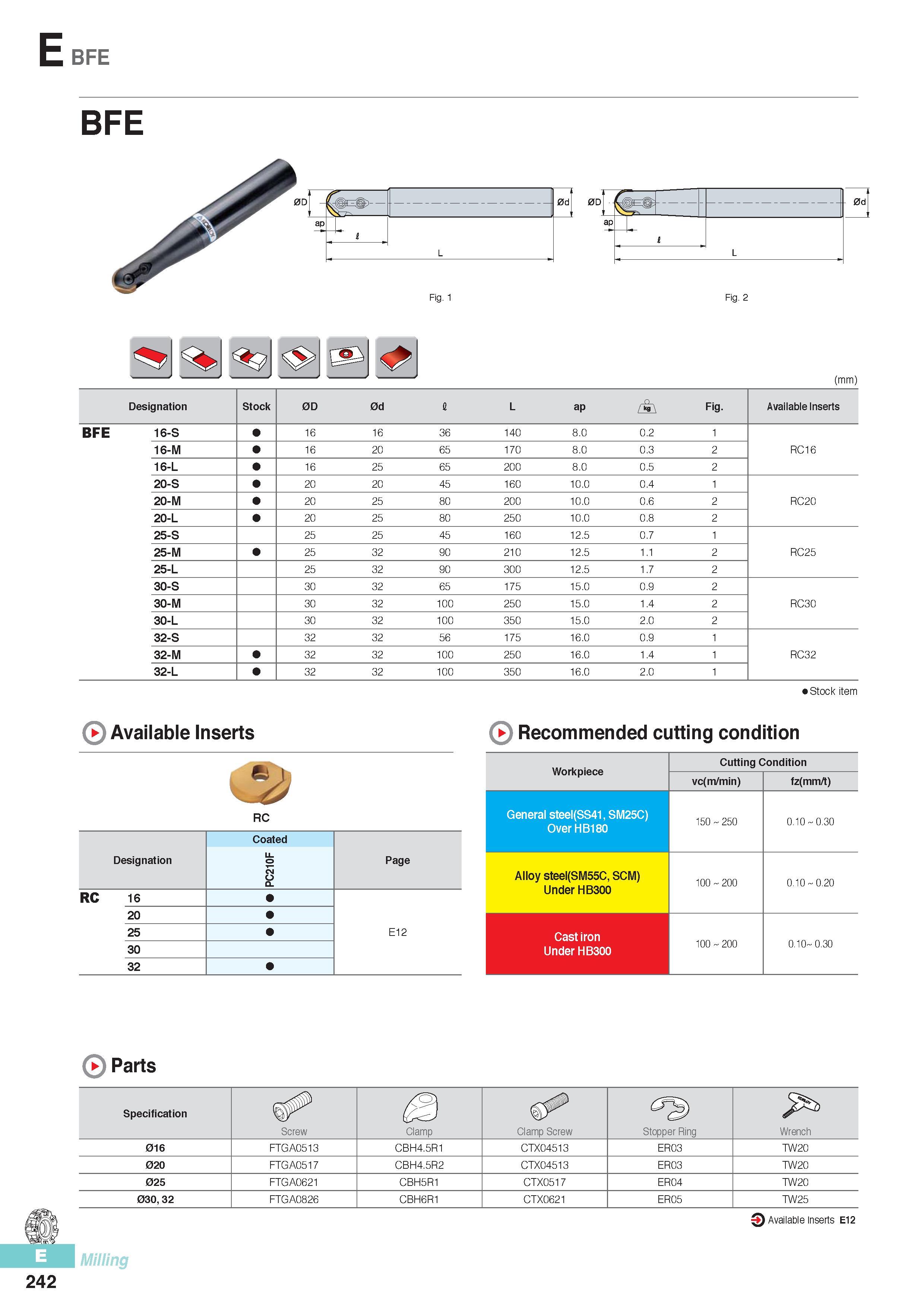

E BFE BFE SZfd Fig. 1 Fig. 2 (mm) Designation Stock 0D 0d I L ap f+\ Fig. Available Inserts BFE 16-S 16 16 36 140 8.0 0.2 16-M 16 20 65 170 8.0 0.3 2 RC16 16-L 16 25 65 200 8.0 0.5 2 20-S 20 20 45 160 10.0 0.4 1 20-M 20 25 80 200 10.0 0.6 2 RC2C 20-L 20 25 80 250 10.0 0.8 2 25-S 25 25 45 160 12.5 0.7 1 25-M 25 32 90 210 12.5 1.1 2 RC25 25-L 25 32 90 300 12.5 1.7 2 30-S 30 32 65 175 15.0 0.9 2 30-M 30 32 100 250 15.0 1.4 2 RC30 30-L 30 32 100 350 15.0 2.0 2 32-S 32 32 56 175 16.0 0.9 1 32-M 32 32 100 250 16.0 1.4 1 RC32 32-L 32 32 100 350 16.0 2.0 Stock item >) Available Inserts RC Designation Coated Page PC210F RC 16 20 25 E12 30 32 Recommended cutting condition Workpiece Cutting Condition vc(m/min) fz(mm/l) General steel(SS41, SM25C) Over HB180 150 250 0.10 0.30 Alloy steel(SM55C, SCM) Under HB300 100 200 0.10 0.20 Cast iron 100 200 0.10 0.30 Under HB300 Specification Screw Clamp Clamp Screw Stopper Ring Wrench 016 FTGA0513 CBH4.5R1 CTX04513 ER03 TW20 020 FTGA0517 CBH4.5R2 CTX04513 ER03 TW20 025 FTGA0621 CBH5R1 CTX0517 ER04 TW20 030, 32 FTGA0826 CBH6R1 CTX0621 ER05 TW25 Milling 242 Available Inserts E12
