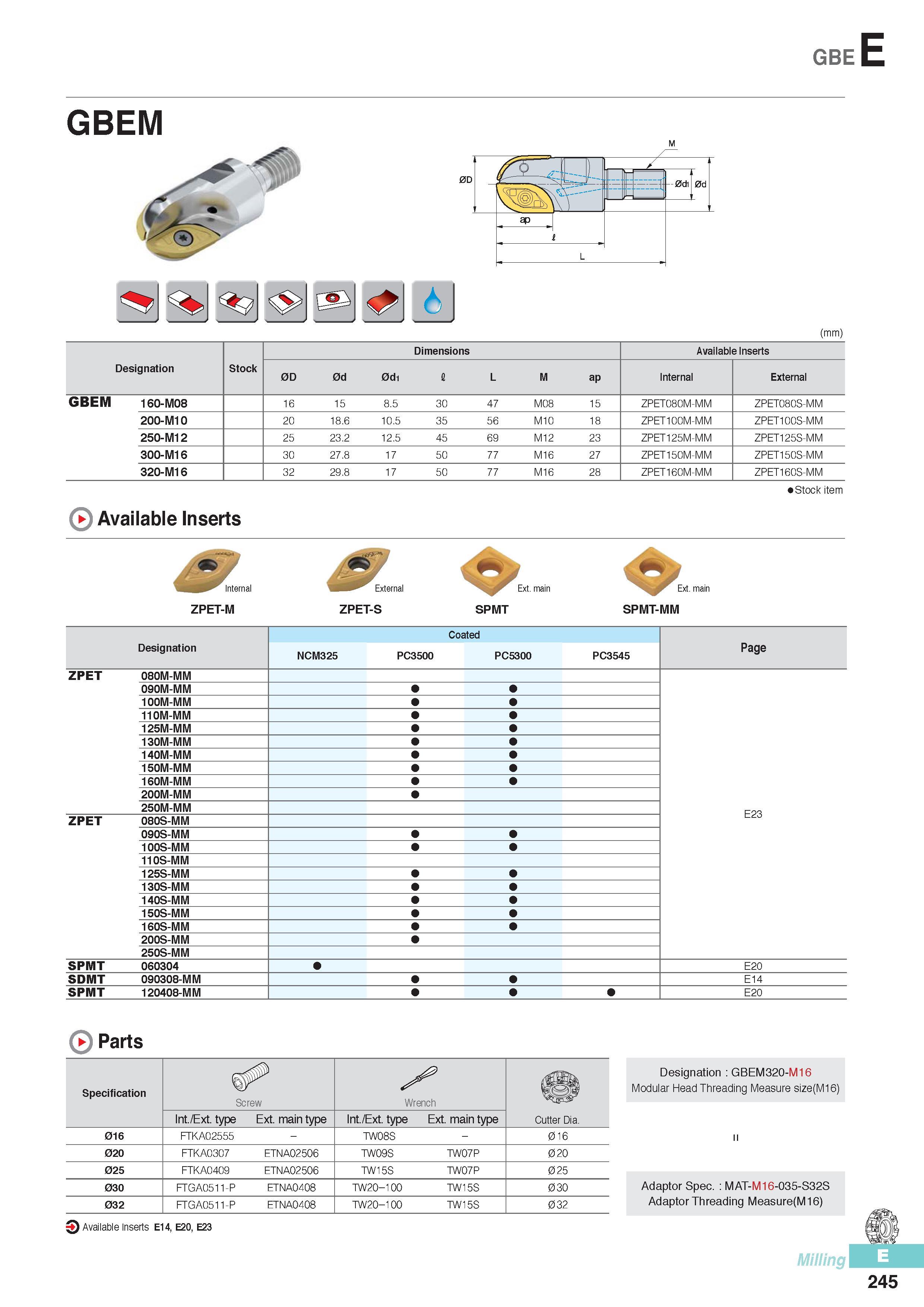

gbeE GBEM (mm) Designation Stock Dimensions Available Inserts 0D 0d 0d1 I L M ap Internal External GBEM 160-M08 16 15 8.5 30 47 M08 15 ZPET080M-MM ZPET080S-MM 200-M10 20 18.6 10.5 35 56 M10 18 ZPET100M-MM ZPET100S-MM 250-M12 25 23.2 12.5 45 69 M12 23 ZPET125M-MM ZPET125S-MM 300-M16 30 27.8 17 50 77 M16 27 ZPET150M-MM ZPET150S-MM 320-M16 32 29.8 17 50 77 M16 28 ZPET160M-MM ZPET160S-MM Stock item Available Inserts Internal ZPET-M External Ext. main Ext. main ZPET-S SPMT SPMT-MM Coated Designation NCM325 PC3500 PC5300 PC3545 Page ZPET 080M-MM 090M-MM 100M-MM 110M-MM 125M-MM 130M-MM 140M-MM 150M-MM 160M-MM 200M-MM 250M-MM E23 ZPET 080S-MM 090S-MM 100S-MM 110S-MM 125S-MM 130S-MM 140S-MM 150S-MM 160S-MM 200S-MM 250S-MM SPMT 060304 E20 SDMT 090308-MM E14 SPMT 120408-MM E20 Parts Specification Screw Wrench Cutter Dia. Int./Ext. type Ext. main type Int./Ext. type Ext. main type 016 FTKA02555 - TW08S - 016 020 FTKA0307 ETNA02506 TW09S TW07P 020 025 FTKA0409 ETNA02506 TW15S TW07P 025 030 FTGA0511-P ETNA0408 TW20-100 TW15S 030 032 FTGA0511-P ETNA0408 TW20-100 TW15S 032 5) Available Inserts E14, E20, E23 Designation GBEM320-M16 Modular Head Threading Measure size(M16) ii Adaptor Spec. MAT-M16-035-S32S Adaptor Threading Measure(M16) Milling 245
