630 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.E243

Каталог KORLOY 2016 Инструмент и оснастка Стр. E243 0630 ENG Lab2u

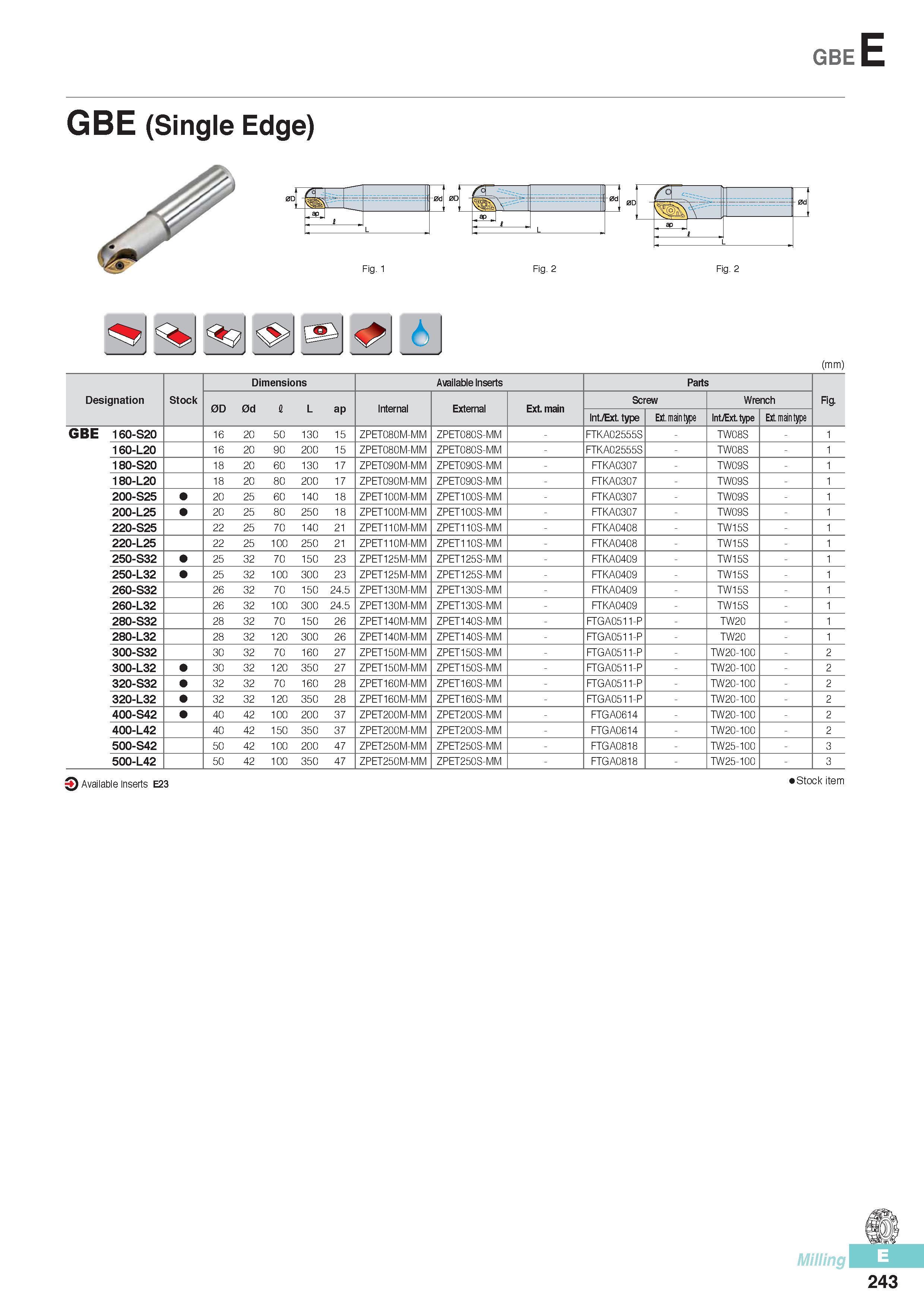

gbeE (mm) Designation Stock Dimensions Available Inserts Parts Fig. 0D 0d I L ap Internal External Ext. main Screw Wrench Int./Ext. type Ext. main type IntTExt. type Ext. main type GBE 160-S20 16 20 50 130 15 ZPET080M-MM ZPET080S-MM FTKA02555S TW08S 1 160-L20 16 20 90 200 15 ZPET080M-MM ZPET080S-MM FTKA02555S TW08S 1 180-S20 18 20 60 130 17 ZPET090M-MM ZPET090S-MM FTKA0307 TW09S 1 180-L20 18 20 80 200 17 ZPET090M-MM ZPET090S-MM FTKA0307 TW09S 1 200-S25 20 25 60 140 18 ZPET100M-MM ZPET100S-MM FTKA0307 TW09S 1 200-L25 20 25 80 250 18 ZPET100M-MM ZPET100S-MM FTKA0307 TW09S 1 220-S25 22 25 70 140 21 ZPET110M-MM ZPET110S-MM FTKA0408 TW15S 1 220-L25 22 25 100 250 21 ZPET110M-MM ZPET110S-MM FTKA0408 TW15S 1 250-S32 25 32 70 150 23 ZPET125M-MM ZPET125S-MM FTKA0409 TW15S 1 250-L32 25 32 100 300 23 ZPET125M-MM ZPET125S-MM FTKA0409 TW15S 1 260-S32 26 32 70 150 24.5 ZPET130M-MM ZPET130S-MM FTKA0409 TW15S 1 260-L32 26 32 100 300 24.5 ZPET130M-MM ZPET130S-MM FTKA0409 TW15S 1 280-S32 28 32 70 150 26 ZPET140M-MM ZPET140S-MM FTGA0511-P TW20 1 280-L32 28 32 120 300 26 ZPET140M-MM ZPET140S-MM FTGA0511-P TW20 1 300-S32 30 32 70 160 27 ZPET150M-MM ZPET150S-MM FTGA0511-P TW20-100 2 300-L32 30 32 120 350 27 ZPET150M-MM ZPET150S-MM FTGA0511-P TW20-100 2 320-S32 32 32 70 160 28 ZPET160M-MM ZPET160S-MM FTGA0511-P TW20-100 2 320-L32 32 32 120 350 28 ZPET160M-MM ZPET160S-MM FTGA0511-P TW20-100 2 400-S42 40 42 100 200 37 ZPET200M-MM ZPET200S-MM FTGA0614 TW20-100 2 400-L42 40 42 150 350 37 ZPET200M-MM ZPET200S-MM FTGA0614 TW20-100 2 500-S42 50 42 100 200 47 ZPET250M-MM ZPET250S-MM FTGA0818 TW25-100 3 500-L42 50 42 100 350 47 ZPET250M-MM ZPET250S-MM FTGA0818 TW25-100 3 Available Inserts E23 Stock item 243
